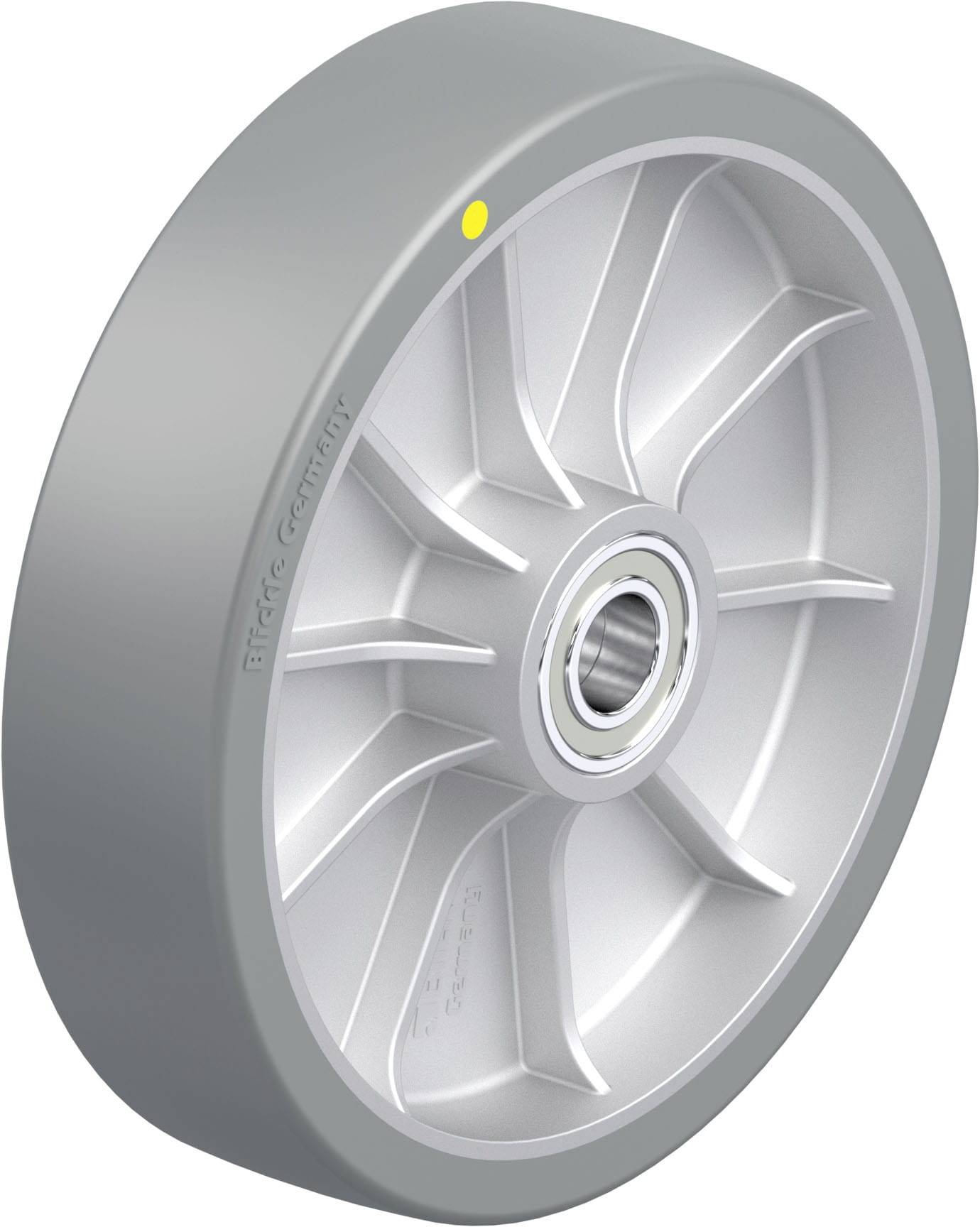

Blickle 936592 ALTH 252/25K-AS Heavy duty caster Wheel diameter: 250 mm Load capacity (max.): 1250 kg 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Load capacity at 4 km/h: 1250 kg
- Material wheel body: Aluminum die casting
- Material: Polyurethane lining
- Colour run lining: Grey
- Colour wheel body: Silver gray
- Temperature resistance up to 70 °C
- Temperature resistance min -20 oC
- Coating hardness 92 Shore A
- Without a trace: Yes
- Anti-static: Yes
- Electrically conductive: No.
- No discoloration of contact: Yes
- Stainless steel: No.
- Heat resistant: No.
- Autoclave-compatible: No.
- Resistant to hydrolysis: No.
- Product type
Heavy duty caster
- Wheel Ø
250 mm
- Load capacity (max.)
1250 kg
- Axle hole diameter
25 mm
- Wheel width
60 mm
- Bearing type
Ball bearing
- Material
Polyurethane
- Factory colour
Grey
- Content
1 pc(s)
- Hub length
70 mm
- Weight
2.6 kg
Documents & Downloads
Datasheet
Datasheet 3049973 Blickle 936592 ALTH 252/25K-AS Heavy duty caster Wheel diameter: 250 mm Load capacity (max.): 1250 kg 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3049973 Blickle 936592 ALTH 252/25K-AS Heavy duty caster Wheel diameter: 250 mm Load capacity (max.): 1250 kg 1 pc(s)
Description
Heavy-duty wheel with polyurethane tread Blickle Extrathane®, with aluminum wheel body, anti-static
Coating:
• High-quality polyurethane elastomer Blickle Extrathane®, hardness 92 shore A
• Low rolling resistance
• very abrasion-resistant
• High cutting and tear resistance
• Colour gray, trackless, contact-free
excellent chemical connection with the wheel bodies
Wheel body:
• Diecast aluminum
Other properties:
• High chemical resistance to many aggressive media
• Temperature resistance: -20 °C to +70 ° C, short term to +90 °C, reduced load capacity above +40 °C.
• Electrical leakage (ohmic resistance) ≤ 107 Ω
• With heavy wheel body, center stage design
This text is machine translated.
Coating:
• High-quality polyurethane elastomer Blickle Extrathane®, hardness 92 shore A
• Low rolling resistance
• very abrasion-resistant
• High cutting and tear resistance
• Colour gray, trackless, contact-free
excellent chemical connection with the wheel bodies
Wheel body:
• Diecast aluminum
Other properties:
• High chemical resistance to many aggressive media
• Temperature resistance: -20 °C to +70 ° C, short term to +90 °C, reduced load capacity above +40 °C.
• Electrical leakage (ohmic resistance) ≤ 107 Ω
• With heavy wheel body, center stage design
This text is machine translated.
