Blickle 937380 LPA-GSPO 35K-RA Equipment swivel wheel Wheel diameter: 35 mm Load capacity (max.): 100 kg 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Load capacity at 3 km/h: 100 kg
- Load capacity at 4 km/h: 100 kg
- Wheel body material: High-quality cast polyamide
- Material run lining: Plastic
- Colour: Carpet, natural-beige
- Colour wheel body: Natural beige
- Temperature resistance up to 80 °C
- Temperature resistance min -20 oC
- Coating hardness 80 shore D.
- Without a trace: Yes
- Anti-static: No.
- Stainless steel: No.
- Heat resistant: No.
- Autoclave-compatible: No.
- Resistant to hydrolysis: No.
- Mounting type: Screw-on plate
- Related Steering Wheel: LPA-GSPO 35K
- Associated wheel: GSPO 35/8K
- Product type
Equipment swivel wheel

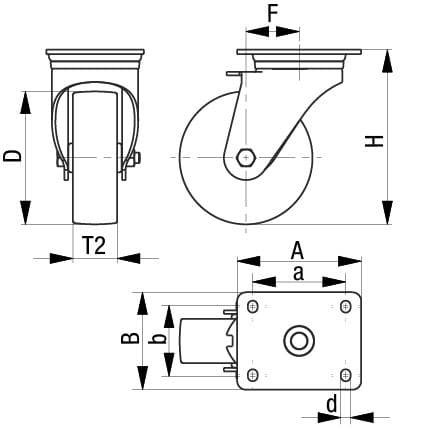

- Wheel Ø
35 mm
- Load capacity (max.)
100 kg
- Total height
52 mm
- Size
60 x 60 mm
- Wheel width
28 mm
- Bearing type
Ball bearing
- Material
Plastic
- Factory colour
Ecru beige
- Content
1 pc(s)
- Weight
0.228 kg
Documents & Downloads
Datasheet
Datasheet 3056369 Blickle 937380 LPA-GSPO 35K-RA Equipment swivel wheel Wheel diameter: 35 mm Load capacity (max.): 100 kg 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3056369 Blickle 937380 LPA-GSPO 35K-RA Equipment swivel wheel Wheel diameter: 35 mm Load capacity (max.): 100 kg 1 pc(s)
Description

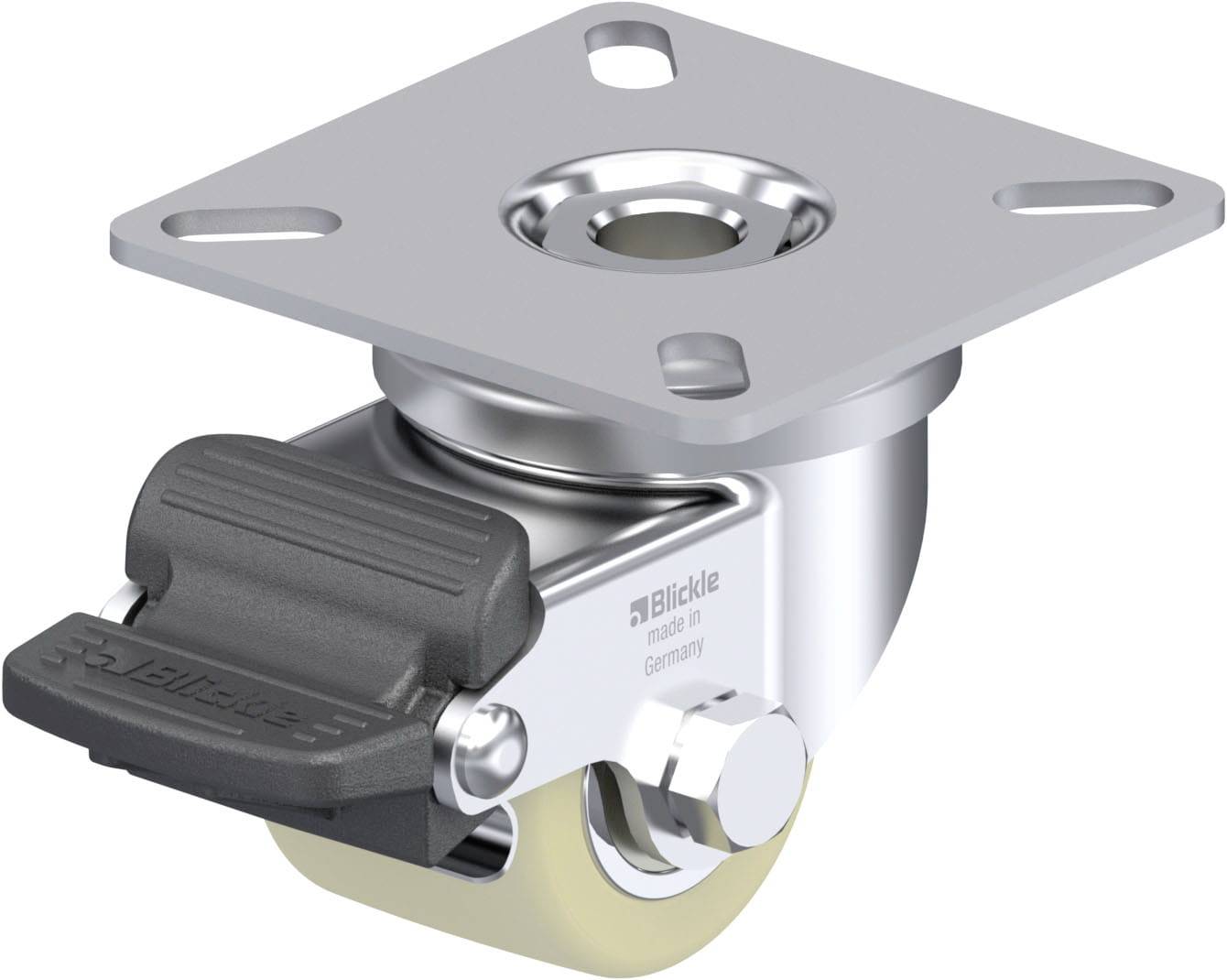

Equipment steering roller with screw-on plate, with 'wheel stop' stopper,
Heavy load wheel made of cast polyamide
Housing: LPA series
• Sheet steel, galvanized, blue passivated, Cr6-free
• Double ball bearing in rotating assembly
• Stable center bolts
• Minimum rotating assembly play, smooth running, long service life thanks to the special dynamic Blickle riveting
Wheel: GSPO series
• High quality cast polyamide, reaction cast, break resistant, hardness 80 shore D, color natural beige
Other properties:
• High chemical resistance to many aggressive media
• Reduced moisture absorption
• Temperature resistance: -20 °C to +80 ° C, reduced load capacity at over +35 °C.
• For pressure-sensitive floors, observe surface pressure
• Testing according to DIN EN 12530 with extended break times in order to avoid thermal overload
This text is machine translated.
Heavy load wheel made of cast polyamide
Housing: LPA series
• Sheet steel, galvanized, blue passivated, Cr6-free
• Double ball bearing in rotating assembly
• Stable center bolts
• Minimum rotating assembly play, smooth running, long service life thanks to the special dynamic Blickle riveting
Wheel: GSPO series
• High quality cast polyamide, reaction cast, break resistant, hardness 80 shore D, color natural beige
Other properties:
• High chemical resistance to many aggressive media
• Reduced moisture absorption
• Temperature resistance: -20 °C to +80 ° C, reduced load capacity at over +35 °C.
• For pressure-sensitive floors, observe surface pressure
• Testing according to DIN EN 12530 with extended break times in order to avoid thermal overload
This text is machine translated.
