Blickle 937381 L-VSTH 60K-RA Sheet metal swivel wheel Wheel diameter: 60 mm Load capacity (max.): 200 kg 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Load capacity at 3 km/h: 200 kg
- Load capacity at 4 km/h: 200 kg
- Material wheel body: Steel
- Material: Polyurethane lining
- Colour: Running surface: Light brown
- Colour wheel body: Silver
- Temperature resistance up to 70 °C
- Temperature resistance min -20 oC
- Coating hardness 92 Shore A
- Without a trace: Yes
- Anti-static: No.
- Stainless steel: No.
- Heat resistant: No.
- Autoclave-compatible: No.
- Resistant to hydrolysis: No.
- Mounting type: Screw-on plate
- Accompanying steering roller: L-VSTH 60K
- Associated wheel: VSTH 60/15K
- Accompanying trestle roller: B-VSTH 60K
- Product type
Sheet metal swivel wheel

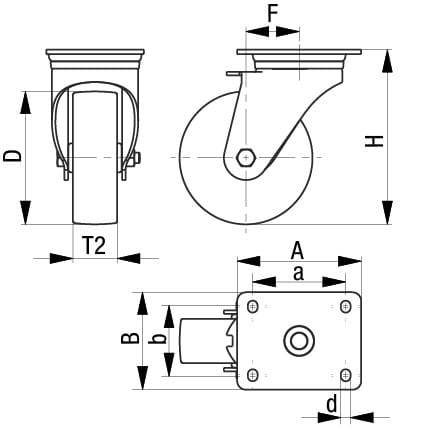

- Wheel Ø
60 mm
- Load capacity (max.)
200 kg
- Total height
80 mm
- Size
100 x 85 mm
- Wheel width
35 mm
- Bearing type
Ball bearing
- Material
Polyurethane
- Factory colour
Light brown
- Content
1 pc(s)
- Weight
0.815 kg
Documents & Downloads
Datasheet
Datasheet 3058428 Blickle 937381 L-VSTH 60K-RA Sheet metal swivel wheel Wheel diameter: 60 mm Load capacity (max.): 200 kg 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3058428 Blickle 937381 L-VSTH 60K-RA Sheet metal swivel wheel Wheel diameter: 60 mm Load capacity (max.): 200 kg 1 pc(s)
Description

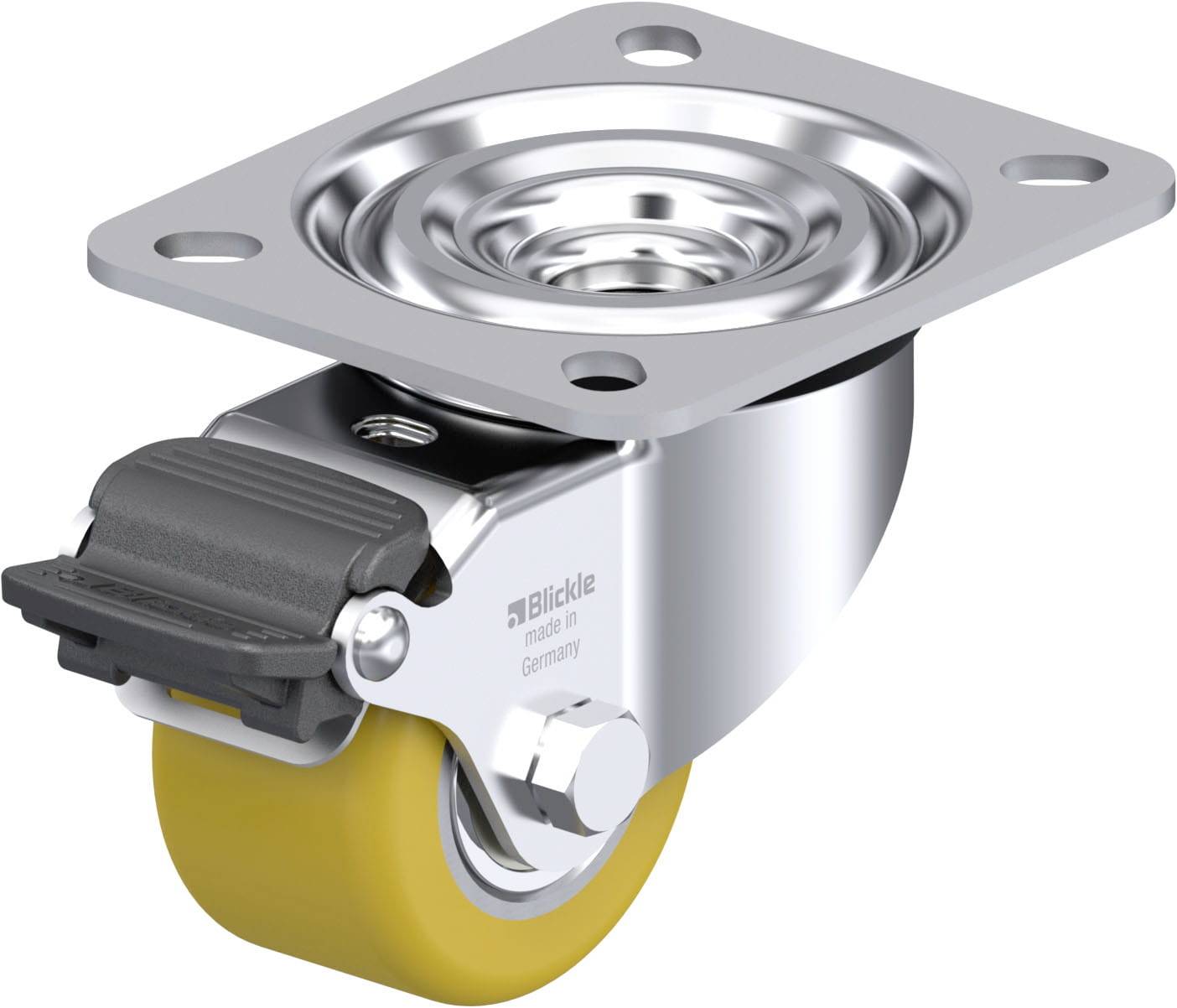

Steel sheet swivel castor, medium-heavy design, with mounting plate, with locking device 'Radstop',
Heavy-duty wheel with polyurethane tread Blickle Extrathane®, with steel wheel body
Housing: Series L
• Sheet steel, galvanized, blue passivated, Cr6-free

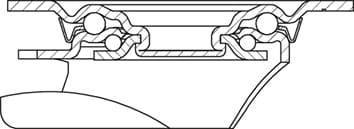

• Double ball bearing in rotating assembly
• Stable central bolts (from wheel Ø 150 mm)
• Rotating assembly sealing
• Minimum rotating assembly play, smooth running, long service life thanks to the special dynamic Blickle riveting
Wheel: Series VSTH
• Coating: High-quality polyurethane elastomer Blickle Extrathane®, hardness 92 shore A, light brown color, trackless, contact-free
• Wheel body: Steel
Other properties:
• High chemical resistance to many aggressive media
• Temperature resistance: -20 °C to +70 ° C, short term to +90 °C, reduced load capacity above +40 °C.
This text is machine translated.
Heavy-duty wheel with polyurethane tread Blickle Extrathane®, with steel wheel body
Housing: Series L
• Sheet steel, galvanized, blue passivated, Cr6-free
• Double ball bearing in rotating assembly
• Stable central bolts (from wheel Ø 150 mm)
• Rotating assembly sealing
• Minimum rotating assembly play, smooth running, long service life thanks to the special dynamic Blickle riveting
Wheel: Series VSTH
• Coating: High-quality polyurethane elastomer Blickle Extrathane®, hardness 92 shore A, light brown color, trackless, contact-free
• Wheel body: Steel
Other properties:
• High chemical resistance to many aggressive media
• Temperature resistance: -20 °C to +70 ° C, short term to +90 °C, reduced load capacity above +40 °C.
This text is machine translated.
