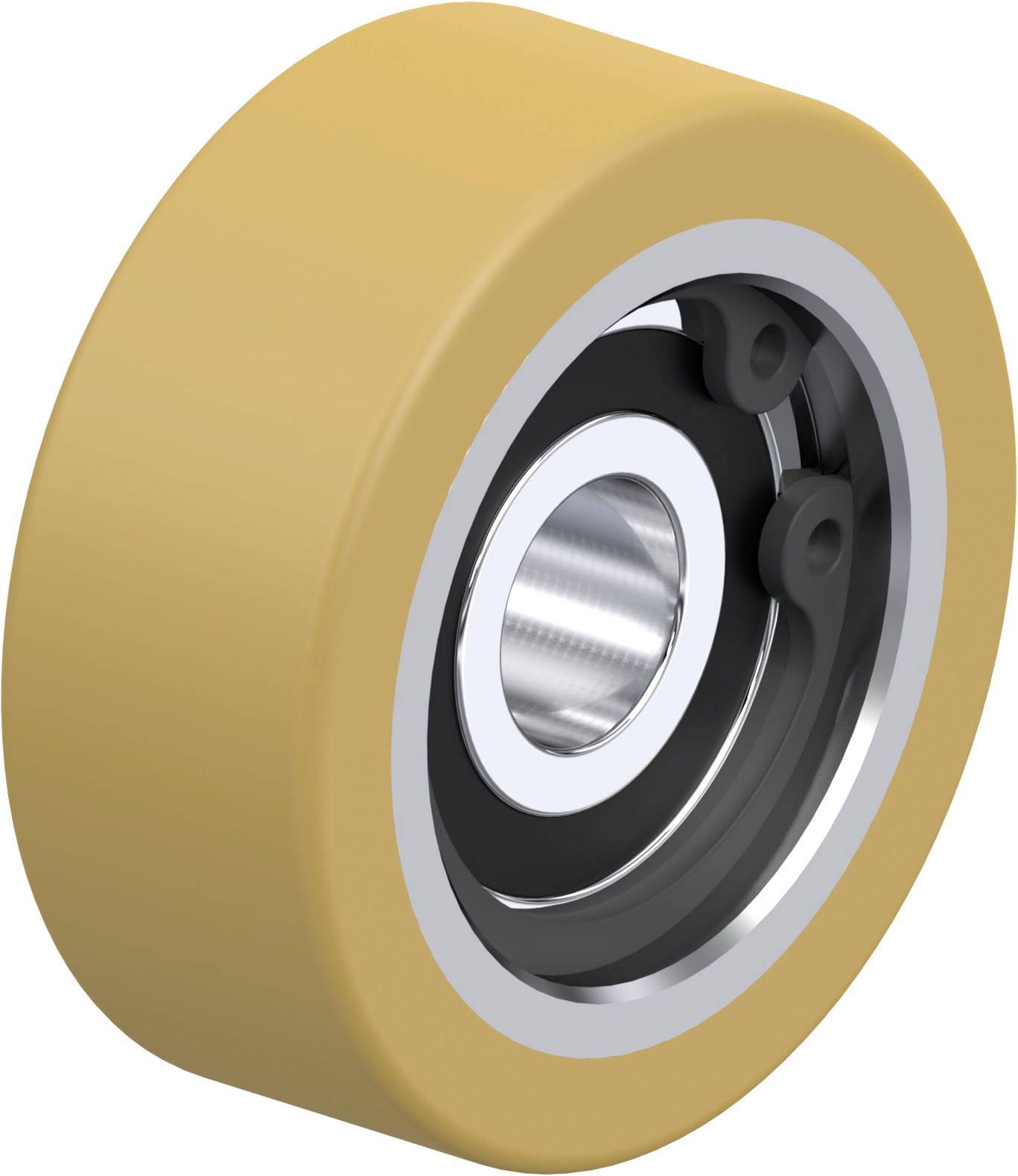

Blickle 937383 FSVU 40x15/10-8K Guide wheel Wheel diameter: 40 mm Load capacity (max.): 70 kg 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Load capacity at 4 km/h: 70 kg
- Material wheel body: Steel
- Material: Polyurethane lining
- Colour run lining: Natural
- Temperature resistance up to 70 °C
- Temperature resistance min -20 oC
- Coating hardness 92 Shore A
- Without a trace: Yes
- Anti-static: No.
- Electrically conductive: No.
- No discoloration of contact: Yes
- Stainless steel: No.
- Heat resistant: No.
- Autoclave-compatible: No.
- Resistant to hydrolysis: No.
- Length of span: 8 mm
- Product type
Guide wheel
- Wheel Ø
40 mm
- Load capacity (max.)
70 kg
- Axle hole diameter
10 mm
- Wheel width
15 mm
- Bearing type
Ball bearing
- Material
Polyurethane
- Factory colour
Ecru
- Content
1 pc(s)
- Weight
0.062 kg
Documents & Downloads
Datasheet
Datasheet 3051269 Blickle 937383 FSVU 40x15/10-8K Guide wheel Wheel diameter: 40 mm Load capacity (max.): 70 kg 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3051269 Blickle 937383 FSVU 40x15/10-8K Guide wheel Wheel diameter: 40 mm Load capacity (max.): 70 kg 1 pc(s)
Description
Guide wheels with Vulkollan® tread, with steel wheel body
Coating:
• High quality polyurethane elastomer Vulkollan®, hardness 92 Shore A.
• Low rolling resistance
• High dynamic load capacity
• very abrasion-resistant
• High cutting and tear resistance
• Colour natural, trackless, contact-free
excellent chemical connection with the wheel bodies
Wheel body:
• Steel
Other properties:
• High chemical resistance to many aggressive media
• Temperature resistance: -20 °C to +70 ° C, short term to +90 °C, reduced load capacity above +40 °C.
• Load capacity specifications refer to applications without obstacles
• VULKOLLAN® is a registered trademark of Covestro Group
This text is machine translated.
Coating:
• High quality polyurethane elastomer Vulkollan®, hardness 92 Shore A.
• Low rolling resistance
• High dynamic load capacity
• very abrasion-resistant
• High cutting and tear resistance
• Colour natural, trackless, contact-free
excellent chemical connection with the wheel bodies
Wheel body:
• Steel
Other properties:
• High chemical resistance to many aggressive media
• Temperature resistance: -20 °C to +70 ° C, short term to +90 °C, reduced load capacity above +40 °C.
• Load capacity specifications refer to applications without obstacles
• VULKOLLAN® is a registered trademark of Covestro Group
This text is machine translated.
