Blickle 937580 DSPK 75/15K Flanged twin wheel caster Wheel diameter: 75 mm Load capacity (max.): 250 kg 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Load capacity at 4 km/h: 250 kg
- Wheel body material: Hardened steel
- Material run lining: Metal
- Colour run lining: Silver
- Temperature resistance up to 120 °C
- Temperature resistance min -20 oC
- Coating hardness 190–230 HB
- Without a trace: Yes
- Anti-static: No.
- Electrically conductive: Yes
- No discoloration of contact: Yes
- Stainless steel: No.
- Heat resistant: No.
- Autoclave-compatible: No.
- Resistant to hydrolysis: No.
- Product type
Flanged twin wheel caster

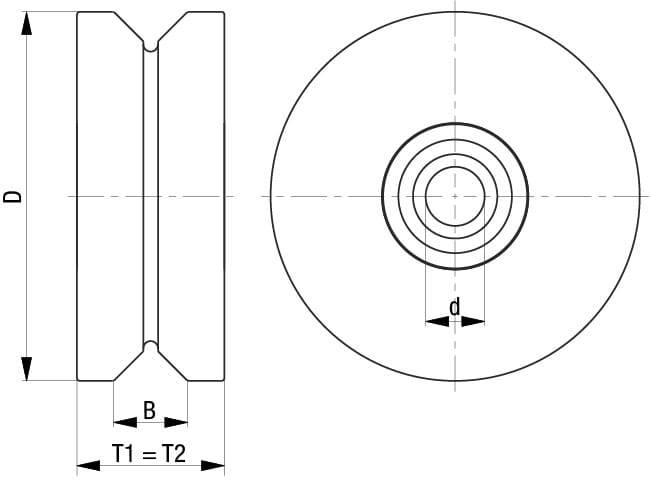

- Wheel Ø
75 mm
- Load capacity (max.)
250 kg
- Axle hole diameter
15 mm
- Wheel width
22 mm
- Bearing type
Ball bearing
- Material
Metal
- Factory colour
Silver
- Content
1 pc(s)
- Hub length
22 mm
- Weight
0.568 kg
Documents & Downloads
Datasheet
Datasheet 3051260 Blickle 937580 DSPK 75/15K Flanged twin wheel caster Wheel diameter: 75 mm Load capacity (max.): 250 kg 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3051260 Blickle 937580 DSPK 75/15K Flanged twin wheel caster Wheel diameter: 75 mm Load capacity (max.): 250 kg 1 pc(s)
Description
Double steering wheel made of solid steel
Wheel:
• Quenched steel, rotated, hardness 190–230 HB
• Lightly oiled surface
• V-shaped bearing surface (for angular steel)
• Extremely low rolling resistance
• extremely resistant to wear
• Particularly high static and dynamic load-carrying capacity
Other properties:
• Chemical resistance to many aggressive media
• Temperature resistance: --20°C to +120 °C.
• For pressure-sensitive floors, observe surface pressure
• Electrical leakage (ohmic resistance) ≤ 104 Ω
This text is machine translated.
