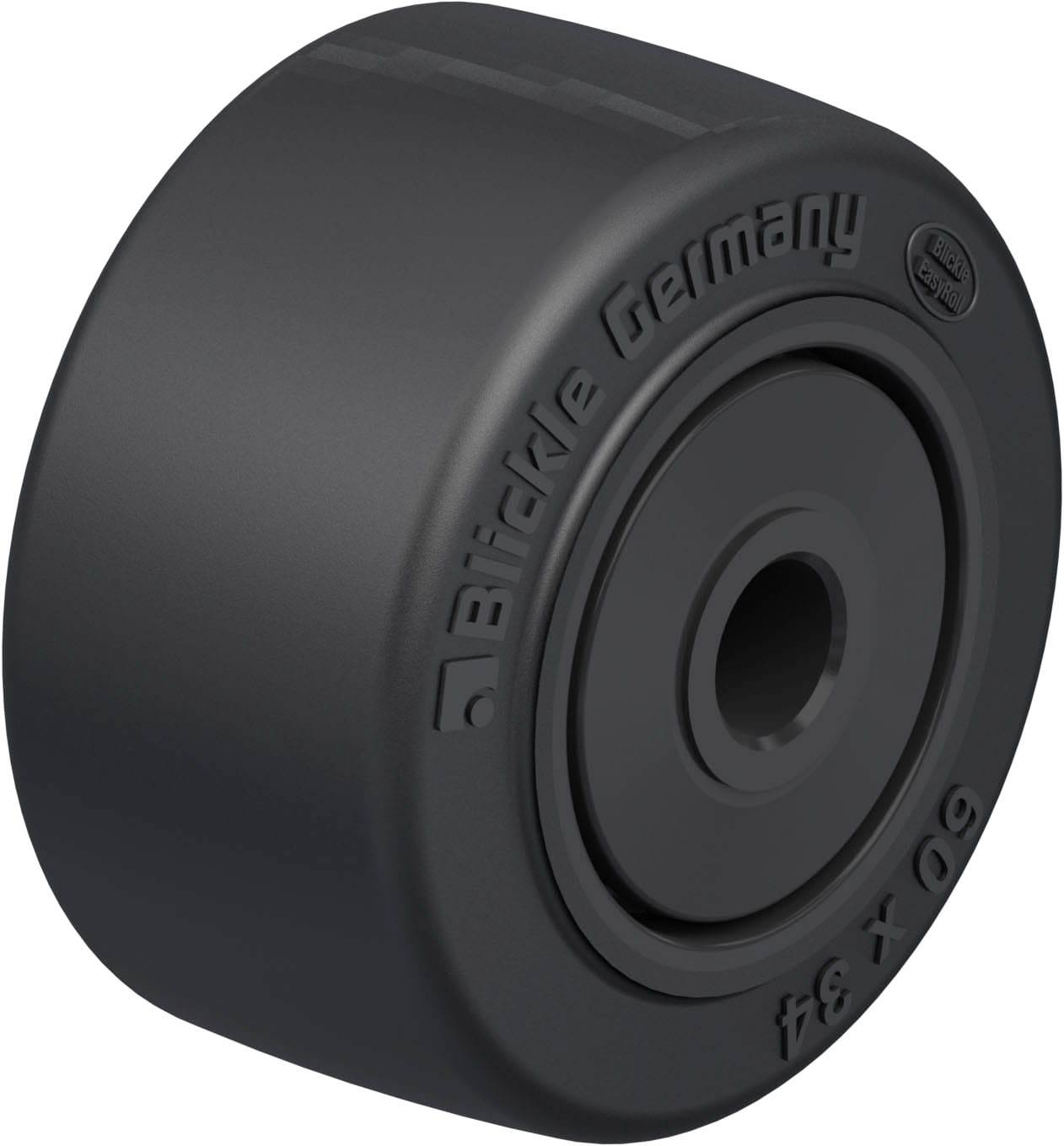

Blickle 942941 POEV 60/10KF Heavy duty caster Wheel diameter: 60 mm Load capacity (max.): 200 kg 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Load capacity at 4 km/h: 200 kg
- Material wheel body: High-quality polyamide 6
- Material run lining: Rubber
- Colour: Running coating black
- Colour wheel body: Black
- Temperature resistance up to 80 °C
- Temperature resistance min -20 oC
- Coating hardness 65 Shore A
- Without a trace: No.
- Anti-static: No.
- Electrically conductive: No.
- No discoloration of contact
- Stainless steel: No.
- Heat resistant: No.
- Autoclave-compatible: No.
- Resistant to hydrolysis: No.
- Product type
Heavy duty caster
- Wheel Ø
60 mm
- Load capacity (max.)
200 kg
- Axle hole diameter
10 mm
- Wheel width
34 mm
- Bearing type
Ball bearing
- Material
Rubber
- Factory colour
Black
- Content
1 pc(s)
- Hub length
36 mm
- Weight
0.145 kg
Documents & Downloads
Datasheet
Datasheet 3058765 Blickle 942941 POEV 60/10KF Heavy duty caster Wheel diameter: 60 mm Load capacity (max.): 200 kg 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3058765 Blickle 942941 POEV 60/10KF Heavy duty caster Wheel diameter: 60 mm Load capacity (max.): 200 kg 1 pc(s)
Description
Heavy-duty wheel with elastic solid tires 'Blickle Easy Roll', with polyamide wheel body, with thread protection made from plastic, large
Tyres:
• High-quality elastic solid rubber "Blickle EasyRoll" in light running quality, hardness 65 shore A
• Very high driving comfort
• Very gentle on the ground, low-noise operation
• Low rolling resistance
• Colour black
• Vulcanized on the wheel body
Wheel body:
• High-quality polyamide 6, unbreakable
• Colour black
Other properties:
• With thread protection made of plastic, large
• High chemical resistance to many aggressive media, but not to oils
• Temperature resistance: -20 °C to +80 ° C, short-term to +100 °C, reduced load capacity above +35 °C.
This text is machine translated.
Tyres:
• High-quality elastic solid rubber "Blickle EasyRoll" in light running quality, hardness 65 shore A
• Very high driving comfort
• Very gentle on the ground, low-noise operation
• Low rolling resistance
• Colour black
• Vulcanized on the wheel body
Wheel body:
• High-quality polyamide 6, unbreakable
• Colour black
Other properties:
• With thread protection made of plastic, large
• High chemical resistance to many aggressive media, but not to oils
• Temperature resistance: -20 °C to +80 ° C, short-term to +100 °C, reduced load capacity above +35 °C.
This text is machine translated.
