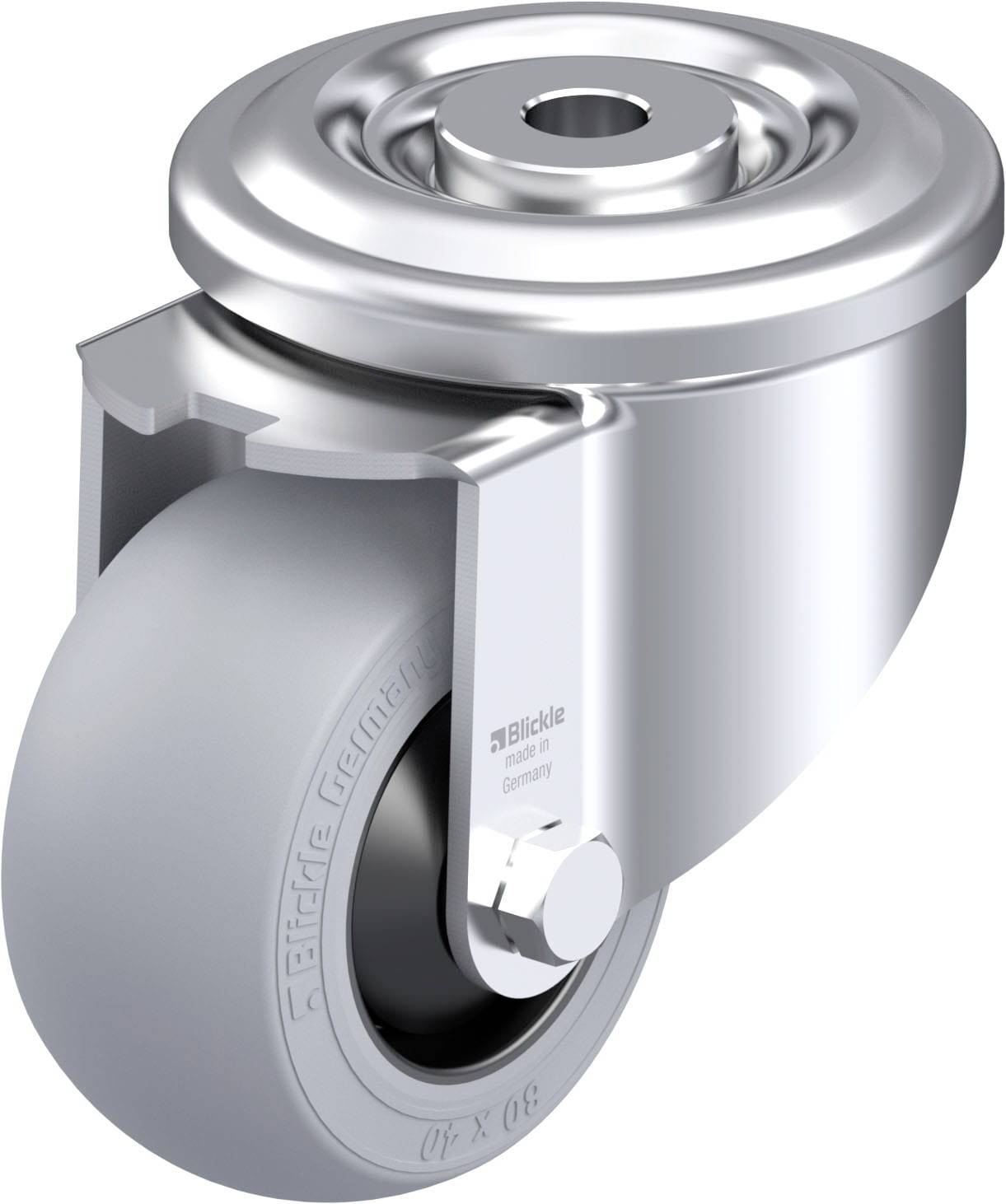

Blickle 946459 LKR-POES 80KF-SG Sheet metal swivel wheel Wheel diameter: 80 mm Load capacity (max.): 110 kg 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Load capacity at 4 km/h: 110 kg
- Material wheel body: High-quality polyamide 6
- Material run lining: Rubber
- Colour run lining: Grey
- Colour wheel body: Black
- Temperature resistance up to 80 °C
- Temperature resistance min -20 oC
- Coating hardness 55 Shore A
- Without a trace: Yes
- Anti-static: No.
- Stainless steel: No.
- Heat resistant: No.
- Autoclave-compatible: No.
- Resistant to hydrolysis: No.
- Mounting type: Rear hole

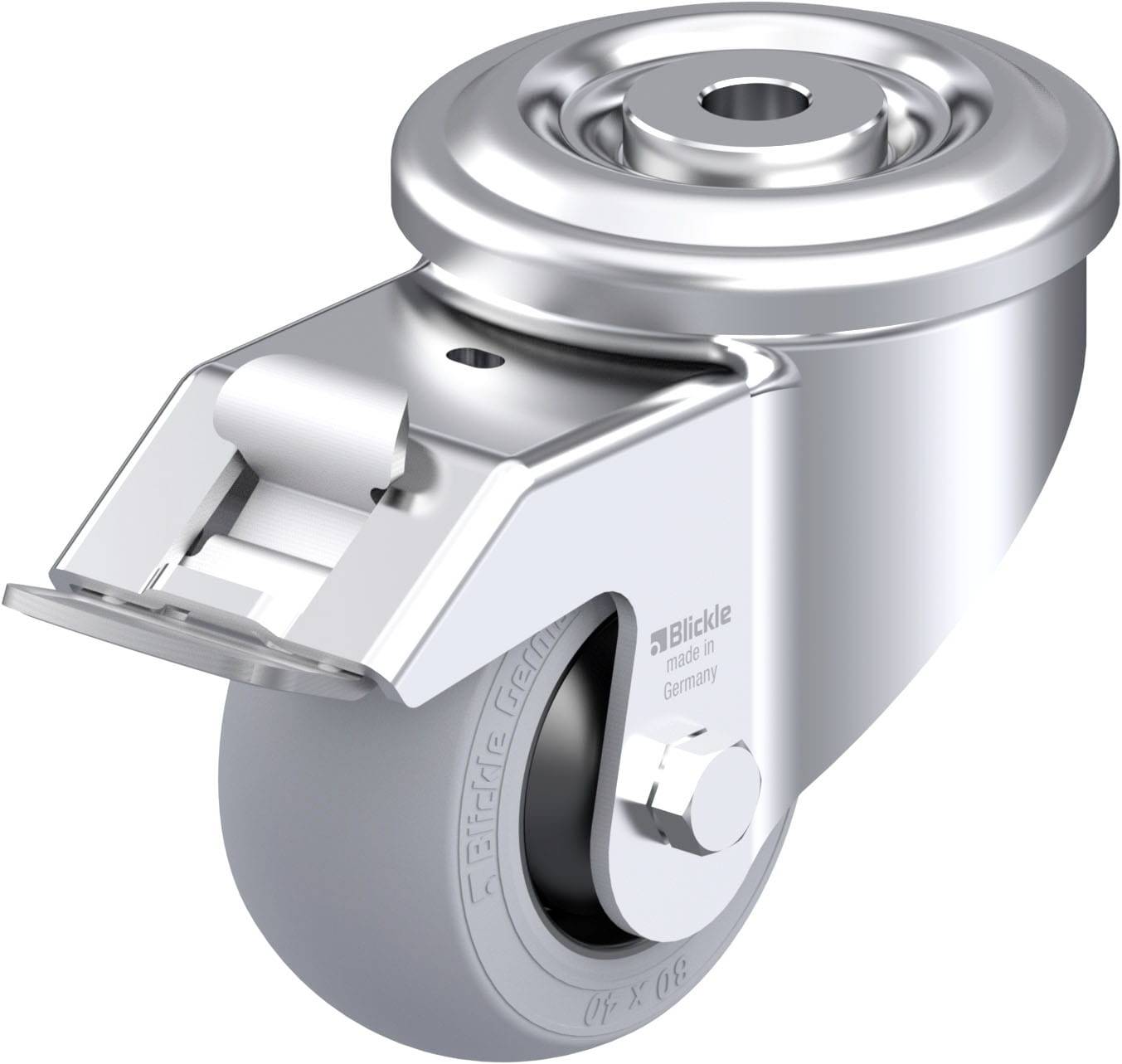

- Related standard detectors: LKR-POES 80KF-FI-SG
- Associated wheel: POES 80/8KF-SG
- Product type
Sheet metal swivel wheel
- Wheel Ø
80 mm
- Load capacity (max.)
110 kg
- Total height
110 mm
- Size
88 mm
- Wheel width
40 mm
- Bearing type
Ball bearing
- Material
Rubber
- Factory colour
Grey
- Content
1 pc(s)
- Weight
0.921 kg
Documents & Downloads
Datasheet
Datasheet 3056159 Blickle 946459 LKR-POES 80KF-SG Sheet metal swivel wheel Wheel diameter: 80 mm Load capacity (max.): 110 kg 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3056159 Blickle 946459 LKR-POES 80KF-SG Sheet metal swivel wheel Wheel diameter: 80 mm Load capacity (max.): 110 kg 1 pc(s)
Description
Steel sheet swivel castor, heavy design, with reverse lock
Wheel with soft rubber tires 'Blickle SoftMotion', with polyamide wheel body, trackless gray, with thread protection made from plastic, large
Housing: Series LER
• Sheet steel, galvanized, blue passivated, Cr6-free

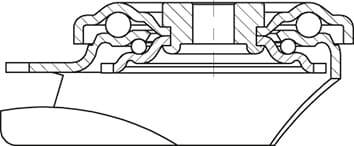

• Double ball bearing in rotating assembly
• Stable center bolts
• Minimum rotating assembly play, smooth running, long service life thanks to the special dynamic Blickle riveting
Wheel: Series POES
• Tyres: High-quality elastic solid rubber "Blickle SoftMotion", hardness 55 shore A, color gray, trackless
• Wheel body: High-quality polyamide 6, break-proof, color black
Other properties:
• With thread protection made of plastic, large
• High chemical resistance to many aggressive media, but not to oils
• Temperature resistance: -20 °C to +80 ° C, short-term to +100 °C, reduced load capacity above +35 °C.
