Blickle 952543 VSVU 150/20H7 Heavy-duty support wheel Wheel diameter: 150 mm Load capacity (max.): 800 kg 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Load capacity at 4 km/h: 800 kg
- Wheel body material: Hardened steel
- Material: Polyurethane lining
- Colour run lining: Natural
- Colour wheel body: Silver
- Temperature resistance up to 70 °C
- Temperature resistance min -30 oC
- Coating hardness 92 Shore A
- Without a trace: Yes
- Anti-static: No.
- Electrically conductive: No.
- No discoloration of contact: Yes
- Stainless steel: No.
- Heat resistant: No.
- Autoclave-compatible: No.
- Resistant to hydrolysis: No.
- Product type
Heavy-duty support wheel

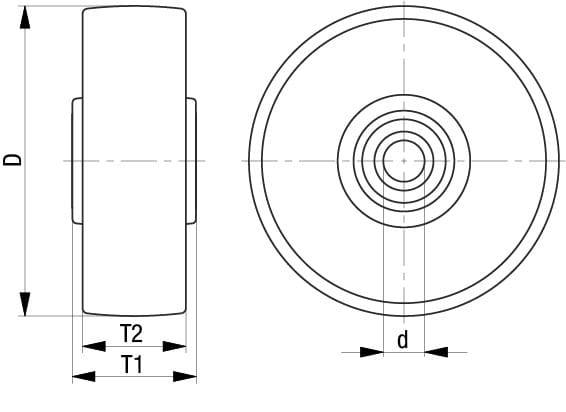

- Wheel Ø
150 mm
- Load capacity (max.)
800 kg
- Axle hole diameter
20 mm
- Wheel width
50 mm
- Bearing type
Axle hole
- Material
Polyurethane
- Factory colour
Ecru
- Content
1 pc(s)
- Hub length
50 mm
- Weight
3.9 kg
Documents & Downloads
Datasheet
Datasheet 3058867 Blickle 952543 VSVU 150/20H7 Heavy-duty support wheel Wheel diameter: 150 mm Load capacity (max.): 800 kg 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3058867 Blickle 952543 VSVU 150/20H7 Heavy-duty support wheel Wheel diameter: 150 mm Load capacity (max.): 800 kg 1 pc(s)
Description
Heavy-duty base wheel with Polyutethan-run lining Vulkollan®, with steel wheel body and through hole
Coating:
• High quality polyurethane elastomer Vulkollan®, hardness 92 Shore A.
• Low rolling resistance
• High dynamic load capacity
• very abrasion-resistant
• High cutting and tear resistance
• Colour natural, trackless, contact-free
excellent chemical connection with the wheel bodies
Wheel body:
• Quenched steel
• Double-sided clamping surface for mechanical machining
Other properties:
• The following points must be observed when machining the base wheels mechanically:
1. The wheel may not exceed a temperature of +90 °C.
2. It must be fastened using the provided clamping surfaces
3. Changes to the running surface lead to a reduction in the load capacity of the wheel
• High chemical resistance to many aggressive media
• Temperature resistance: -30 °C to +70 ° C, short term to +90 °C, reduced load capacity above +40 °C.
• VULKOLLAN® is a registered trademark of Covestro Group
