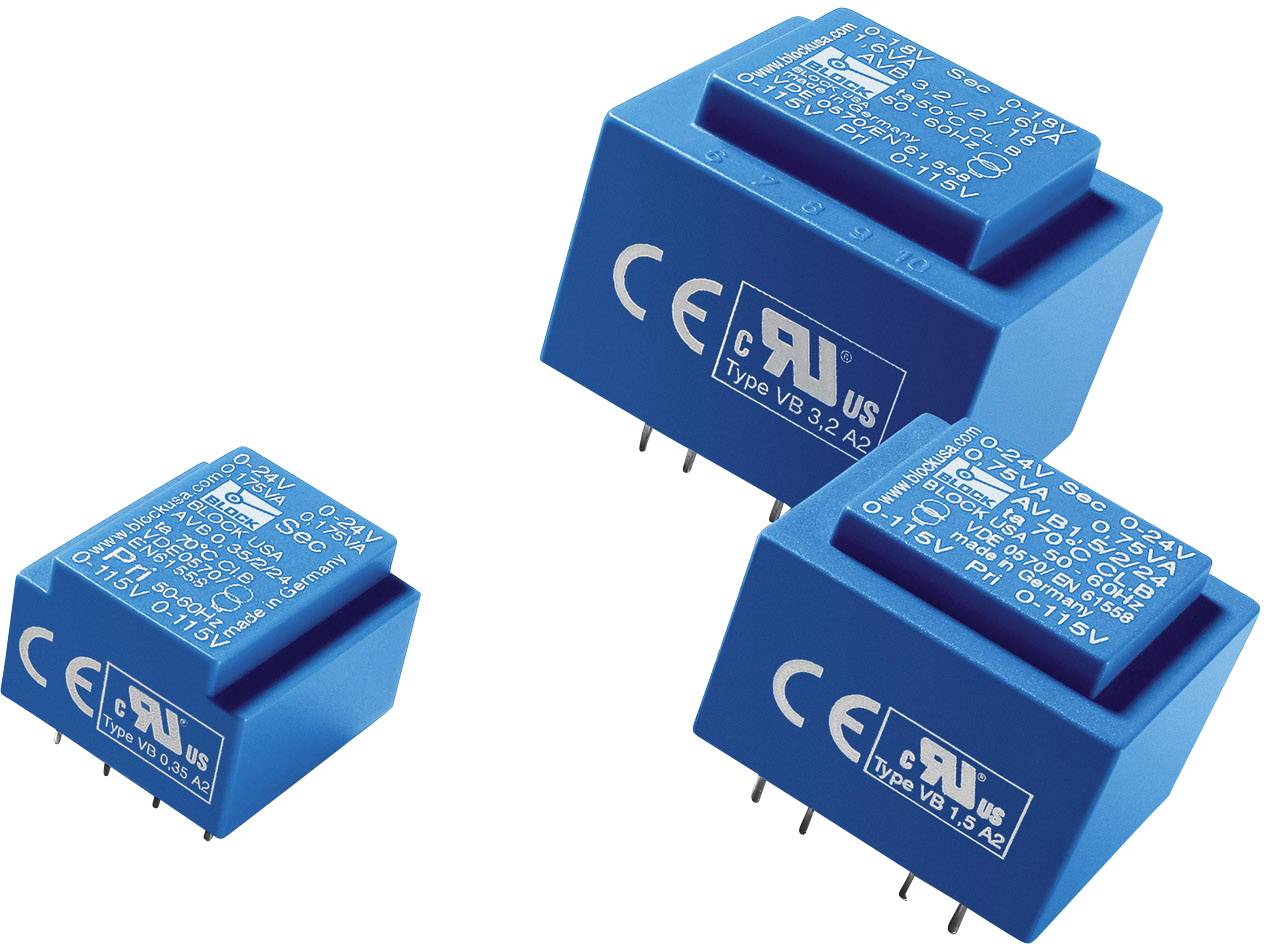

Image similar
BLOCK AVB 1,5/2/18 PCB mount transformer 2 x 115 V 2 x 18 V AC 1.50 VA 40 mA
EAN:
Part number:
Item no:
Highlights & Details
Short-circuit proof PCB transformer AVB
- 2 x 115 V
- 2 x 18 V AC
- 40 mA
- 1.50 VA
Technical specifications
- Product type
PCB mount transformer
- Output voltage
18 V AC
- Output voltage (number x voltage)
2 x 18 V AC
- Output current
40 mA
- No. of inputs
2 x
- No. of outputs
2 x
- Input voltage
115 V
- Input voltage (number x voltage)
2 x 115 V
1.50 VA
- Width
27.3 mm
- Height
23.8 mm
- Length
32.3 mm
- Type
AVB 1,5/2/18
- Dim
(L x W x H) 32.3 x 27.3 x 23.8 mm
- Connection
Soldering
- Content
1 pc(s)
- Insulation class
VDE=B, UL=CLASS 105
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2206977 BLOCK AVB 1,5/2/18 PCB mount transformer 2 x 115 V 2 x 18 V AC 1.50 VA 40 mA
Description
As mains transformer for voltage adjustment and simple electrical separation.
This text is machine translated.
This text is machine translated.
Features
- Minimum size with high power; absolutely short-circuit proof; double input voltage for series or parallel connection
