Buy BLOCK ESG 7 Switch-on current limitation ESG 7 Casing: IP65 / terminals: IP44

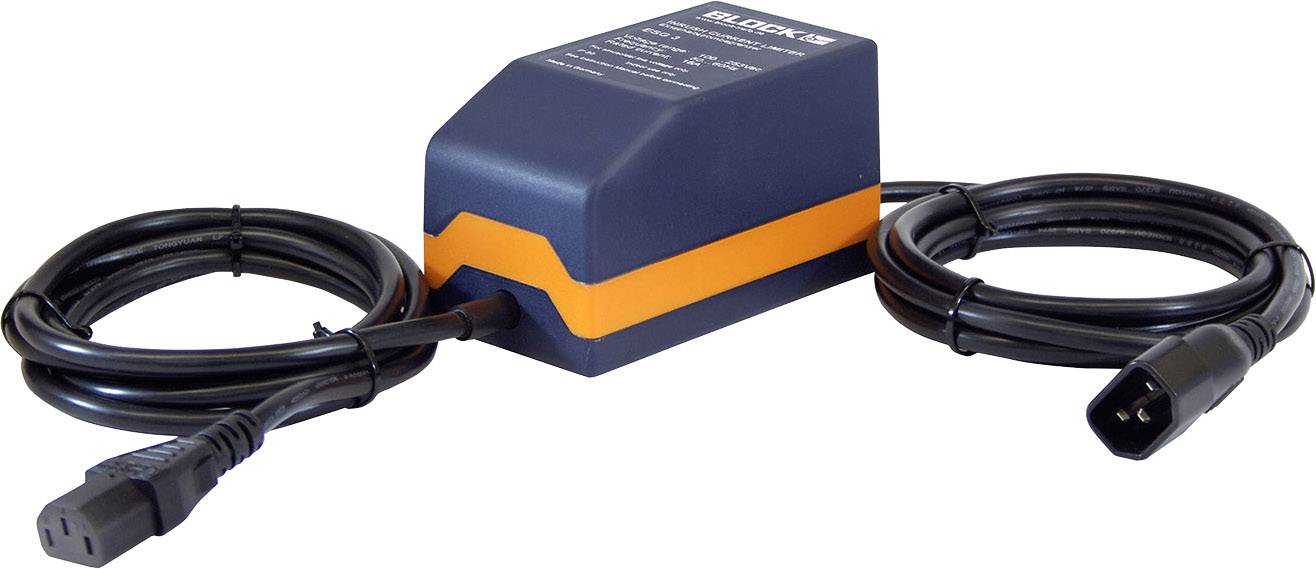

An electronic device with two connected cables, one with a male plug and one with a female plug, on a white background.

Image similar

Datasheet (PDF)

Unavailable

10 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Voltage range 99 - 253 V/AC
Input: Mains connection line with cold-device plug C14 IEC 60321-1
Output: Mains connection with cold device socket C13 IEC 60321-1

Product type: Inrush current limiter

Max. nominal current: 10 A

Input voltage: 230 V AC

: 2300 W

Power rating (max.): 2300 W

Dim: (W x H x D) 66 x 70 x 121 mm

Weight: 750 g

Type A: IEC C14 socket (cooling devices)

Type B: IEC C13 socket (cooling devices)

Width: 66 mm

Height: 70 mm

Depth: 121 mm

: Casing: IP65 / terminals: IP44

Documents & Downloads

Datasheet

Datasheet 2206915 BLOCK ESG 7 Switch-on current limitation ESG 7 Casing: IP65 / terminals: IP44

User & Safety Instructions

User & Safety Instructions 2206915 BLOCK ESG 7 Switch-on current limitation ESG 7 Casing: IP65 / terminals: IP44

Description

Current limiting to the inrush current in power tools, transformers and other consumers with high inrush current or Startup current.

This text is machine translated.

Features

Dynamic limit times for optimal start-up of consumers with high starting currents; Current-led with open-circuit detection, thus full current limitation protection occurs even when the load is switched on for a short time; Very good moisture protection through cast-resin encapsulation XtraDenseFill
