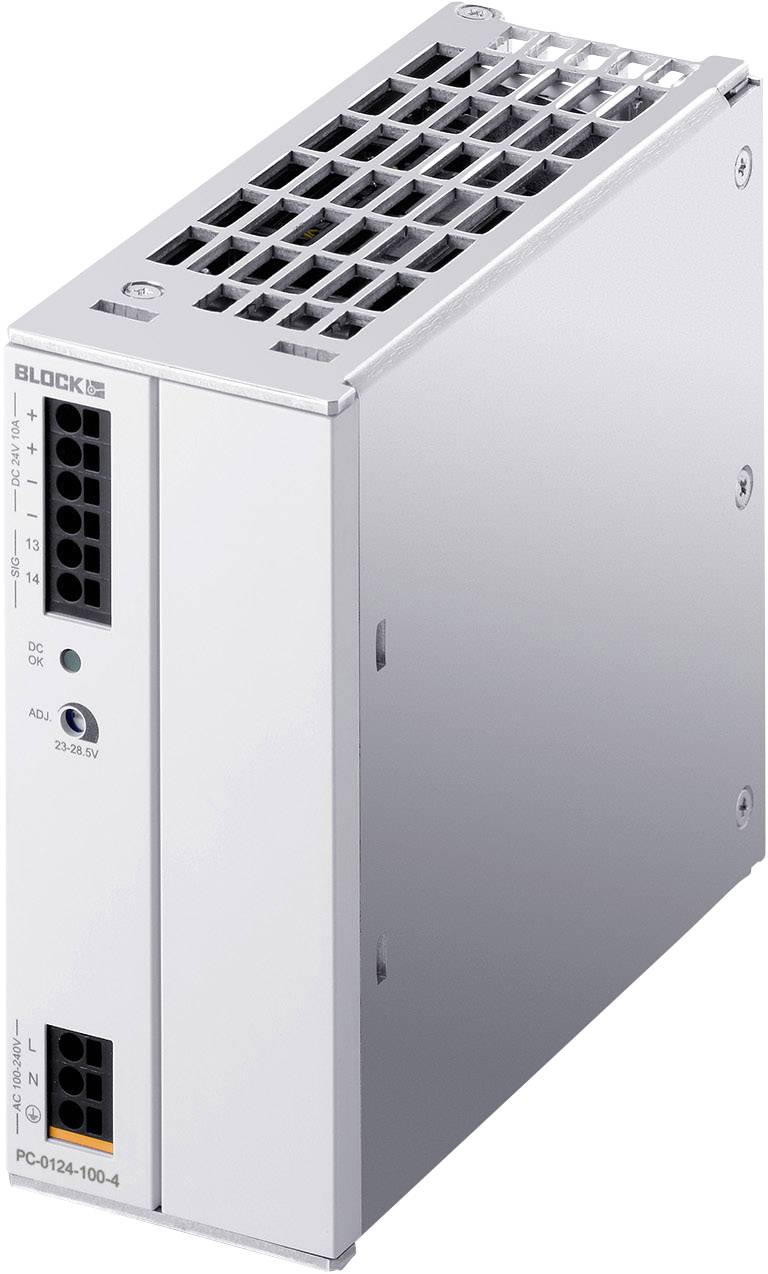

Image similar
BLOCK PC-0124-050-4 Rail mounted PSU (DIN) 24 V DC 5 A 120 W No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Primary getak. Switching network PC-0124-050-4
- Stabilized and adjustable output voltage
- fast triggering of circuit breakers
- DC OK signaling
Technical specifications
- Nominal input voltage
100 - 240 V/AC
- Type
Synchronised
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
85 V AC
- Output voltage
24 V DC
- Input voltage (max.)
264 V AC
- Max. output current
5 A
- Output current (max.) - rounded
5 A
120 W
- Output type (power supply units)
Adjustable
- Phases
1
- Output voltage (nominal)
24 V DC
- No. of outputs
1 x
- Connection
Push-in connector
- Dim
(L x W x H) 136 x 42 x 127 mm
- Weight
650 g
- Output voltage (max.)
27.5 V DC
- Output voltage (min.)
11.8 V DC
- Manufacturer part #
PC-0124-050-4
- Content
1 pc(s)
- MTBF
500000 h
- PSU features
Adjustable voltage output
Regulated
- Width
42 mm
- Height
127 mm
- Length
136 mm
IP20
- Max. temperature
+70 °C
- Min. temperature
-25 °C
- Type
PC-0124-050-4
- Efficiency
89 %
Documents & Downloads
Datasheet
Datasheet 2206896 BLOCK PC-0124-050-4 Rail mounted PSU (DIN) 24 V DC 5 A 120 W No. of outputs:1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2206896 BLOCK PC-0124-050-4 Rail mounted PSU (DIN) 24 V DC 5 A 120 W No. of outputs:1 x Content 1 pc(s)
Description
Power Compact combines the basic functionality of an economic switched-mode power supply with the essential additional features for high plant availability. Strong and flexible in the application and nevertheless light and compact. The all-round power supplies are suitable for a wide range of applications in solar, measurement and control technology and play their strengths particularly in plant and mechanical engineering. The devices cover the average power requirement from 120 W to 480 W. Versions with 12 V, 24 V and 48 V allow a wide range of applications. A version with 5 A nominal current is available for a 1- or 2-phase infeed from 180 V to 550 V. The output voltage can be easily adjusted by means of the rotary potentiometer on the front of the housing. The robust mounting rail mounting and push-in terminals enable quick and secure mounting.
