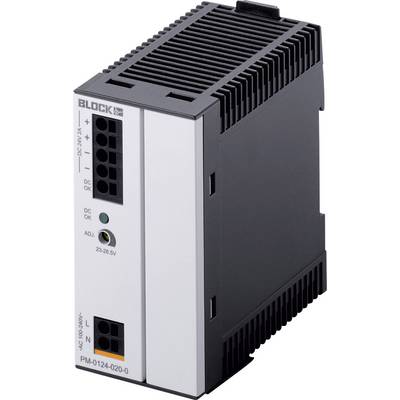

BLOCK PM-0124-020-0 Rail mounted PSU (DIN) 24 V DC 2 A 48 W No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 50.41 / piece)
€ 50.41
plus VAT.
Only 1 Piece(s) available
Highlights & Details
Power Mini: single-phase switching power supply for 24 V DC
- 28.5 V DC/ 2 A
- 48 W Power
- Input1 -phase
- Input voltage range 85 - 264 V/AC
- 120 - 372 V DC
- Connection (components): Push-in connector
- Temperature range -25 - 70 °C
- Stabilised and adjustable output voltage
- Low No-load losses< 1 W
- Constant current limitation
- It can be switched parallel
- DC OK signalling
- Plastic casing
- Push-In connection technology
- Made in Germany
Technical specifications
- Nominal input voltage
100 - 240 V/AC
- Type
Synchronised
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
85 V AC
- Output voltage
24 V DC
- Inputs
1
- Input voltage
85 - 264 V/AC
120 - 372 V DC
- Input voltage (max.)
264 V AC
- Max. output current
2 A
- Output current (max.) - rounded
2 A
48 W
- Output type (power supply units)
Adjustable
- Phases
1
- Output voltage (nominal)
24 V DC
- No. of outputs
1 x
- Connection
Push-in connector
- Dim
(L x W x H) 98 x 45 x 90 mm
- Weight
210 g
- Output voltage (max.)
28.5 V DC
- Output voltage (min.)
23 V DC
- Operating temperature (max.)
70 °C
- Operating temperature (min.)
-25 °C
- Manufacturer part #
PM-0124-020-0
- Content
1 pc(s)
- MTBF
500000 h
- PSU features
Adjustable voltage output
- Width
45 mm
- Height
90 mm
- Length
98 mm
IP20
- Max. temperature
70 °C
- Min. temperature
-25 °C
- Type
PM-0124-020-0
- Efficiency
89 %
Documents & Downloads
Datasheet
Datasheet 414825 BLOCK PM-0124-020-0 Rail mounted PSU (DIN) 24 V DC 2 A 48 W No. of outputs:1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 414825 BLOCK PM-0124-020-0 Rail mounted PSU (DIN) 24 V DC 2 A 48 W No. of outputs:1 x Content 1 pc(s)
Description
Efficient primary switched mode power supply in the slim plastic casing. The Devices ceiling lower and middle performance requirement of 25 W to 100 W.
This text is machine translated.
This text is machine translated.
Features
- Stabilised and adjustable output voltage
- Low No-load losses< 1 W
- Constant current restriction without switching with overload
- DC OK signalling
- It can be switched parallel
- Push-In connection technology
- Safety: EN 60950 (SELV)
- Emc: Noise Immunity EN 61000-6-1, EN 61000-6-2
- Emitted interference EN 61000-6-3, EN 61000-6-4
- Protection IP 20.
