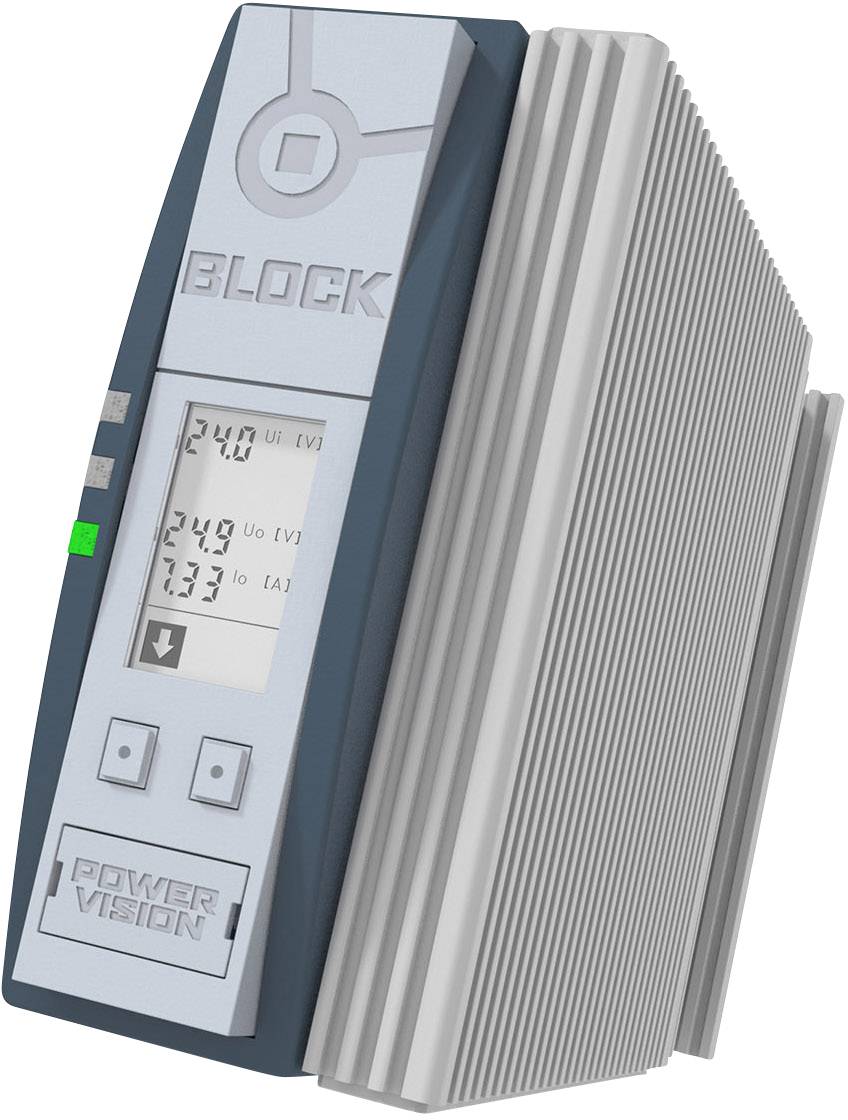

BLOCK PVUA 24/24-20 PVUA 24/24-20 Charger/controller
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Charging and control unit power supply PVUA
- Output voltage 24 Vdc;
- Rated output current 20 A;
- Mounting: DIN mounting rail TS35;
- Protection rating: IP20
- Efficiency: Type. 96.3%;
- Max. Ambient temp.: -10° C to +60° C;
- Weight 0.8kg
- Dimensions (W/H/D): 57x127x163.5mm
Technical specifications
- Product type
Charger/controller
- Nominal power
480 W
- Output voltage (max.)
24 V DC
- Output voltage (min.)
24 V DC
- Dim
(W x H x D) 57 x 127 x 163.50 mm
- Output current (details)
20 A
- Weight
0.8 kg
- Width
57 mm
- Height
127 mm
- Depth
163.50 mm
- Type
PVUA 24/24-20
- Features
LCD
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2206924 BLOCK PVUA 24/24-20 PVUA 24/24-20 Charger/controller
User & Safety Instructions
User & Safety Instructions 2206924 BLOCK PVUA 24/24-20 PVUA 24/24-20 Charger/controller
Description
The charging and control unit controls and monitors the battery module and warns early on with low residual life maintenance of its battery and informs about the charging status and the remaining time during buffer operation. All relevant data can be called up at any time via the integrated display and via the interface.
This text is machine translated.
This text is machine translated.
Features
- Electronic overcurrent and short-circuit protection; active current limitation in the event of a fault; automatic detection of connected battery modules
