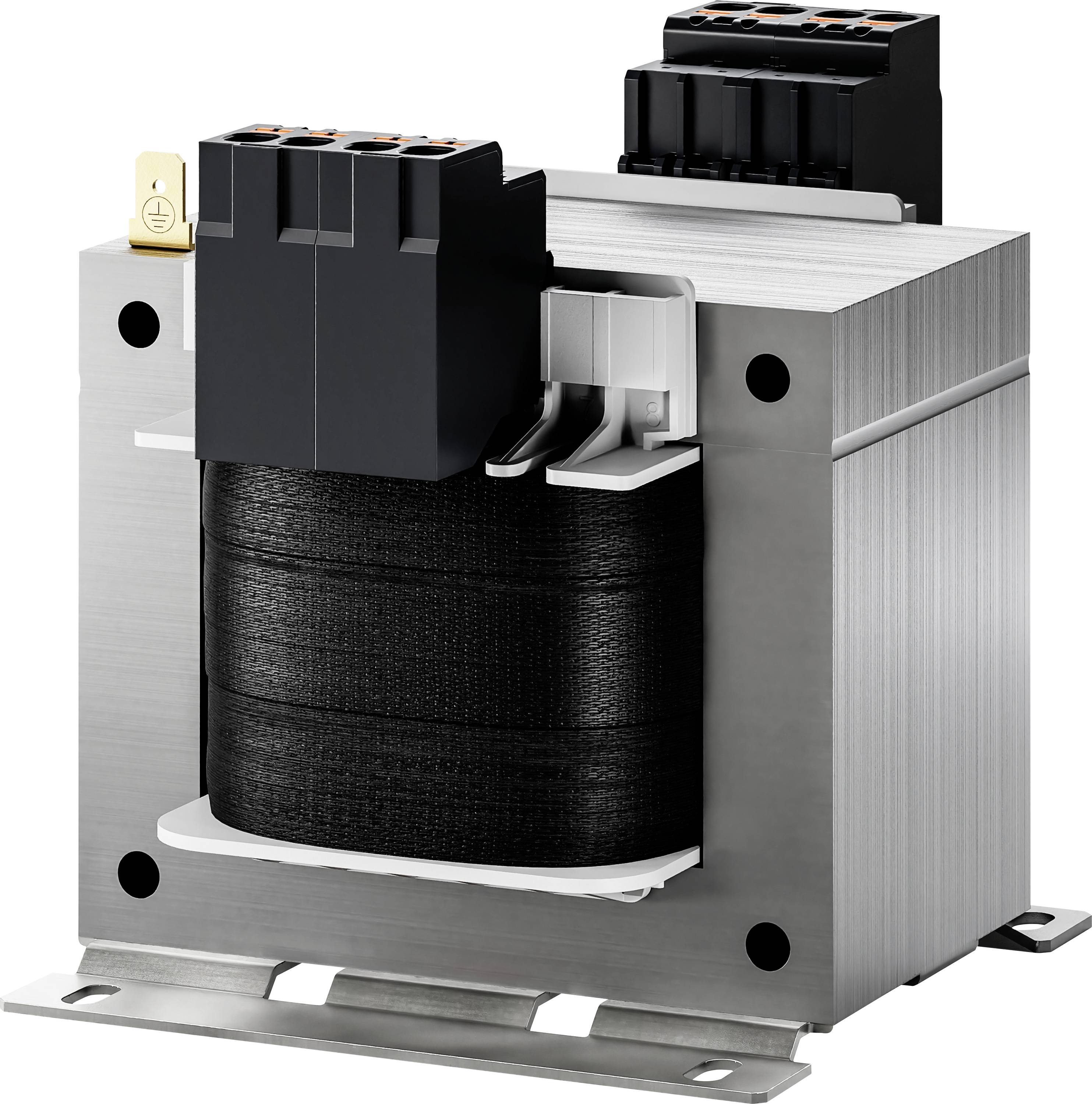

BLOCK STEU 800/48 Control transformer, Isolation transformer 1 x 215 V AC, 230 V AC, 245 V AC, 385 V AC, 400 V AC, 415 V-0

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Control transformer STEU 800/48

1 x 215 V AC, 230 V AC, 245 V AC, 385 V AC, 400 V AC, 415 V AC
2 x 24 V AC, 48 V AC
800 VA

Technical specifications

Product type: Control transformer

Output voltage: 24 V AC
48 V AC

No. of outputs: 2 x

No. of inputs: 1 x

: 800 VA

Input voltage: 215 V AC
230 V AC
245 V AC
385 V AC
400 V AC
415 V AC

Standards: UL 5085-1/-2, CSA 22.2 No. 66

Connection: Push-in connector

Width: 150 mm

Height: 143 mm

Length: 130 mm

Dim: (L x W x H) 130 x 150 x 143 mm

Output voltage (number x voltage): 2 x 24 V AC, 48 V AC

Design type: open

Input voltage (number x voltage): 1 x 215 V AC, 230 V AC, 245 V AC, 385 V AC, 400 V AC, 415 V AC

Weight: 10.3 kg

Content: 1 pc(s)

Insulation class: VDE=B, UL=CLASS 130

Mounting type: L-piece

Test mark: cULus recognized

Protection class: I

Features: +/- 15 V input voltage terminal

Type: STEU 800/48

Max. ambient temperature: +40 °C

Efficiency: 94 %

Documents & Downloads

Datasheet

Datasheet 2206929 BLOCK STEU 800/48 Control transformer, Isolation transformer 1 x 215 V AC, 230 V AC, 245 V AC, 385 V AC, 400 V AC, 415 V

User & Safety Instructions

User & Safety Instructions 2206929 BLOCK STEU 800/48 Control transformer, Isolation transformer 1 x 215 V AC, 230 V AC, 245 V AC, 385 V AC, 400 V AC, 415 V

Description

As control transformer according to EN 61558-2-2 for electrical separation of the input and output side. Due to its design, the transformer is designed to supply control systems according to VDE 0113.
