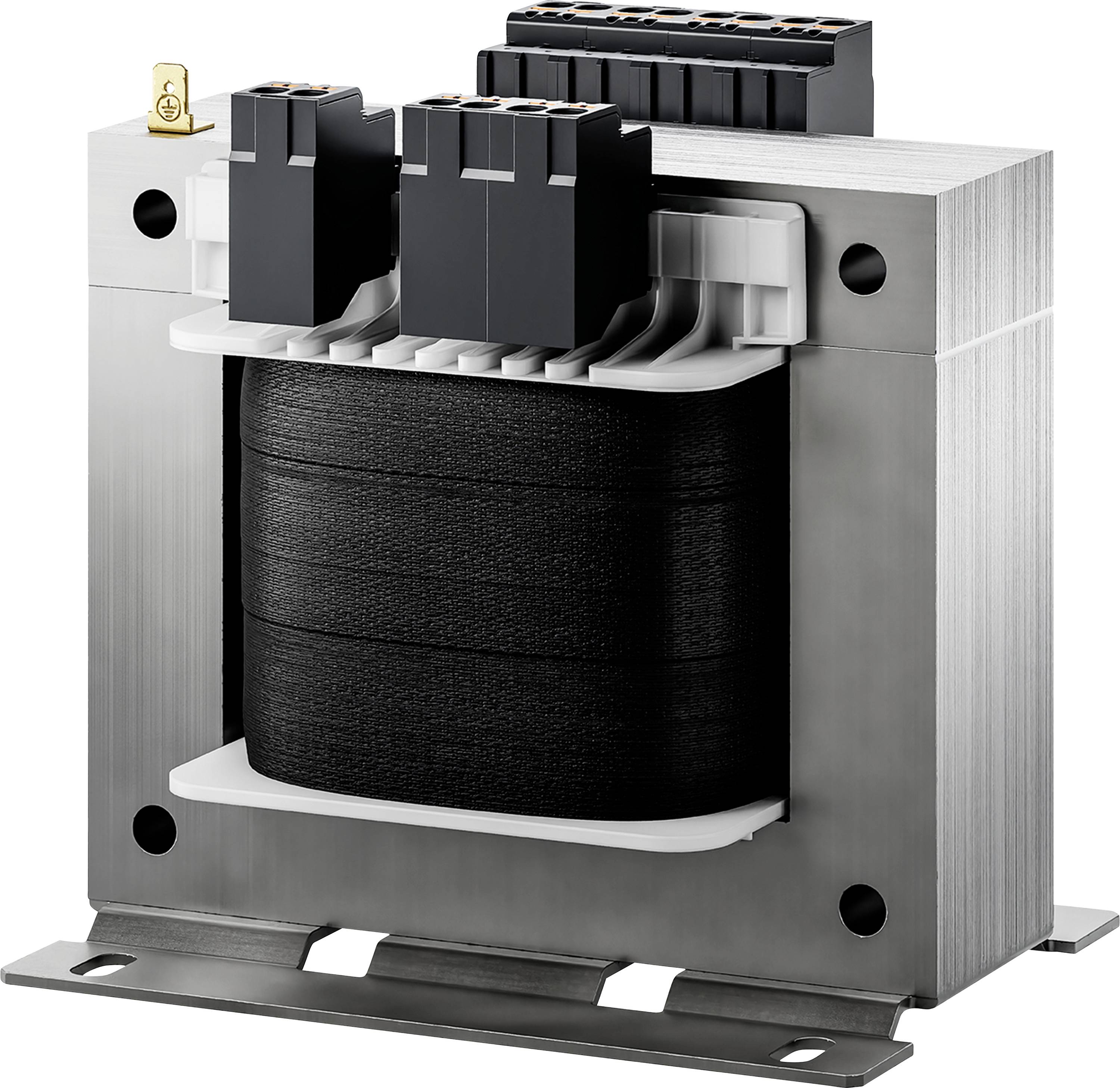

Buy BLOCK USTE 1200/2x115 Control transformer, Isolation transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 4

BLOCK USTE 1200/2x115 Control transformer, Isolation transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 4-0

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Control TRANSFORMER USTE 1200/2x115

1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC
2 x 115 V AC, 230 V AC
1200 VA

Technical specifications

Product type: Control transformer

Output voltage: 115 V AC
230 V AC

No. of outputs: 2 x

No. of inputs: 1 x

: 1200 VA

Input voltage: 208 V AC
230 V AC
380 V AC
400 V AC
415 V AC
440 V AC
460 V AC
480 V AC
500 V AC
525 V AC
550 V AC
575 V AC
600 V AC
Show more

Standards: VDE 0570 PART 2-2, DIN EN 61558-2-2, EN 61558-2-2, IEC EN 61558-2-2, UL 5085-1/2, CSA 22.2 No. 66

Connection: Push-in connector

Width: 150 mm

Height: 143 mm

Length: 164 mm

Dim: (L x W x H) 164 x 150 x 143 mm

Output voltage (number x voltage): 2 x 115 V AC, 230 V AC

Design type: Unassigned

Input voltage (number x voltage): 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC

Weight: 13.8 kg

Content: 1 pc(s)

Insulation class: VDE=B, UL=CLASS 130

Mounting type: L-piece

Test mark: cULus Listed

Protection class: I

Type: USTE 1200/2x115

Max. ambient temperature: +40 °C

Efficiency: 94 %

Variants(All information is without VAT, plus shipping costs)

Power

Output voltage

BLOCK USTE 1200/2x115 Control transformer, Isolation transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC 2 x 115 V AC, 230 V AC 1200 VA

Item no:2206932

This article

1200 VA

115 V AC230 V AC

BLOCK USTE 100/2x115 Control transformer, Isolation transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC 2 x 115 V AC, 230 V AC 100 VA

Item no:1390950

100 VA

115 V AC230 V AC

BLOCK USTE 100/2x12 Control transformer, Safety transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC 2 x 12 V AC, 24 V AC 100 VA

Item no:1390951

100 VA

12 V AC24 V AC

BLOCK USTE 1000/2x115 Control transformer, Isolation transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC 2 x 115 V AC, 230 V AC 1000 VA

Item no:1390952

1000 VA

115 V AC230 V AC

BLOCK USTE 1600/2x115 Control transformer, Isolation transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC 2 x 115 V AC, 230 V AC 1600 VA

Item no:1390953

1600 VA

115 V AC230 V AC

BLOCK USTE 250/2x115 Control transformer, Isolation transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC 2 x 115 V AC, 230 V AC 250 VA

Item no:1390954

250 VA

115 V AC230 V AC

BLOCK USTE 250/2x12 Control transformer, Safety transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC 2 x 12 V AC, 24 V AC 250 VA

Item no:1390955

250 VA

12 V AC24 V AC

BLOCK USTE 2500/2x115 Control transformer, Isolation transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC 2 x 115 V AC, 230 V AC 2500 VA

Item no:1390956

2500 VA

115 V AC230 V AC

BLOCK USTE 3200/2x115 Control transformer, Isolation transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC 2 x 115 V AC, 230 V AC 3200 VA

Item no:1390957

3200 VA

115 V AC230 V AC

BLOCK USTE 400/2x115 Control transformer, Isolation transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC 2 x 115 V AC, 230 V AC 400 VA

Item no:1390958

400 VA

115 V AC230 V AC

Documents & Downloads

Datasheet

Datasheet 2206932 BLOCK USTE 1200/2x115 Control transformer, Isolation transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 4

User & Safety Instructions

User & Safety Instructions 2206932 BLOCK USTE 1200/2x115 Control transformer, Isolation transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 4

Description

As control transformer for electrical isolation of the input and output side. Due to its design, the transformer is designed to supply control systems according to VDE 0113.

This text is machine translated.

Features

Universal input voltages from 208 to 600 V/AC
Very good switch-on behavior due to reduced switch-on currents
High power density thanks to a compact design concept
