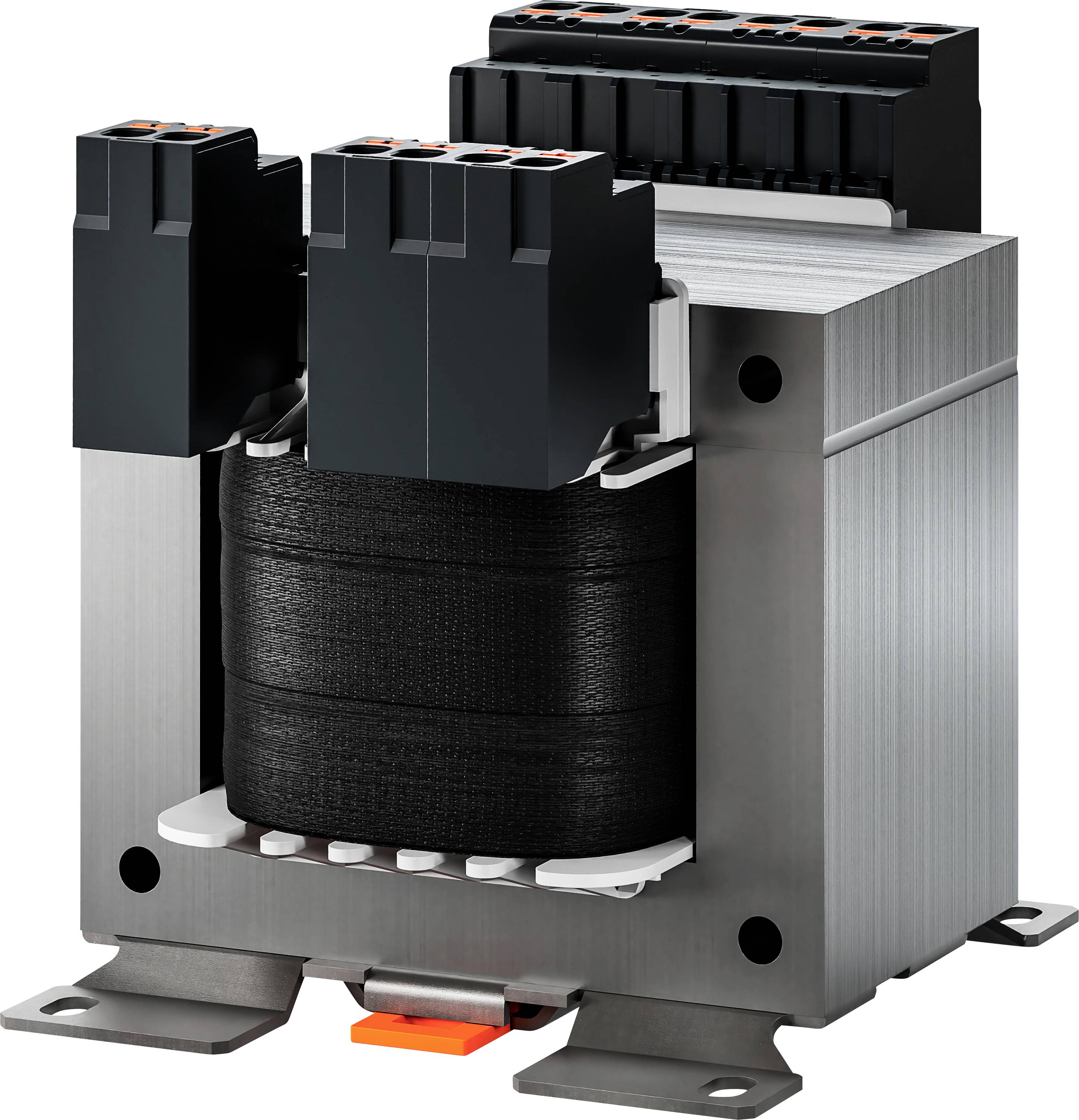

Buy BLOCK USTE 40/2x12 Control transformer, Safety transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V A

BLOCK USTE 40/2x12 Control transformer, Safety transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V A-0

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Control TRANSFORMER USTE 40/2x12

1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC
2 x 12 V AC, 24 V AC
40 VA

Technical specifications

Product type: Control transformer

Output voltage: 12 V AC
24 V AC

No. of outputs: 2 x

No. of inputs: 1 x

: 40 VA

Input voltage: 208 V AC
230 V AC
380 V AC
400 V AC
415 V AC
440 V AC
460 V AC
480 V AC
500 V AC
525 V AC
550 V AC
575 V AC
600 V AC
Show more

Standards: VDE 0570 PART 2-2, DIN EN 61558-2-2, EN 61558-2-2, IEC EN 61558-2-2, UL 5085-1/2, CSA 22.2 No. 66

Connection: Push-in connector

Width: 84 mm

Height: 95 mm

Length: 95 mm

Dim: (L x W x H) 95 x 84 x 95 mm

Output voltage (number x voltage): 2 x 12 V AC, 24 V AC

Design type: open

Input voltage (number x voltage): 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC

Weight: 1.4 kg

Content: 1 pc(s)

Insulation class: VDE=B, UL=CLASS 130

Mounting type: L-piece
DIN rail

Test mark: cULus Listed

Protection class: I

Type: USTE 40/2x12

Max. ambient temperature: +40 °C

Efficiency: 87 %

Variants(All information is without VAT, plus shipping costs)

Power

Output voltage

BLOCK USTE 40/2x12 Control transformer, Safety transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC 2 x 12 V AC, 24 V AC 40 VA

Item no:2206869

This article

40 VA

12 V AC24 V AC

BLOCK USTE 100/2x115 Control transformer, Isolation transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC 2 x 115 V AC, 230 V AC 100 VA

Item no:1390950

100 VA

115 V AC230 V AC

BLOCK USTE 100/2x12 Control transformer, Safety transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC 2 x 12 V AC, 24 V AC 100 VA

Item no:1390951

100 VA

12 V AC24 V AC

BLOCK USTE 1000/2x115 Control transformer, Isolation transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC 2 x 115 V AC, 230 V AC 1000 VA

Item no:1390952

1000 VA

115 V AC230 V AC

BLOCK USTE 1600/2x115 Control transformer, Isolation transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC 2 x 115 V AC, 230 V AC 1600 VA

Item no:1390953

1600 VA

115 V AC230 V AC

BLOCK USTE 250/2x115 Control transformer, Isolation transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC 2 x 115 V AC, 230 V AC 250 VA

Item no:1390954

250 VA

115 V AC230 V AC

BLOCK USTE 250/2x12 Control transformer, Safety transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC 2 x 12 V AC, 24 V AC 250 VA

Item no:1390955

250 VA

12 V AC24 V AC

BLOCK USTE 2500/2x115 Control transformer, Isolation transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC 2 x 115 V AC, 230 V AC 2500 VA

Item no:1390956

2500 VA

115 V AC230 V AC

BLOCK USTE 3200/2x115 Control transformer, Isolation transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC 2 x 115 V AC, 230 V AC 3200 VA

Item no:1390957

3200 VA

115 V AC230 V AC

BLOCK USTE 400/2x115 Control transformer, Isolation transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC, 575 V AC, 600 V AC 2 x 115 V AC, 230 V AC 400 VA

Item no:1390958

400 VA

115 V AC230 V AC

Documents & Downloads

Datasheet

Datasheet 2206869 BLOCK USTE 40/2x12 Control transformer, Safety transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V A

User & Safety Instructions

User & Safety Instructions 2206869 BLOCK USTE 40/2x12 Control transformer, Safety transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 415 V AC, 440 V A

Description

As control transformer for electrical isolation of the input and output side. Due to its design, the transformer is designed to supply control systems according to VDE 0113.

This text is machine translated.

Features

Universal input voltages from 208 to 600 V/AC
Very good switch-on behavior due to reduced switch-on currents
High power density thanks to a compact design concept
