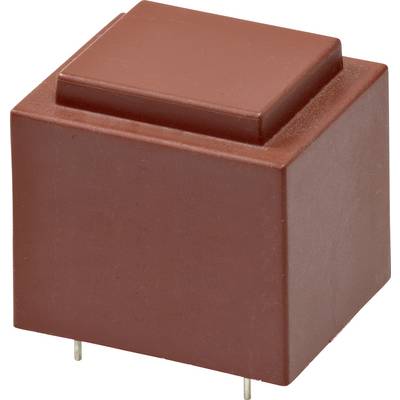

BLOCK VB 2,3/2/12 PCB mount transformer 1 x 230 V 2 x 12 V AC 2.30 VA 95 mA
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 12.60
3
6% = € 0.70
€ 11.90
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 12.60 / piece)
€ 12.60
plus VAT.
14-day return policy included
Highlights & Details
BLOCK VB 2,3/2/12 PCB mount transformer 1 x 230 V 2 x 12 V AC 2.30 VA 95 mA
- Minimum size in case of high power
- Short-circuit resistant
Technical specifications
- Product type
PCB mount transformer
- Output voltage
12 V AC
- Output voltage (number x voltage)
2 x 12 V AC
- Output current
95 mA
- No. of inputs
1 x
- No. of outputs
2 x
- Input voltage
230 V
- Input voltage (number x voltage)
1 x 230 V
2.30 VA
- Height
29 mm
- Type
VB 2,3/2/12
- Connection
Soldering
- Frequency
50 - 60 Hz
- Weight
0.11 kg
- Content
1 pc(s)
- Insulation class
VDE=B, UL=105
- Test voltage
5000 V
- Test mark
C-UL-US, ENEC 10 (VDE)
- RoHS-compliant
Yes
- Max. ambient temperature
+70 °C
- Efficiency
59 %
2/3 VA
- Output voltage
2 x 12 V
Documents & Downloads
Datasheet
Datasheet 710328 BLOCK VB 2,3/2/12 PCB mount transformer 1 x 230 V 2 x 12 V AC 2.30 VA 95 mA
User & Safety Instructions
User & Safety Instructions 710328 BLOCK VB 2,3/2/12 PCB mount transformer 1 x 230 V 2 x 12 V AC 2.30 VA 95 mA
Conformity certificate
Conformity certificate 710328 BLOCK VB 2,3/2/12 PCB mount transformer 1 x 230 V 2 x 12 V AC 2.30 VA 95 mA
Description
VB dual voltage
Primary connection assignment: pin 1 to 2
Secondary 1 pin assignment: pin 4 to 3
Pin assignment Secondary 2: Pen 6-5
Primary connection assignment: pin 1 to 2
Secondary 1 pin assignment: pin 4 to 3
Pin assignment Secondary 2: Pen 6-5
Hints
Dimensional drawing see technical data sheet.
