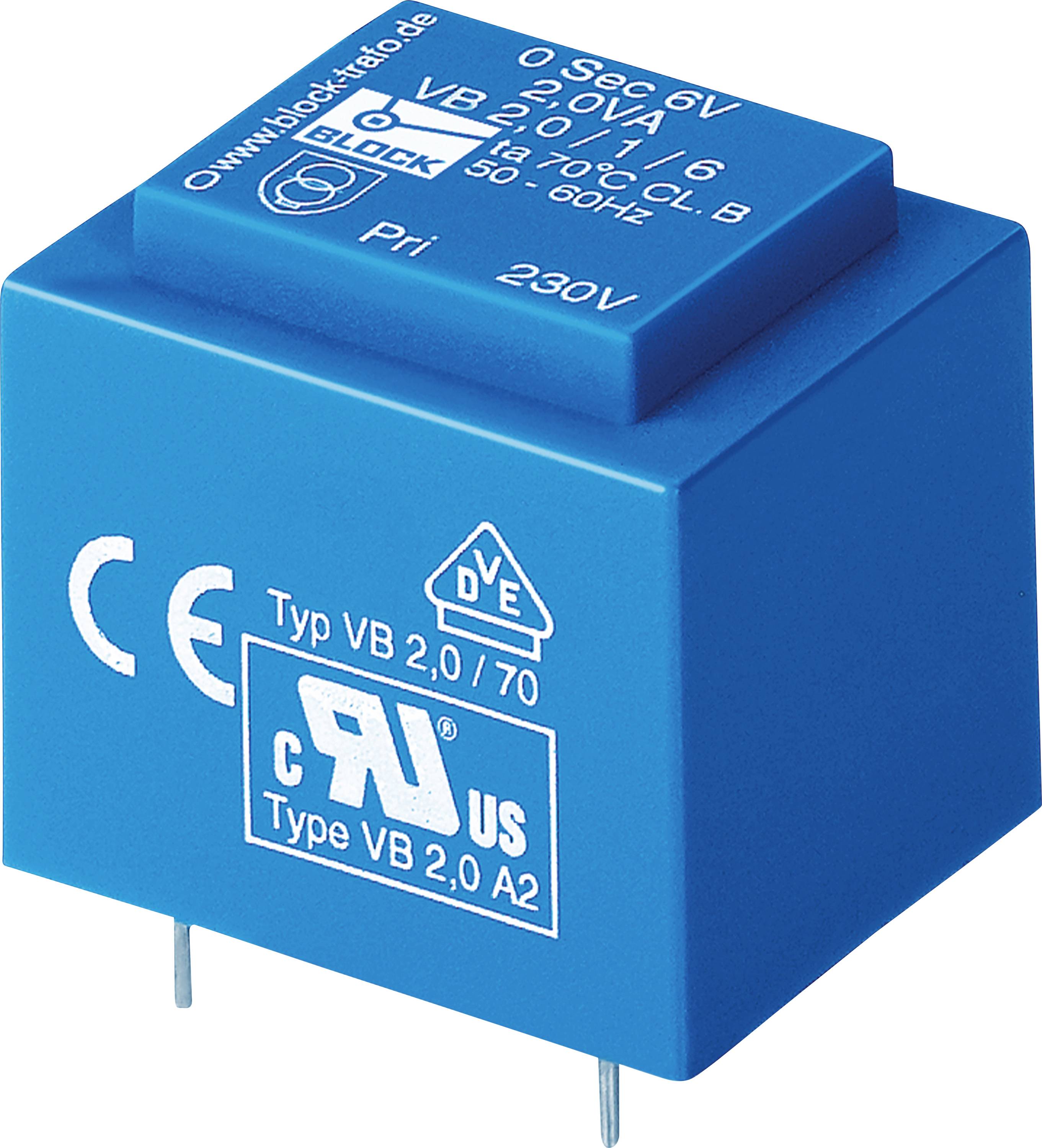

BLOCK VB 2,8/2/6 PCB mount transformer 1 x 230 V 2 x 6 V AC 2.80 VA 233 mA
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 8.39
3
6% = € 0.47
€ 7.92
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 8.39 / piece)
€ 8.39
plus VAT.
14-day return policy included
Highlights & Details
BLOCK VB 2,8/2/6 PCB mount transformer 1 x 230 V 2 x 6 V AC 2.80 VA 233 mA
- Minimum size in case of high power
- Short-circuit resistant
Technical specifications
- Product type
PCB mount transformer
- Output voltage
6 V AC
- Output voltage (number x voltage)
2 x 6 V AC
- Output current
233 mA
- No. of inputs
1 x
- No. of outputs
2 x
- Input voltage
230 V
- Input voltage (number x voltage)
1 x 230 V
2.80 VA
- Height
34 mm
- Type
VB 2,8/2/6
- Connection
Soldering
- Frequency
50 - 60 Hz
- Content
1 pc(s)
- Insulation class
VDE=B, UL=105
- Test voltage
5000 V
- Test mark
C-UL-US, ENEC 10 (VDE)
- RoHS-compliant
Yes
- Max. ambient temperature
+70 °C
2.8 VA
- Output voltage
2 x 6 {V}
Documents & Downloads
Datasheet
Datasheet 710883 BLOCK VB 2,8/2/6 PCB mount transformer 1 x 230 V 2 x 6 V AC 2.80 VA 233 mA
User & Safety Instructions
User & Safety Instructions 710883 BLOCK VB 2,8/2/6 PCB mount transformer 1 x 230 V 2 x 6 V AC 2.80 VA 233 mA
Description
VB dUAL POWER
Primary connection assignment: pin 1 to 2
Pin assignment Secondary 1: pEN 4 - 3
Pin assignment Secondary 2: PEN 6 - 5
Primary connection assignment: pin 1 to 2
Pin assignment Secondary 1: pEN 4 - 3
Pin assignment Secondary 2: PEN 6 - 5
Hints
Dimensional drawing see technical data sheet.
