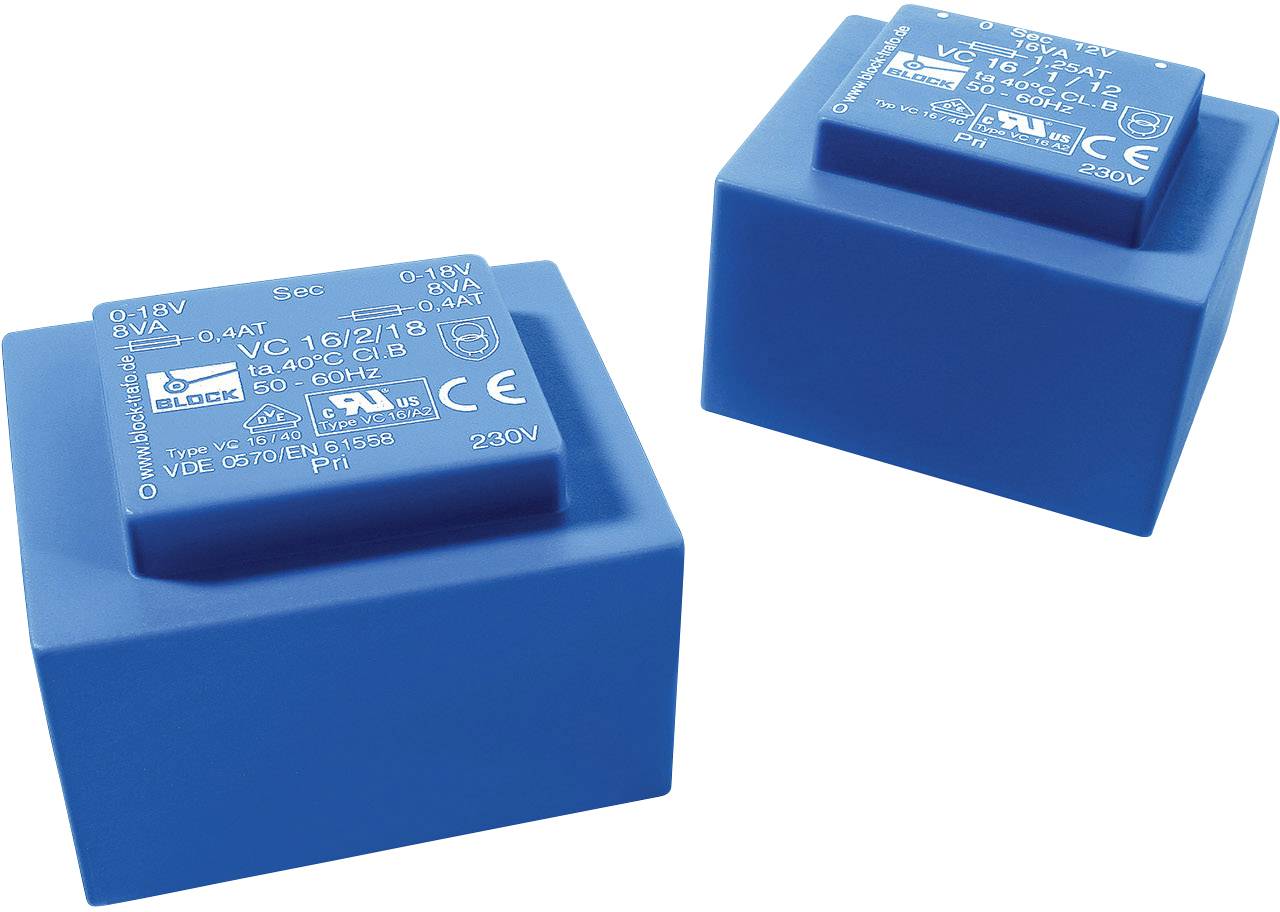

Image similar
Image similar
BLOCK VC 5,0/2/8 PCB mount transformer 1 x 230 V AC 2 x 8 V AC 5 VA
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Mains TRANSFORMER VC 5,0/2/8
- 1 x 230 V AC
- 2 x 8 V AC
- 5 VA
Technical specifications
- Product type
PCB mount transformer
- Output voltage
8 V AC
- No. of outputs
2 x
- No. of inputs
1 x
5 VA
- Input voltage
230 V AC
- Connection
Solder pins
- Width
44 mm
- Height
33 mm
- Length
37 mm
- Dim
(L x W x H) 37 x 44 x 33 mm
- Output voltage (number x voltage)
2 x 8 V AC
- Design type
moulded
- Input voltage (number x voltage)
1 x 230 V AC
- Weight
190 g
- Content
1 pc(s)
- Insulation class
VDE=B, UL=CLASS 105
- Dimensions
44x33x37 mm
- Mounting type
PCB mount
- Protection class
IP00
- Type
VC 5,0/2/8
- Max. ambient temperature
+50 °C
- Efficiency
68 %
Documents & Downloads
Datasheet
Datasheet 2206976 BLOCK VC 5,0/2/8 PCB mount transformer 1 x 230 V AC 2 x 8 V AC 5 VA
User & Safety Instructions
User & Safety Instructions 2206976 BLOCK VC 5,0/2/8 PCB mount transformer 1 x 230 V AC 2 x 8 V AC 5 VA
Description
As mains transformer for voltage adjustment and simple electrical separation.
This text is machine translated.
This text is machine translated.
Features
- Minimum size with high power; also with double output voltage for series or parallel connection; permanent corrosion protection, high insulation value and highest electrical reliability by casting resin compound XtraDenseFill
