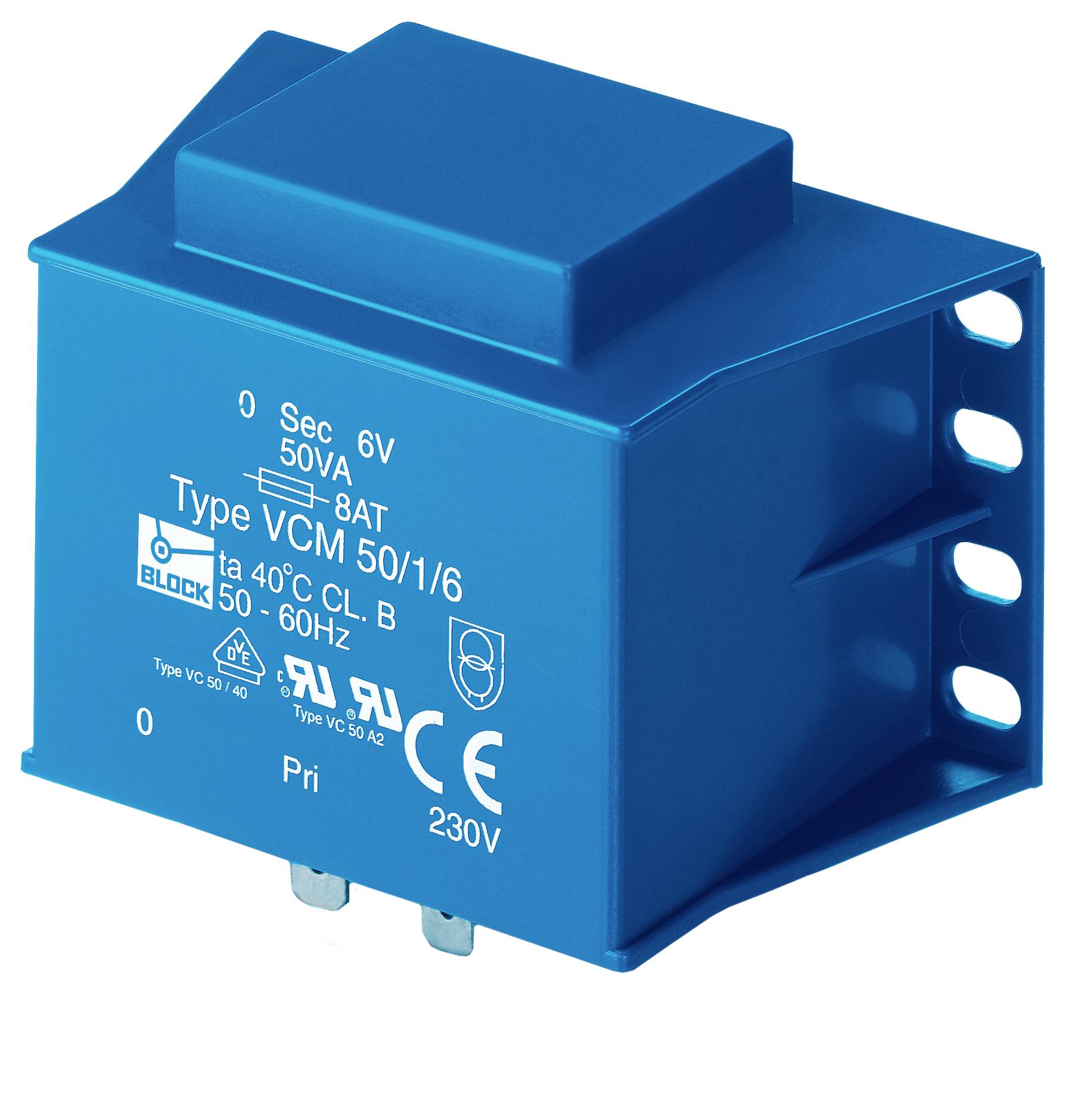

Image similar

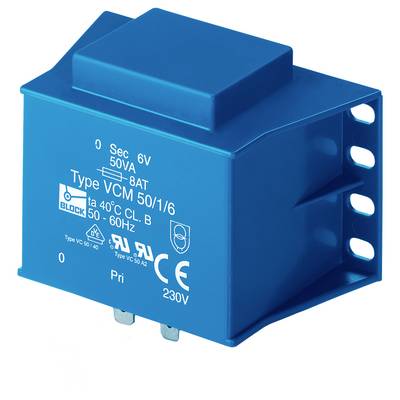

Image similar
BLOCK VCM 36/2/9 PCB mount transformer 1 x 230 V 2 x 9 V AC 36 VA 4 A
EAN:
Part number:
Item no:
Datasheet (PDF)
5 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 21.00
3
4% = € 0.92
€ 20.08
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 21.00 / piece)
€
Only 5 Piece(s) available
Highlights & Details
BLOCK VCM 36/2/9 PCB mount transformer 1 x 230 V 2 x 9 V AC 36 VA 4 A
- to N/A
- Excellent size to power ratio
- Vacuum resin moulded (self extinguishing to UL 94 V-0)
- Mounting tabs on side of housing
Technical specifications
- Output voltage
9 V AC
- Output voltage (number x voltage)
2 x 9 V AC
- Output current
4 A
- No. of inputs
1 x
- No. of outputs
2 x
- Input voltage
230 V
- Input voltage (number x voltage)
1 x 230 V
36 VA
- Type
VCM 36/2/9
- Content
1 pc(s)
- Test mark
C-UL-US, ENEC 10 (VDE)
- Connection
Soldering
36 VA
- Output voltage
2 x 9 mm V
- Insulation class
VDE=B, UL=105
- Frequency
50 - 60 Hz
- Efficiency
83 %
- RoHS-compliant
Yes
- Max. ambient temperature
+40 °C
- Test voltage
500 V
- Weight
0.75 kg
- Product type
PCB mount transformer
Documents & Downloads
Datasheet
Datasheet 710519 BLOCK VCM 36/2/9 PCB mount transformer 1 x 230 V 2 x 9 V AC 36 VA 4 A
User & Safety Instructions
User & Safety Instructions 710519 BLOCK VCM 36/2/9 PCB mount transformer 1 x 230 V 2 x 9 V AC 36 VA 4 A
Conformity certificate
Conformity certificate 710519 BLOCK VCM 36/2/9 PCB mount transformer 1 x 230 V 2 x 9 V AC 36 VA 4 A
Description
VCM dual voltage
Primary connection assignment: pin 1 to 2
Secondary 1 pin assignment: pin 4 to 3
Pin assignment Secondary 2: Pen 6-5
Primary connection assignment: pin 1 to 2
Secondary 1 pin assignment: pin 4 to 3
Pin assignment Secondary 2: Pen 6-5
Hints
For more technical data on BLOCK's VCM 36/2/9 PCB transformer, please see its datasheet under 'downloadable documents'.
