blueZPring 19042 Effluent sump pump PG connector 30 m³/h 10.5 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

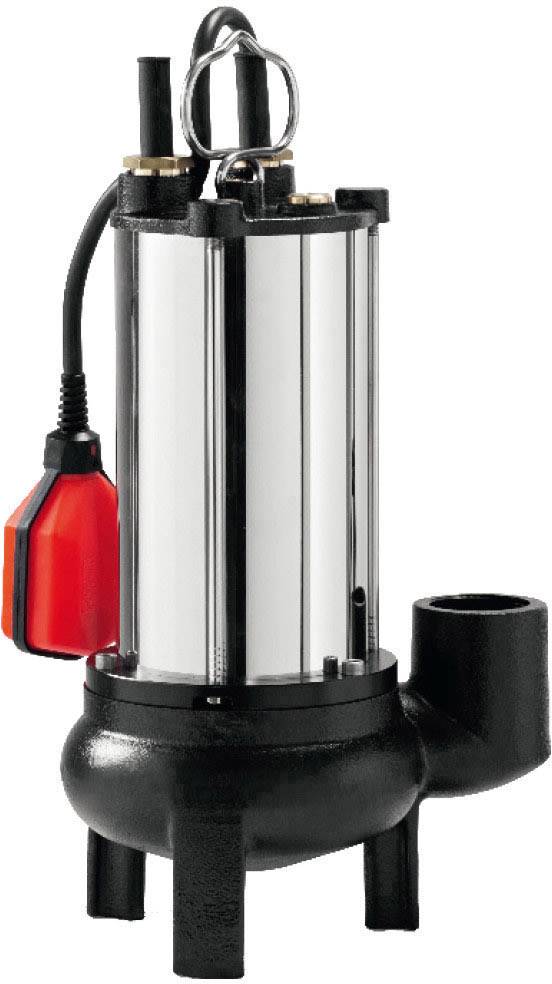

Waste water pump Solida 390 C
- Robust construction.
- Large delivery performance
- Motor protection integrated
Technical specifications
- Product type
Effluent sump pump
- Features
PG connector
- Max. delivery head
10.5 m
- Max. feed rate
30 m³/h
- Max. discharge pressure
1.05 bar
- Operating voltage
230 V
- Power consumption (P1)
750 W
- Pressure connection
56.7 mm (2") IT
- Max. size of solids
50 mm
- Immersion depth
20 m
- Max. cable length
10 m
- Float switch
Yes
- Overload protection
Yes
- Width
23.5 cm
- Height
50.2 cm
- Dim
(W x H) 23.5 cm x 50.2 cm
- Weight
18.2 kg
IP68
Documents & Downloads
Datasheet
Datasheet 1524272 blueZPring 19042 Effluent sump pump PG connector 30 m³/h 10.5 m
User & Safety Instructions
User & Safety Instructions 1524272 blueZPring 19042 Effluent sump pump PG connector 30 m³/h 10.5 m
Description
The Solida 390 C waste water submersible pump of blueZPring has a large flow rate (30 m³/h). The high flow rate means that this pump is for use in commercial, industrial, agricultural or for drainage. The pump is also suitable for contaminated water with suspended solids (up to grain size 50 mm). The Wirbelrad and motor protection ensure a high reliability.
This text is machine translated.
This text is machine translated.
Features
- Float switch for automatic operation and dry-run protection
- With integrated capacitor
- Double mechanical seal in Olkammer
Scope of delivery
- Waste water submersible pump with 10 m connection cable
