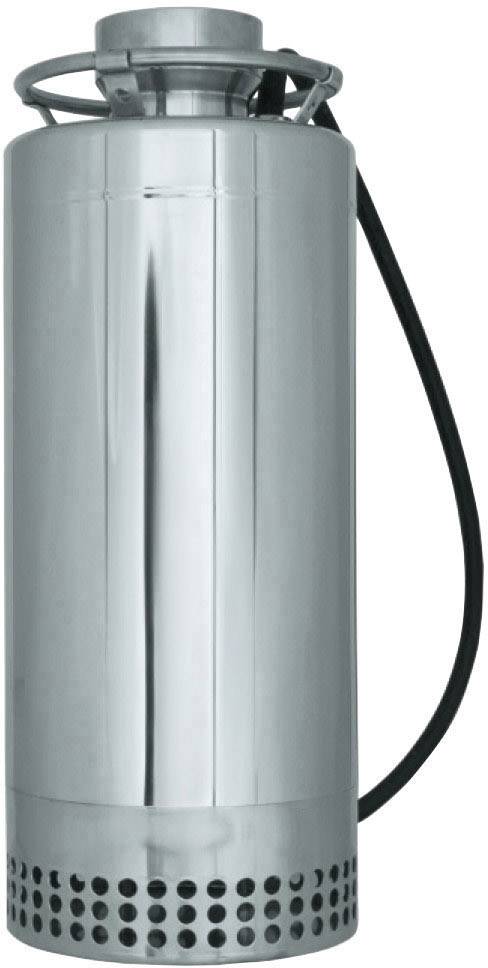

blueZPring 19054 Clean water submersible pump 42 m³/h 17.5 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Clean water submersible pump motor drain pro B 200
- Durable, robust submersible pump
- Corrosion resistant and reliable
- Built-in motor protection
Technical specifications
- Material: stainless steel
- Product type
Clean water submersible pump
- Max. delivery head
17.5 m
- Max. feed rate
42 m³/h
- Max. discharge pressure
1.75 bar
- Operating voltage
230 V
- Power consumption (P1)
2900 W
- Pressure connection
56.7 mm (2") IT
- Max. size of solids
10 mm
- Immersion depth
5 m
- Max. cable length
10 m
- Float switch
No
- Overload protection
Yes
- Height
42.6 cm
- (Ø)
20.3 cm
- Dim
(Ø x H) 20.3 cm x 42.6 cm
- Weight
35 kg
IP68
Documents & Downloads
Datasheet
Datasheet 1524265 blueZPring 19054 Clean water submersible pump 42 m³/h 17.5 m
User & Safety Instructions
User & Safety Instructions 1524265 blueZPring 19054 Clean water submersible pump 42 m³/h 17.5 m
Description
The blueZPring Drain Pro B200 submersible pump is suitable for private and communal area. Areas of application were, for example, the dry attitude of excavations, the emptying of waste water with light and abrasive dirt or for use in fountain systems (fountain).
This text is machine translated.
This text is machine translated.
Scope of delivery
- Clean water submersible pump including start-up device, condenser and thermal protection, 10 m connection cable.
