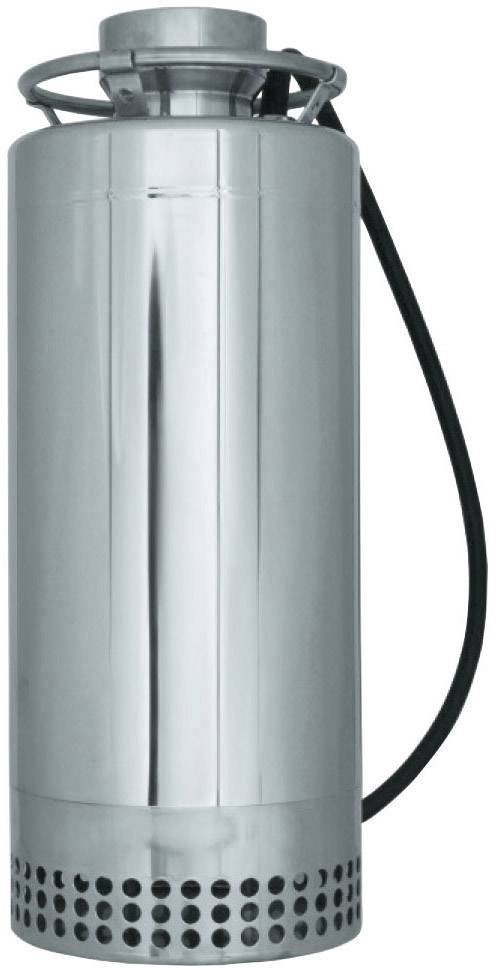

blueZPring 19059 Clean water submersible pump 84 m³/h 23 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Clean water submersible pump motor drain pro B 600
- Durable, robust submersible pump
- Corrosion resistant and reliable
- Built-in motor protection
Technical specifications
- Material: stainless steel
- Product type
Clean water submersible pump
- Max. delivery head
23 m
- Max. feed rate
84 m³/h
- Max. discharge pressure
2.3 bar
- Operating voltage
400 V
- Power consumption (P1)
7000 W
- Pressure connection
84.93 mm (3") IT
- Max. size of solids
10 mm
- Immersion depth
5 m
- Max. cable length
10 m
- Float switch
No
- Overload protection
Yes
- Height
55.1 cm
- (Ø)
20.3 cm
- Dim
(Ø x H) 20.3 cm x 55.1 cm
- Weight
43 kg
IP68
Documents & Downloads
Datasheet
Datasheet 1524267 blueZPring 19059 Clean water submersible pump 84 m³/h 23 m
User & Safety Instructions
User & Safety Instructions 1524267 blueZPring 19059 Clean water submersible pump 84 m³/h 23 m
Description
The blueZPring Drain Pro B600 submersible pump is suitable for private and communal area. Areas of application were, for example, the dry attitude of excavations, the emptying of waste water with corpses and abrasive dirt or for use in fountain systems.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Klarwasser-Tauchpumle including 10 m H07RN-F connection cable
