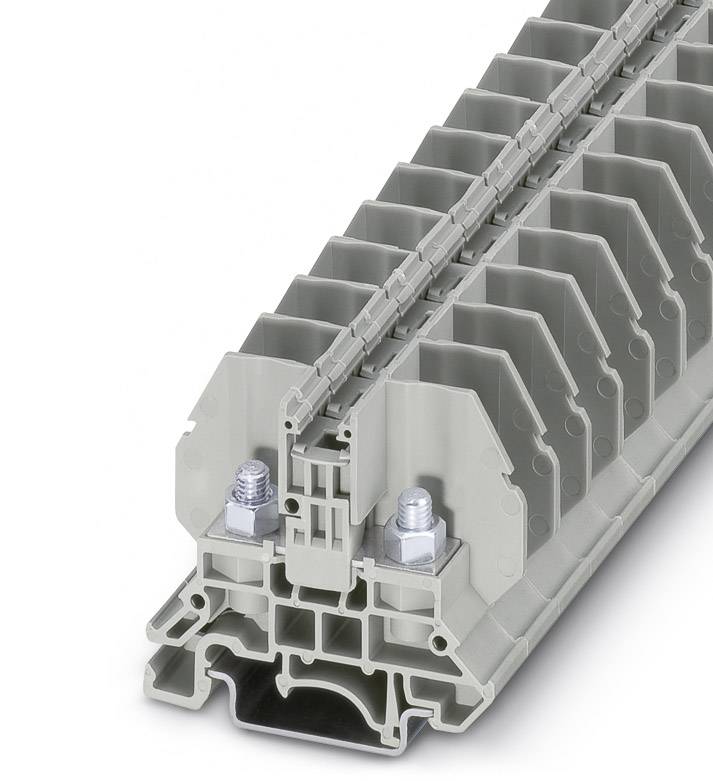

Bolt connection terminal block RBO 5 3058059 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Bolt terminal
Connection
Bolt fixings
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
10 mm²
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 1.34 / piece)
€ 67.22
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Bolt terminal
- Connection
Bolt fixings
- Cross section (flexible) (min.)
0.1 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.1 mm²
- Cross section (inflexible) (max.)
10 mm²
- AWG (min.)
27
- AWG max.
8
- Clamp width
13 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
57 A
- Nominal current - rounded value
57 A
- Nominal voltage
800 V
- Manufacturer part #
3058059
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
RBO 5
- Dim
(L x W x H) 53.3 x 13 x 47 mm
- Width
13 mm
- Height
47 mm
- Length
53.3 mm
- Flammability rating
V0
- Connector colour
Grey
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 589203 Bolt connection terminal block RBO 5 3058059 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 589203 Bolt connection terminal block RBO 5 3058059 Phoenix Contact
Description
Feed-through terminal block with bolt connection method, cross section: 0.1 - 6 mm², AWG: 26 - 10, width 13 mm, color: gray
