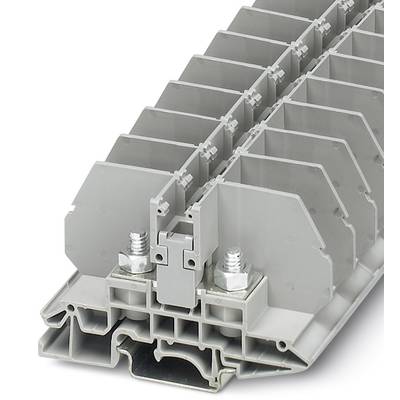

Bolt connection terminal block RBO 6 3075896 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Bolt terminal
Connection
Bolt fixings
Cross section (flexible) (max.)
35 mm²
Cross section (inflexible) (max.)
35 mm²
Datasheet (PDF)
Number (Package size 40 pc(s))
Total (€ 2.52 / piece)
€ 100.83
plus VAT.
14-day return policy included
Highlights & Details
Bolt connection terminal block RBO 6
- RBO 6
Technical specifications
- Packaging type
Piece
- Product type
Bolt terminal
- Connection
Bolt fixings
- Cross section (flexible) (min.)
2.5 mm²
- Cross section (flexible) (max.)
35 mm²
- Cross section (inflexible) (min.)
2.50 mm²
- Cross section (inflexible) (max.)
35 mm²
- AWG (min.)
14
- AWG max.
2
- Clamp width
17 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
125 A
- Nominal current - rounded value
125 A
- Nominal voltage
800 V
- Manufacturer part #
3075896
- Content
40 pc(s)
- Industrial packaging
Yes
- Type
RBO 6
- Dim
(L x W x H) 80.8 x 17 x 49.8 mm
- Width
17 mm
- Height
49.8 mm
- Length
80.8 mm
- Flammability rating
V0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 715795 Bolt connection terminal block RBO 6 3075896 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 715795 Bolt connection terminal block RBO 6 3075896 Phoenix Contact
Description
Bolt connection terminal block, Connection method: Bolt connection, Cross section: 2.5 mm² - 35 mm², AWG: 12 - 2, Width: 17 mm, Height: 48.6 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15
