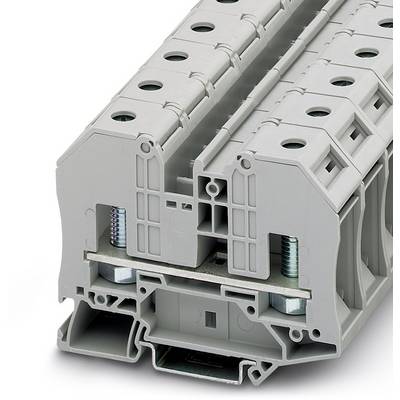

Image similar
Image similar
Bolt connection terminal block RT 8 3049042 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Bolt terminal
Connection
Bolt fixings
Cross section (flexible) (max.)
35 mm²
Cross section (inflexible) (max.)
35 mm²
Nominal current - rounded value
125 A
Datasheet (PDF)
Number (Package size 25 pc(s))
Total (€ 12.74 / piece)
€ 318.49
plus VAT.
14-day return policy included
Technical specifications
- Product type
Bolt terminal
- Connection
Bolt fixings
- Cross section (flexible) (min.)
2.5 mm²
- Cross section (flexible) (max.)
35 mm²
- Cross section (inflexible) (min.)
2.50 mm²
- Cross section (inflexible) (max.)
35 mm²
- AWG (min.)
14
- AWG max.
2
- Clamp width
20.3 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
125 A
- Nominal current - rounded value
125 A
- Nominal voltage
1000 V
- Manufacturer part #
3049042
- Content
25 pc(s)
- Industrial packaging
Yes
- Type
RT 8
- Dim
(L x W x H) 84 x 20.3 x 63.8 mm
- Width
20.3 mm
- Height
63.8 mm
- Length
84 mm
- Flammability rating
V0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 718457 Bolt connection terminal block RT 8 3049042 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 718457 Bolt connection terminal block RT 8 3049042 Phoenix Contact
Description
Feed-through terminal block with bolt connection, cross section: 2.5 - 35 mm², AWG: 14 - 2, width 20.2 mm, color: Gray
