Bopla 12000311 Cable gland built-in strain relief M12 x 1.5 M12 Polyamide White 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M12 x 1.5
Material
Polyamide
Clamp Ø
3 mm
Terminal Ø (max.)
6.5 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 0.82
10
7% = € 0.06
€ 0.76
25
11% = € 0.09
€ 0.73
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 0.82 / piece)
€ 0.82
plus VAT.
14-day return policy included
Highlights & Details

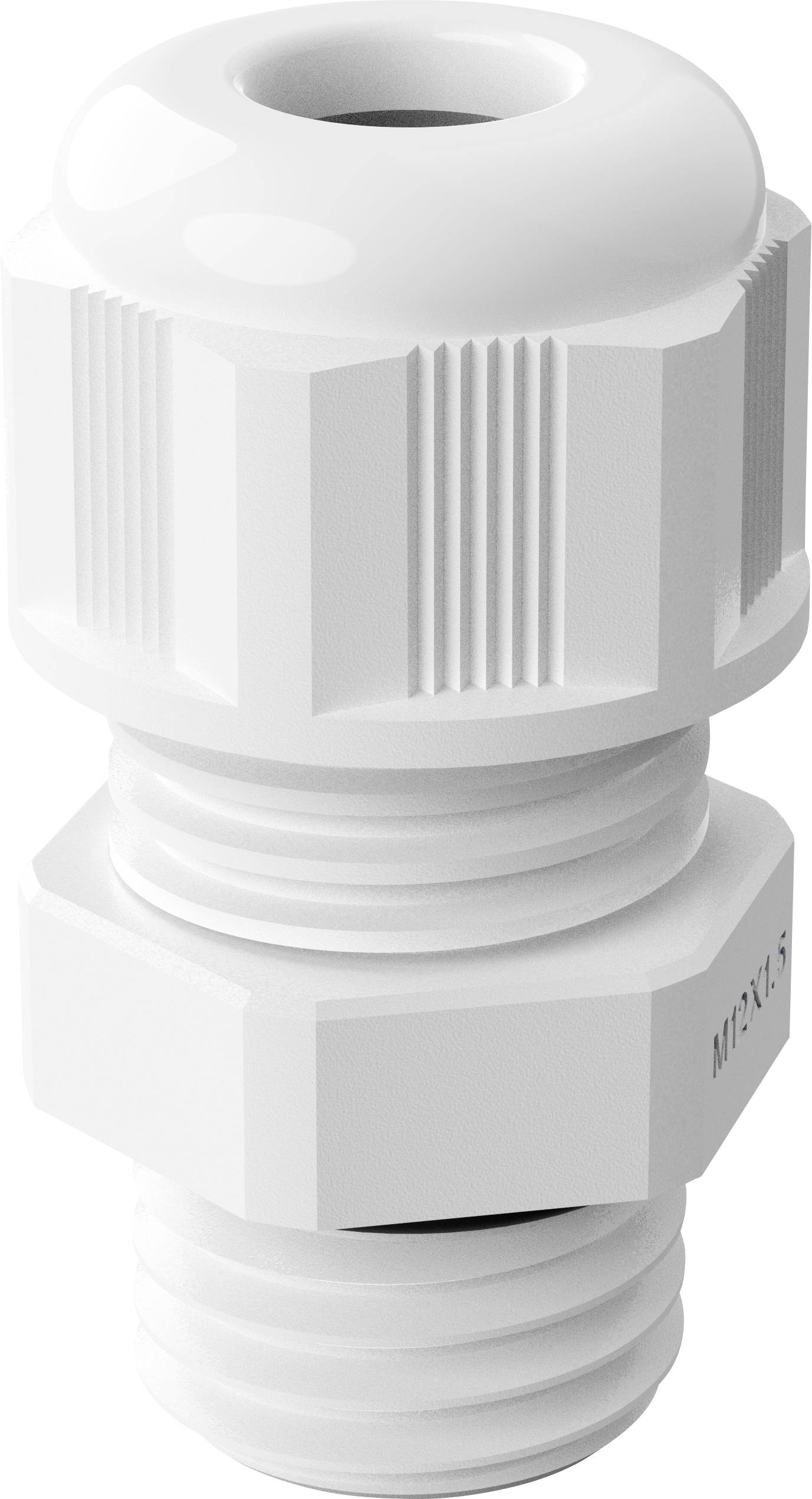

Bopla 12000311 cable gland integrated strain relief M12 polyamide white (RAL 9003) 1 pcs
- Cable gland with metric thread
- Cable diameter 3-6.5 mm
- Easy to install, integrated strain relief
- Protection class IP 68 (5 bar, 30min)
- Colour white similar. RAL 9003
- This text is machine translated.
Technical specifications
- Product type
Cable gland
- Features
built-in strain relief
- Factory colour
White
- External thread
M12 x 1.5
- Internal thread
M12
- Material
Polyamide
- Clamp Ø
3 mm
- Terminal Ø (max.)
6.5 mm
- Thread length
8 mm
- Height
29 mm
- Min. temperature
-20 °C
- Max. temperature
100 °C
IP68
- Spanner size
16.8 mm
- Content
1 pc(s)
- Manufacturer part #
12000311
- Type
MBFW 12-9003
Documents & Downloads
Datasheet
Datasheet 3455049 Bopla 12000311 Cable gland built-in strain relief M12 x 1.5 M12 Polyamide White 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3455049 Bopla 12000311 Cable gland built-in strain relief M12 x 1.5 M12 Polyamide White 1 pc(s)
Description
Scope of delivery
- 1 screw connection
