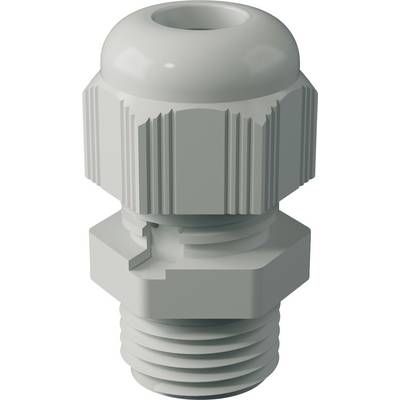

Bopla 12004100 Pressure compensation gland incl. pressure equalisation membrane M12 Polyamide 6 Grey-white (RAL 7035) 1
EAN:
Part number:
Item no:
Product type
Pressure compensation gland
External thread
M12
Material
Polyamide 6
Clamp Ø
4 mm
Terminal Ø (max.)
7 mm
Datasheet (PDF)
Number
Total (€ 4.61 / piece)
€ 4.61
plus VAT.
14-day return policy included
Highlights & Details
Plastic compression fitting
Our service for you
Technical specifications
- Product type
Pressure compensation gland
- Features
incl. pressure equalisation membrane
- Factory colour
Grey-white (RAL 7035)
- External thread
M12
- Material
Polyamide 6
- Clamp Ø
4 mm
- Terminal Ø (max.)
7 mm
- Thread length
8 mm
- Height
25.5 mm
- Min. temperature
-20 °C
- Max. temperature
+100 °C
IP66/IP67
- Spanner size
19 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
12004100
- Type
DAE-MBF 12 Kabelverschraubung incl. DAE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2384273 Bopla 12004100 Pressure compensation gland incl. pressure equalisation membrane M12 Polyamide 6 Grey-white (RAL 7035) 1
User & Safety Instructions
User & Safety Instructions 2384273 Bopla 12004100 Pressure compensation gland incl. pressure equalisation membrane M12 Polyamide 6 Grey-white (RAL 7035) 1
Download
Download 2384273 Bopla 12004100 Pressure compensation gland incl. pressure equalisation membrane M12 Polyamide 6 Grey-white (RAL 7035) 1
Description
Scope of delivery
- 1 piece
- This text is machine translated.
