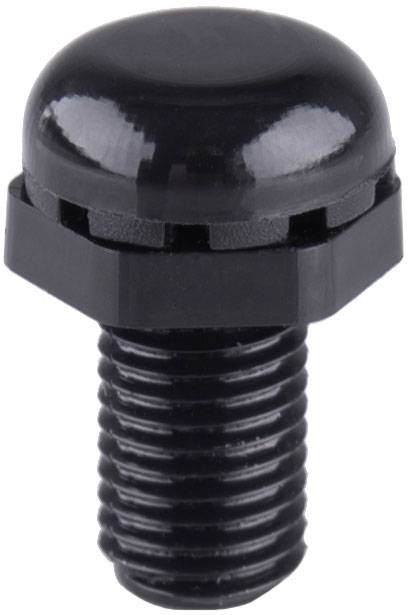

Bopla 52042060 DAE M6 M6 M6 Polyamide 6 Black (RAL 9005) 5 pc(s)
EAN:
Part number:
Item no:
Internal thread
M6
External thread
M6
Material
Polyamide 6
Factory colour
Black (RAL 9005)
Spanner size
17 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 25.20
3
4% = € 1.09
€ 24.11
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 5 pc(s))
Total (€ 25.20 / piece)
€ 25.20
plus VAT.
14-day return policy included
Highlights & Details
SKINTOP® brass screwed cable gland MS-M
- The versatile brass screwed gland with metric connection thread.
Our service for you
Technical specifications
- Internal thread
M6
- Factory colour
Black (RAL 9005)
- External thread
M6
- Spanner size
17 mm
- Thread length
10 mm
- Height
6.15 mm
IP69
- Min. temperature
-40 °C
- Max. temperature
+100 °C
- Material
Polyamide 6
- Content
5 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
52042060
- Type
DAE M6
- Material (details)
Body: nickel plated brass, insert: polyamide, sealing ring: CR/NBR, RO-ring: NBR
- Temperature range
-30 - +100 ºC °C
Documents & Downloads
Datasheet
Datasheet 2384338 Bopla 52042060 DAE M6 M6 M6 Polyamide 6 Black (RAL 9005) 5 pc(s)
User & Safety Instructions
User & Safety Instructions 2384338 Bopla 52042060 DAE M6 M6 M6 Polyamide 6 Black (RAL 9005) 5 pc(s)
Download
Download 2384338 Bopla 52042060 DAE M6 M6 M6 Polyamide 6 Black (RAL 9005) 5 pc(s)
Description
Screwed cable gland with metric connection thread to EN 50262 for use in mechanical engineering and plant construction, measurement and regulation systems, in chemistry, apparatus construction and in many other areas where there are exacting requirements of special stability and functional security.
Scope of delivery
- Locknut not included
Hints
Air that generates a vacuum in the housing when cooled down can suck moisture through the seal into the housing, so that an IP protection is no longer guaranteed. The DAE can be used to compensate for these pressure fluctuations due to temperature differences. When installed, protection types IP 66, IP 68 (0.2 bar, 60 min) and IP 69 can be achieved.
