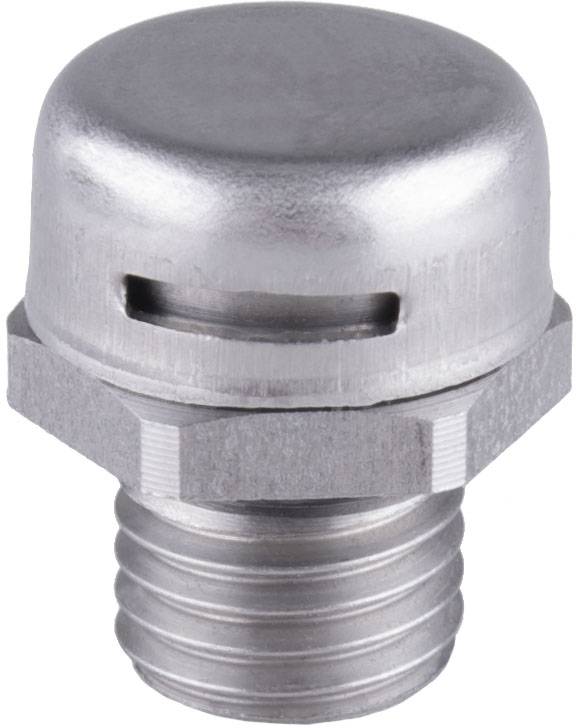

Bopla 52042505 DAE M12x1,5 M12 Stainless steel Stainless steel 1 pc(s)
EAN:
Part number:
Item no:
External thread
M12
Material
Stainless steel
Factory colour
Stainless steel
Spanner size
17 mm
Thread length
10 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 22.68
3
4% = € 0.98
€ 21.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 22.68 / piece)
€ 27.72
-18 %
€ 22.68
plus VAT.
14-day return policy included
Highlights & Details
SKINTOP® brass screwed cable gland MS-M
- The versatile brass screwed gland with metric connection thread.
Our service for you
Technical specifications
- Factory colour
Stainless steel
- External thread
M12
- Spanner size
17 mm
- Thread length
10 mm
- Height
11 mm
IP69
- Min. temperature
-40 °C
- Max. temperature
+100 °C
- Material
Stainless steel
- Content
1 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
52042505
- Type
DAE M12x1,5
- Material (details)
Body: nickel plated brass, insert: polyamide, sealing ring: CR/NBR, RO-ring: NBR
- Temperature range
-30 - +100 ºC °C
Documents & Downloads
Datasheet
Datasheet 2384339 Bopla 52042505 DAE M12x1,5 M12 Stainless steel Stainless steel 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2384339 Bopla 52042505 DAE M12x1,5 M12 Stainless steel Stainless steel 1 pc(s)
Download
Download 2384339 Bopla 52042505 DAE M12x1,5 M12 Stainless steel Stainless steel 1 pc(s)
Description
Screwed cable gland with metric connection thread to EN 50262 for use in mechanical engineering and plant construction, measurement and regulation systems, in chemistry, apparatus construction and in many other areas where there are exacting requirements of special stability and functional security.
Scope of delivery
- Locknut not included
Hints
Air that generates a vacuum in the housing when cooled down can suck moisture through the seal into the housing, so that an IP protection is no longer guaranteed. The DAE can be used to compensate for these pressure fluctuations due to temperature differences. When installed, protection types IP 66, IP 68 (0.2 bar, 60 min) and IP 69 can be achieved.
