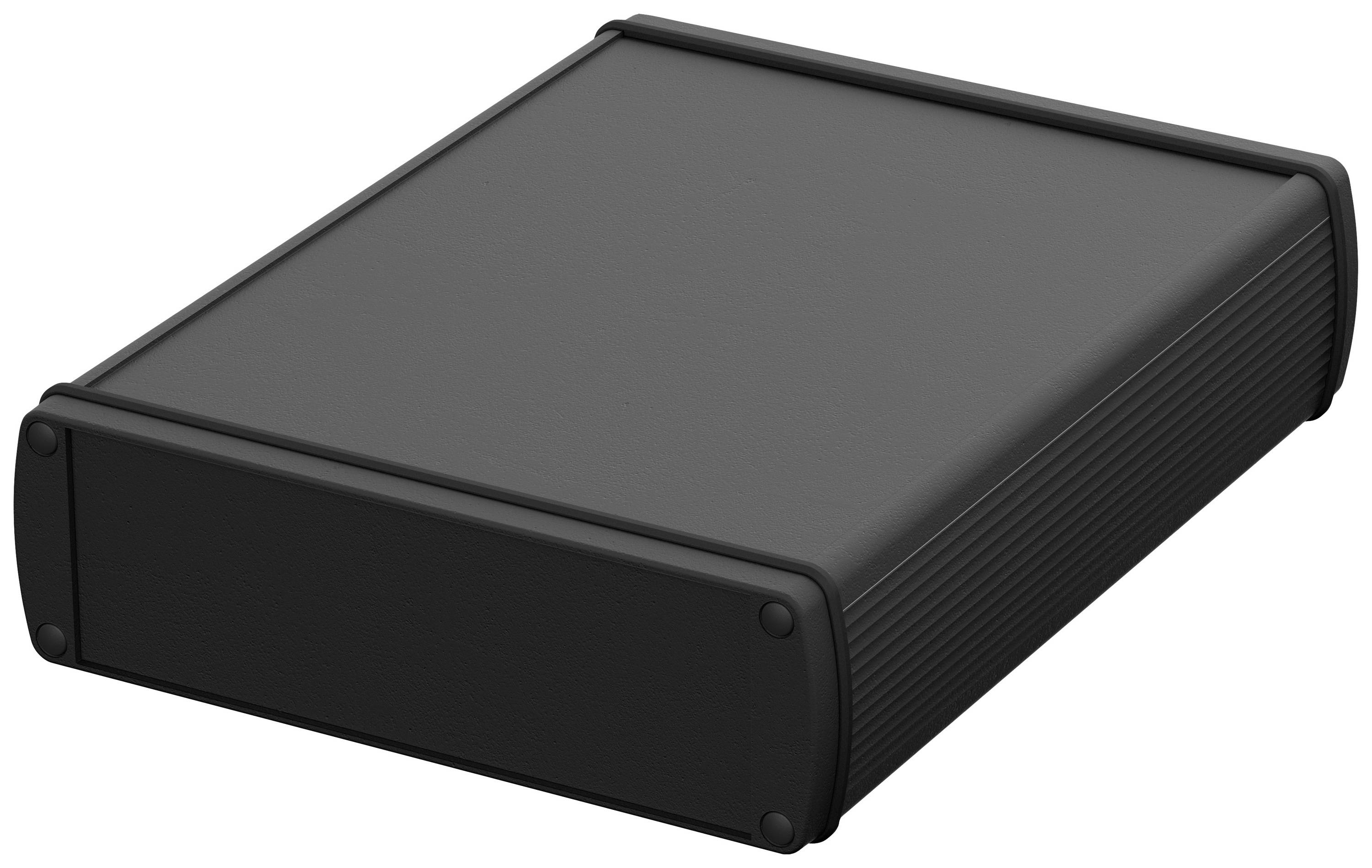

Bopla ABPH 1600-0200 ALUBOS_SET 84166200.HMT1 Universal enclosure 169 x 200 x 52 Aluminium Black (RAL 9005) 1 Set
EAN:
Part number:
Item no:
Product type
Universal enclosure
Material
Aluminium
IP rating
IP65
Width
200 mm
Height
52 mm
Datasheet (PDF)
Number
Total (€ 72.26 / piece)
€ 72.26
plus VAT.
Only 8 Piece(s) available
Highlights & Details
ABPH 1600-0200 ALU OS SET
- Profile case with end coversABD - End cover with a recessed area to accommodate front films or membrane keypadsProtection class IP 65Colour black, similar to RAL 9005
Our service for you
Technical specifications
- Product type
Universal enclosure
- Material
Aluminium
IP65
- Factory colour
Black (RAL 9005)
- Length
169 mm
- Width
200 mm
- Height
52 mm
- Inside width
148 mm
- Inside height
45.8 mm
- Internal depth
200 mm
- Content
1 Set
- Dim
(L x W x H) 169 x 200 x 52 mm
- RoHS-compliant
Yes
- Type
ABPH 1600-0200 ALUBOS_SET
Documents & Downloads
Datasheet
Datasheet 2634524 Bopla ABPH 1600-0200 ALUBOS_SET 84166200.HMT1 Universal enclosure 169 x 200 x 52 Aluminium Black (RAL 9005) 1 Set
Download
Download 2634524 Bopla ABPH 1600-0200 ALUBOS_SET 84166200.HMT1 Universal enclosure 169 x 200 x 52 Aluminium Black (RAL 9005) 1 Set
Download 2634524 Bopla ABPH 1600-0200 ALUBOS_SET 84166200.HMT1 Universal enclosure 169 x 200 x 52 Aluminium Black (RAL 9005) 1 Set
Description
The body of the casing comprises of a powder-coated aluminum profile. Good EMC protection through contact areas that contact the cover to the profile. The recessed profile sides can be used to fit membrane keypads. The side surfaces are ergonomically designed.
This text is machine translated.
This text is machine translated.
Features
- Case material extruded profiles: Al Mg Si 0.5 powder-coated; die-cast cover GD Al Si 12 powder-coated, TPE seal

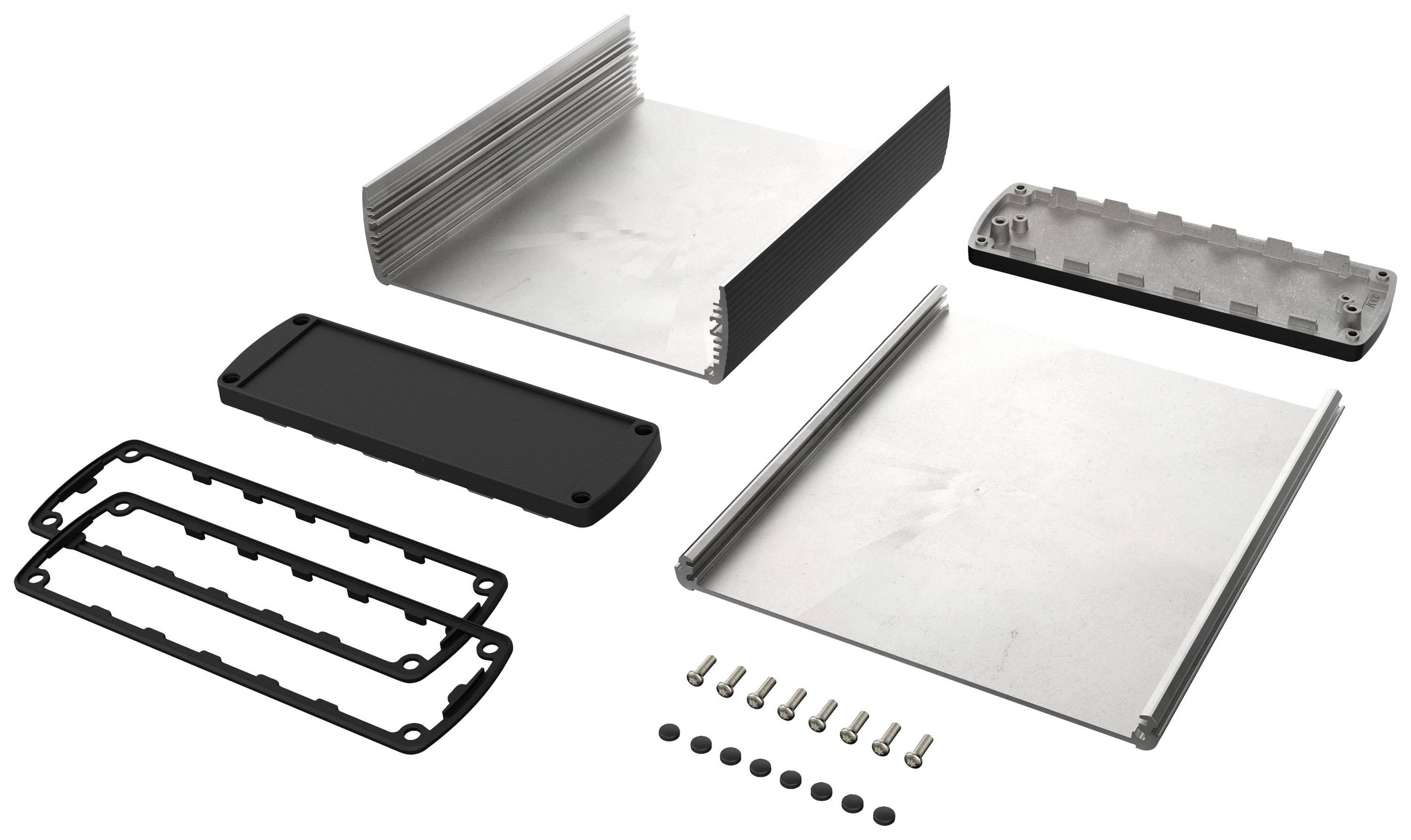

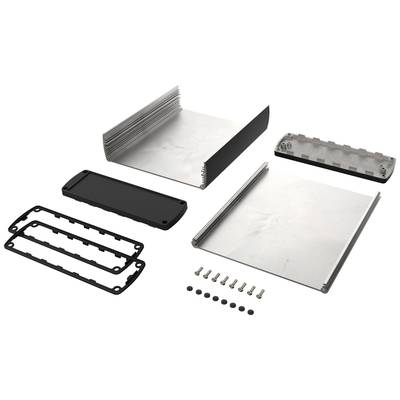

Scope of delivery
- Housing profile2 x cover2 x black seals, screws, black screw covers
