Buy Bopla Alubos ABP 880-0150 SET 84090150.HMT1 Treaded casing 84 x 82 x 150 Aluminium Black (RAL 9005) 1 pc(s)

A rectangular black plastic enclosure with ribbed sides and rounded corners. It has removable end caps.

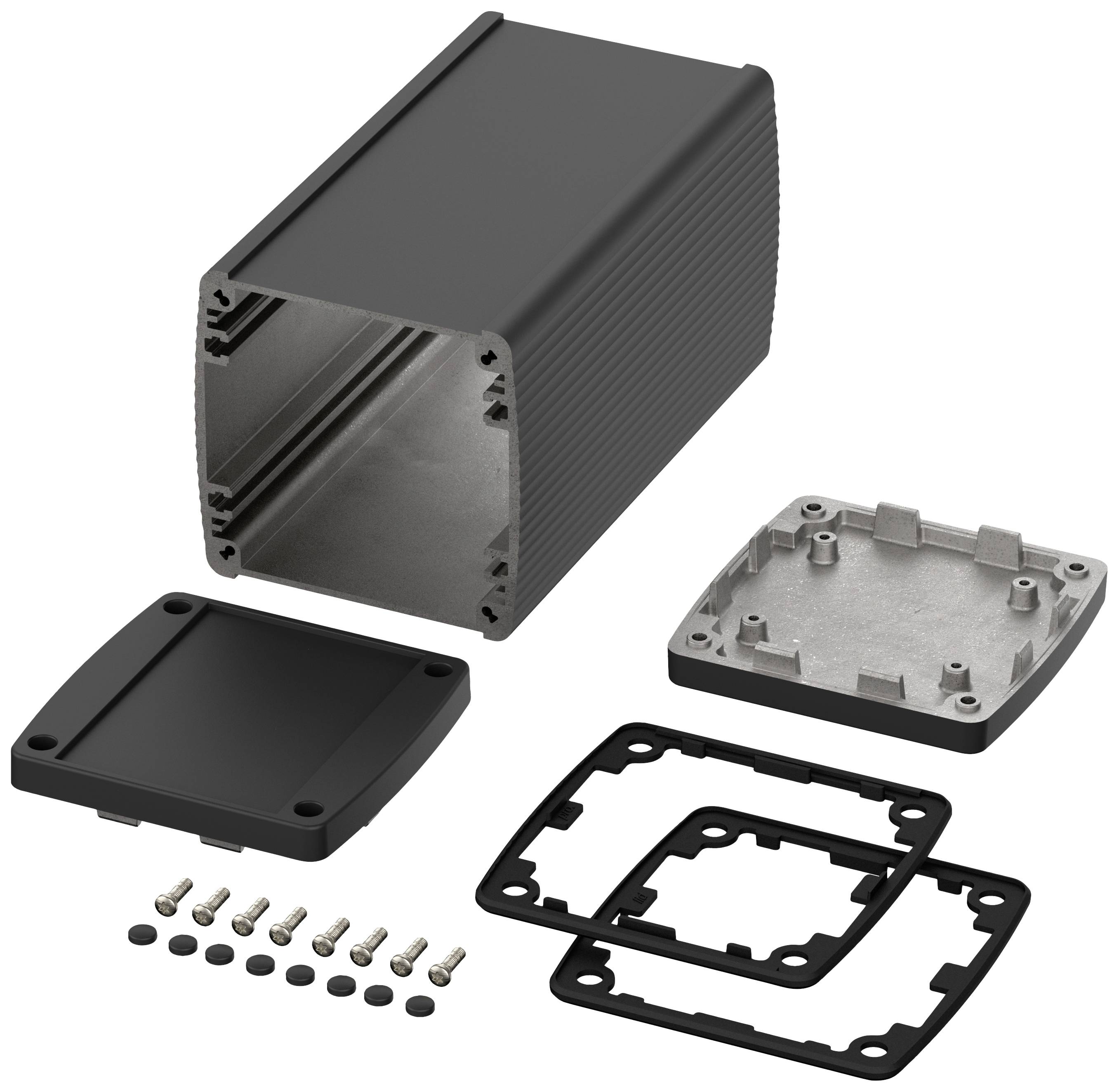

Aluminium enclosure kit comprising an enclosure, multiple covers, screws, and seals, ready for assembly.

1/2

Product type

Treaded casing

Material

Aluminium

IP rating

IP65

Width

82 mm

Height

150 mm

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 50.41 / piece)

€ 50.41

plus VAT.

Report legal concerns

Highlights & Details

Profile case with end covers in IP65

Our service for you

Technical specifications

Temperature resistance --25°C to 110°C.

Product type: Treaded casing

Material: Aluminium

: IP65

Factory colour: Black (RAL 9005)

Length: 84 mm

Width: 82 mm

Height: 150 mm

Inside width: 75 mm

Inside height: 150 mm

Internal depth: 76.50 mm

Content: 1 pc(s)

Dim: (L x W x H) 84 x 82 x 150 mm

RoHS-compliant: Yes

Type: Alubos ABP 880-0150 SET

Documents & Downloads

Datasheet

Datasheet 2796375 Bopla Alubos ABP 880-0150 SET 84090150.HMT1 Treaded casing 84 x 82 x 150 Aluminium Black (RAL 9005) 1 pc(s)

Download

Download 2796375 Bopla Alubos ABP 880-0150 SET 84090150.HMT1 Treaded casing 84 x 82 x 150 Aluminium Black (RAL 9005) 1 pc(s)

Description

The body of the casing comprises of a powder-coated aluminum profile. Good EMC protection through contact areas that contact the cover to the profile. The recessed profile sides can be used to fit membrane keypads. The side surfaces are ergonomically designed. The end covers are equipped with a recessed surface to accommodate front films or membrane keypads.
