Bopla B 233016 ABS-7035 Bocube 96038575 Industrial-grade casing 239 x 300 x 120 Acrylonitrile butadiene styrene Grey-whi
EAN:
Part number:
Item no:
Product type
Industrial-grade casing
Material
Acrylonitrile butadiene styrene
IP rating
IP66
IP68
Width
300 mm
Height
120 mm
Datasheet (PDF)
Number
Total (€ 105.03 / piece)
€ 105.03
plus VAT.
Highlights & Details
B 233016 ABS-7035 Bocube housing
- Thanks to the hinge lock the lid cannot be lost and Ideal can be used as display casingA seal is possible and protects against unwanted accessParticularly suitable for recycling by using grade-pure plastics without die-cast metal partsWall brackets are available for all Bocube sizes. They are screwed into the holes on the bottom of the housingMounting plates and PCBs can be mounted in the lower section as well as in the upper sectionProtection class IP66; IP68- 1.2m (2h)PU foamed sealing
Technical specifications
- Product type
Industrial-grade casing
- Material
Acrylonitrile butadiene styrene
IP66
IP68
- Factory colour
Grey-white (RAL 7035)
- Length
239 mm
- Width
300 mm
- Height
120 mm
- Inside width
288.8 mm
- Inside height
149 mm
- Internal depth
187.4 mm
- Content
1 pc(s)
- Dim
(L x W x H) 239 x 300 x 120 mm
- RoHS-compliant
Yes
- Type
B 233016 ABS-7035 Bocube
- Wireless charging
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2634542 Bopla B 233016 ABS-7035 Bocube 96038575 Industrial-grade casing 239 x 300 x 120 Acrylonitrile butadiene styrene Grey-whi
User & Safety Instructions
User & Safety Instructions 2634542 Bopla B 233016 ABS-7035 Bocube 96038575 Industrial-grade casing 239 x 300 x 120 Acrylonitrile butadiene styrene Grey-whi
Download
Download 2634542 Bopla B 233016 ABS-7035 Bocube 96038575 Industrial-grade casing 239 x 300 x 120 Acrylonitrile butadiene styrene Grey-whi
Download 2634542 Bopla B 233016 ABS-7035 Bocube 96038575 Industrial-grade casing 239 x 300 x 120 Acrylonitrile butadiene styrene Grey-whi
Description
Unique innovative housing solution made of polycarbonate UL 94 V0, which can be used in a variety of applications. All cases have a lowered surface in the cover for mounting membrane keypads. The material PC V-0 is flame-resistant, self-extinguishing and suitable for use outdoors; f1-listing according to UL 746C. The unique, patented hinge lock fulfills a double function: Fast and comfortable mounting of the lid without tools & swivel-up of the lid with freely selectable hinge side. Thanks to the few parts, Bocube is very easy to mount without any tools. Opening using a flat-tip screwdriver.
This text is machine translated.
This text is machine translated.

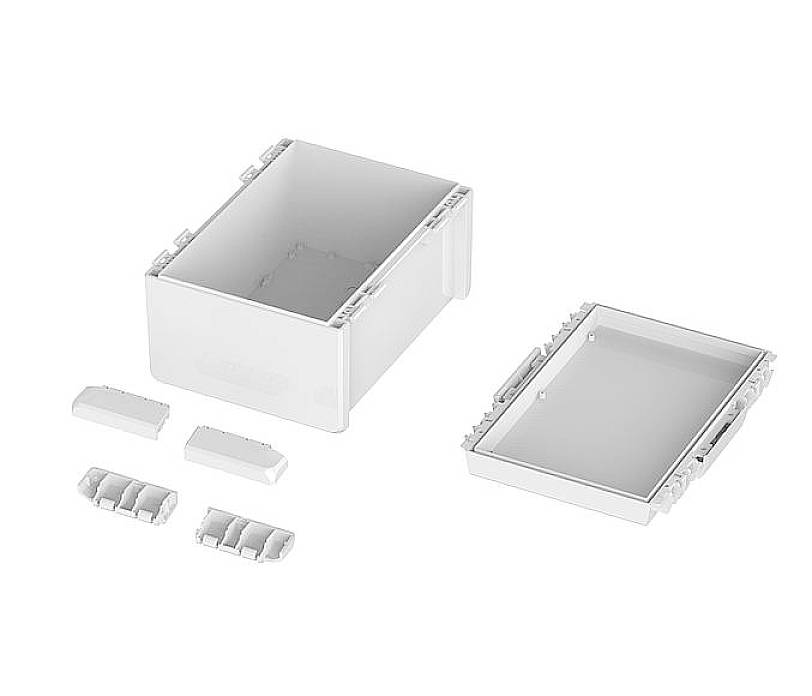

Scope of delivery
- Upper and lower section
- Hinge closures
