Buy Bopla B 261704 PC-V0-G-7024 Bocube Gehäuse 96026344 Outdoor casing 271 x 170 x 40 Polycarbonate V0 Graphite grey (RAL 70

Grey plastic case with a transparent lid, rectangular in shape. Suitable for storing small items or documents.

A transparent, open plastic container with a black lid, pivoted at a diagonal angle, on a white background.

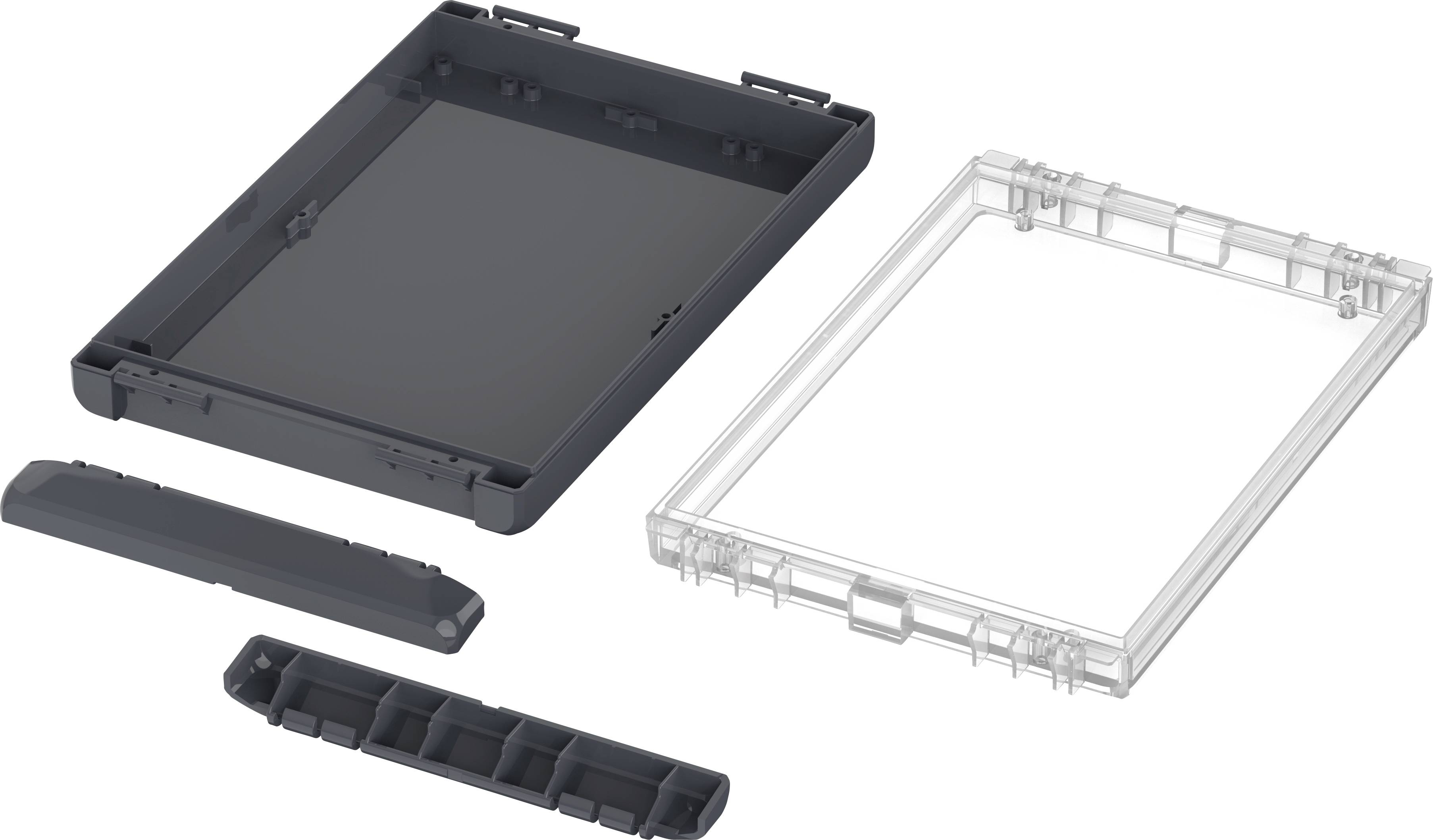

'Exploded diagram of a housing with removable covers. Shows various components such as frame and covers from different perspectives.'

1/3

Product type

Outdoor casing

Material

Polycarbonate V0

IP rating

IP66

Width

170 mm

Height

40 mm

Datasheet (PDF)

Sales and shipping:

Number

Piece(s)

Total (€ 34.45 / piece)

€

Report legal concerns

Highlights & Details

Due to the few parts, Bocube can be easily and easily installed by hand. Open using a flat-blade screwdriver
All housings have a lowered surface in the cover for mounting membrane keypads
The lid is captive thanks to the hinge cap and ideal for use as a display case
Wall brackets are available for all sizes of Bocube. They are screwed into the holes at the rear of the lower part of the housing
Rectangular front plates or PCBs can be mounted in the lower part (by means of spacer bolts) as well as in the upper part

Technical specifications

Product type: Outdoor casing

Features: Cover (clear)

Material: Polycarbonate V0

: IP66

Factory colour: Graphite grey (RAL 7024)

Length: 271 mm

Width: 170 mm

Height: 40 mm

Inside width: 163.8 mm

Inside height: 31.5 mm

Internal depth: 234.8 mm

Content: 1 pc(s)

Dim: (L x W x H) 271 x 170 x 40 mm

RoHS-compliant: Yes

Weight: 404 g

Type: B 261704 PC-V0-G-7024 Bocube Gehäuse

Wireless charging: Yes

Variants(All information is without VAT, plus shipping costs)

Length/depth

Factory colour

Width

Dim

Height

Bopla B 261704 PC-V0-G-7024 Bocube Gehäuse 96026344 Outdoor casing 271 x 170 x 40 Polycarbonate V0 Graphite grey (RAL 7024) 1 pc(s)

Item no:2384452

This article

271 mm

Graphite grey (RAL 7024)

170 mm

(L x W x H) 271 x 170 x 40 mm

40 mm

Bopla B 100804 PC-V0-G-7024 Bocube Gehäuse 96022144 Outdoor casing 113 x 80 x 40 Polycarbonate V0 Graphite grey (RAL 7024) 1 pc(s)

Item no:2384436

113 mm

Graphite grey (RAL 7024)

80 mm

(L x W x H) 113 x 80 x 40 mm

40 mm

Bopla B 100804 PC-V0-G-7035 Bocube Gehäuse 96022145 Outdoor casing 113 x 80 x 40 Polycarbonate V0 Grey-white (RAL 7035) 1 pc(s)

Item no:2384437

113 mm

Grey-white (RAL 7035)

80 mm

(L x W x H) 113 x 80 x 40 mm

40 mm

Bopla B 140804 PC-V0-G-7024 Bocube Gehäuse 96023144 Outdoor casing 151 x 80 x 40 Polycarbonate V0 Graphite grey (RAL 7024) 1 pc(s)

Item no:2384438

151 mm

Graphite grey (RAL 7024)

80 mm

(L x W x H) 151 x 80 x 40 mm

40 mm

Bopla B 140804 PC-V0-G-7035 Bocube Gehäuse 96023145 Outdoor casing 151 x 80 x 40 Polycarbonate V0 Grey-white (RAL 7035) 1 pc(s)

Item no:2384439

151 mm

Grey-white (RAL 7035)

80 mm

(L x W x H) 151 x 80 x 40 mm

40 mm

Bopla B 180806 PC-V0-G-7024 Bocube Gehäuse 96024124 Outdoor casing 191 x 80 x 60 Polycarbonate V0 Graphite grey (RAL 7024) 1 pc(s)

Item no:2384440

191 mm

Graphite grey (RAL 7024)

80 mm

(L x W x H) 191 x 80 x 60 mm

60 mm

Bopla B 180806 PC-V0-G-7035 Bocube Gehäuse 96024125 Outdoor casing 191 x 80 x 60 Polycarbonate V0 Grey-white (RAL 7035) 1 pc(s)

Item no:2384441

191 mm

Grey-white (RAL 7035)

80 mm

(L x W x H) 191 x 80 x 60 mm

60 mm

Bopla B 180809 PC-V0-G-7024 Bocube Gehäuse 96024134 Outdoor casing 191 x 80 x 90 Polycarbonate V0 Graphite grey (RAL 7024) 1 pc(s)

Item no:2384442

191 mm

Graphite grey (RAL 7024)

80 mm

(L x W x H) 191 x 80 x 90 mm

90 mm

Bopla B 180809 PC-V0-G-7035 Bocube Gehäuse 96024135 Outdoor casing 191 x 80 x 90 Polycarbonate V0 Grey-white (RAL 7035) 1 pc(s)

Item no:2384443

191 mm

Grey-white (RAL 7035)

80 mm

(L x W x H) 191 x 80 x 90 mm

90 mm

Bopla B 181306 PC-V0-G-7024 Bocube Gehäuse 96024224 Outdoor casing 191 x 125 x 60 Polycarbonate V0 Graphite grey (RAL 7024) 1 pc(s)

Item no:2384444

191 mm

Graphite grey (RAL 7024)

125 mm

(L x W x H) 191 x 125 x 60 mm

60 mm

Documents & Downloads

Datasheet

Datasheet 2384452 Bopla B 261704 PC-V0-G-7024 Bocube Gehäuse 96026344 Outdoor casing 271 x 170 x 40 Polycarbonate V0 Graphite grey (RAL 70

User & Safety Instructions

User & Safety Instructions 2384452 Bopla B 261704 PC-V0-G-7024 Bocube Gehäuse 96026344 Outdoor casing 271 x 170 x 40 Polycarbonate V0 Graphite grey (RAL 70

Download

Download 2384452 Bopla B 261704 PC-V0-G-7024 Bocube Gehäuse 96026344 Outdoor casing 271 x 170 x 40 Polycarbonate V0 Graphite grey (RAL 70

Description

Unique innovative, versatile housing solution made of polycarbonate UL 94 V0

This text is machine translated.

Scope of delivery

Upper and lower part, hinge caps

Hints

The material PC UL 94 V0 is suitable for outdoor use (F1 listing according to UL 746C) and corresponds to the requirement set R 22 according to DIN EN 45545-2 of the hazard level HL44
