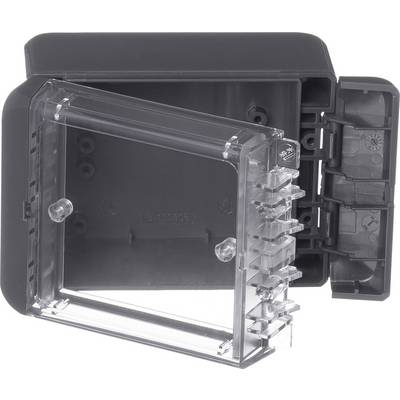

Bopla Bocube B 100806 PC-V0-G-7024 96022124 Outdoor casing 80 x 113 x 60 Polycarbonate V0 Graphite grey (RAL 7024) 1 pc(
EAN:
Part number:
Item no:
Product type
Outdoor casing
Material
Polycarbonate V0
IP rating
IP66
IP68
Width
113 mm
Height
60 mm
Datasheet (PDF)
10 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 29.40
3
4% = € 1.27
€ 28.13
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 29.40 / piece)
€
Only 10 Piece(s) available
Highlights & Details
Installation housing Bocube
- Installation without any tools
Technical specifications
- Product type
Outdoor casing
- Material
Polycarbonate V0
IP66
IP68
- Factory colour
Graphite grey (RAL 7024)
- Length
80 mm
- Width
113 mm
- Height
60 mm
- Inside width
73.6 mm
- Inside height
52 mm
- Internal depth
76.4 mm
- Content
1 pc(s)
- Dim
(L x W x H) 80 x 113 x 60 mm
- RoHS-compliant
Yes
- Type
Bocube B 100806 PC-V0-G-7024
Documents & Downloads
Datasheet
Datasheet 706720 Bopla Bocube B 100806 PC-V0-G-7024 96022124 Outdoor casing 80 x 113 x 60 Polycarbonate V0 Graphite grey (RAL 7024) 1 pc(
User & Safety Instructions
User & Safety Instructions 706720 Bopla Bocube B 100806 PC-V0-G-7024 96022124 Outdoor casing 80 x 113 x 60 Polycarbonate V0 Graphite grey (RAL 7024) 1 pc(
Download
Download 706720 Bopla Bocube B 100806 PC-V0-G-7024 96022124 Outdoor casing 80 x 113 x 60 Polycarbonate V0 Graphite grey (RAL 7024) 1 pc(
Download 706720 Bopla Bocube B 100806 PC-V0-G-7024 96022124 Outdoor casing 80 x 113 x 60 Polycarbonate V0 Graphite grey (RAL 7024) 1 pc(
Description
New, innovative and elegant housing system, which the user through different features many advantages during installation and handling.
This text is machine translated.
This text is machine translated.

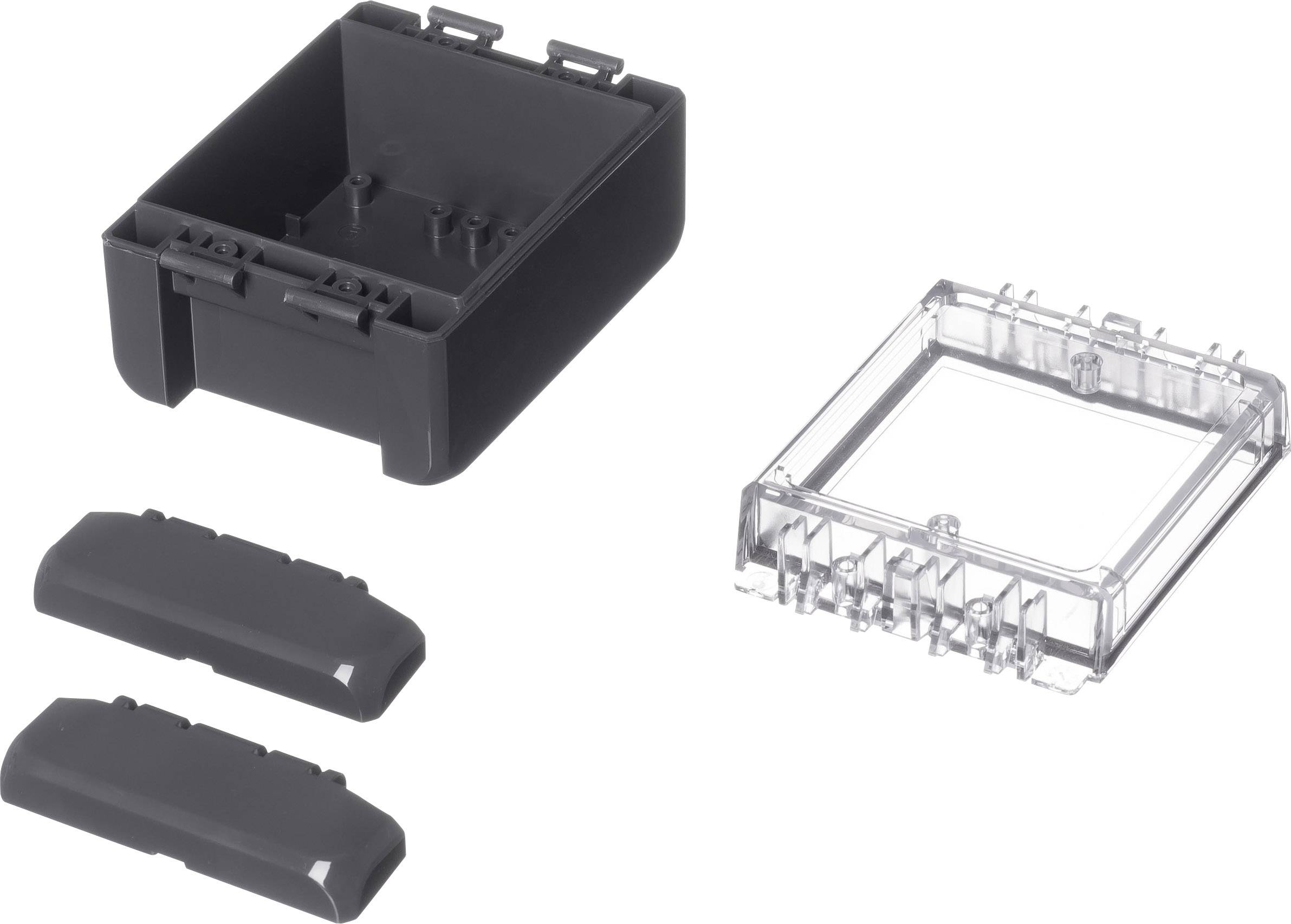

Scope of delivery
- Upper and lower sections
- Hinge locks.
