Buy Bopla "BoVersa 48144305.HMT3" Industrial-grade casing (L x W x H) 216 x 120 x 55.5 mm Aluminium Black 1 pc(s)

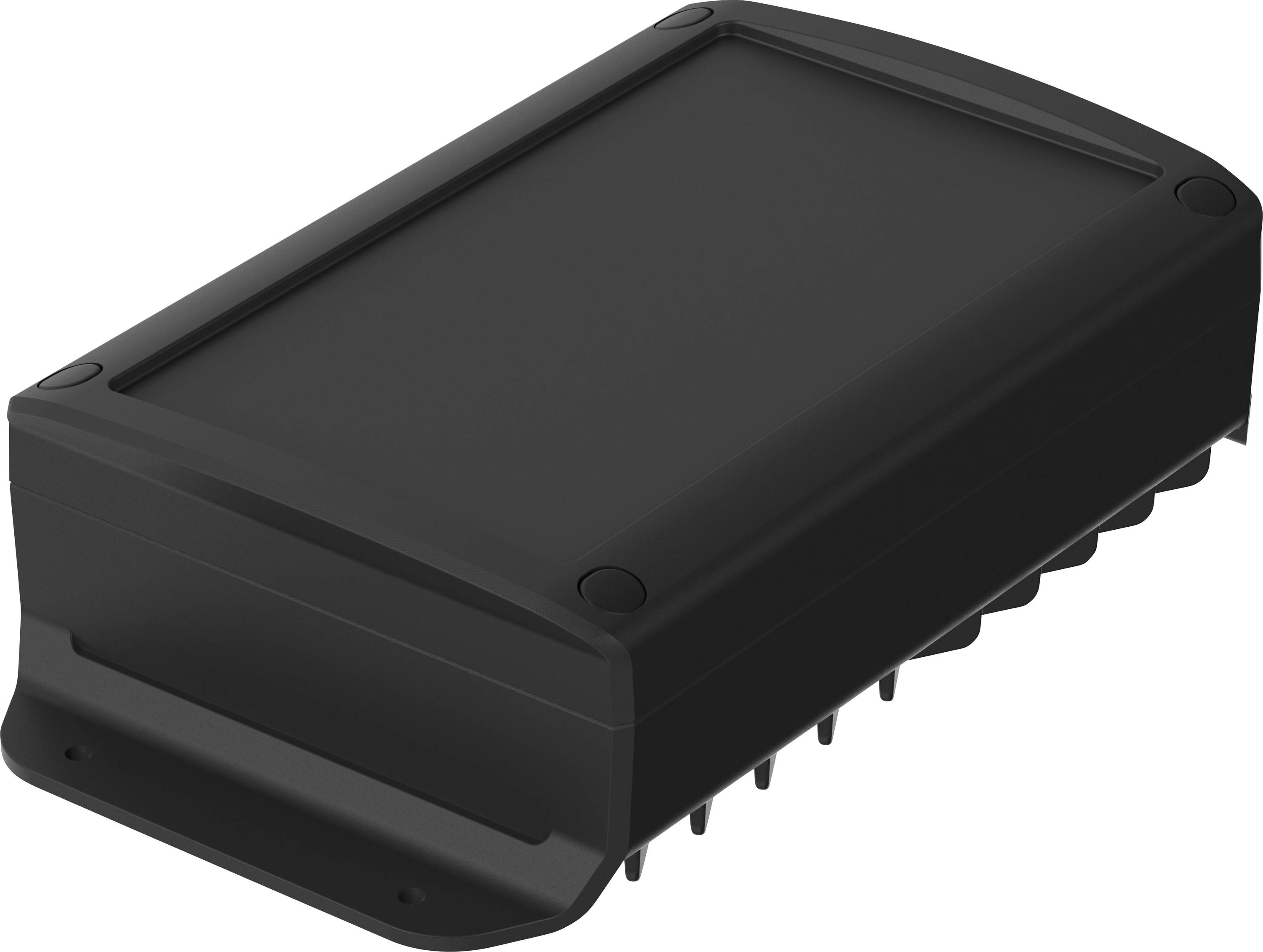

A black rectangular electronic device with a slightly curved top and four small screws at the corners, resting on a flat surface.

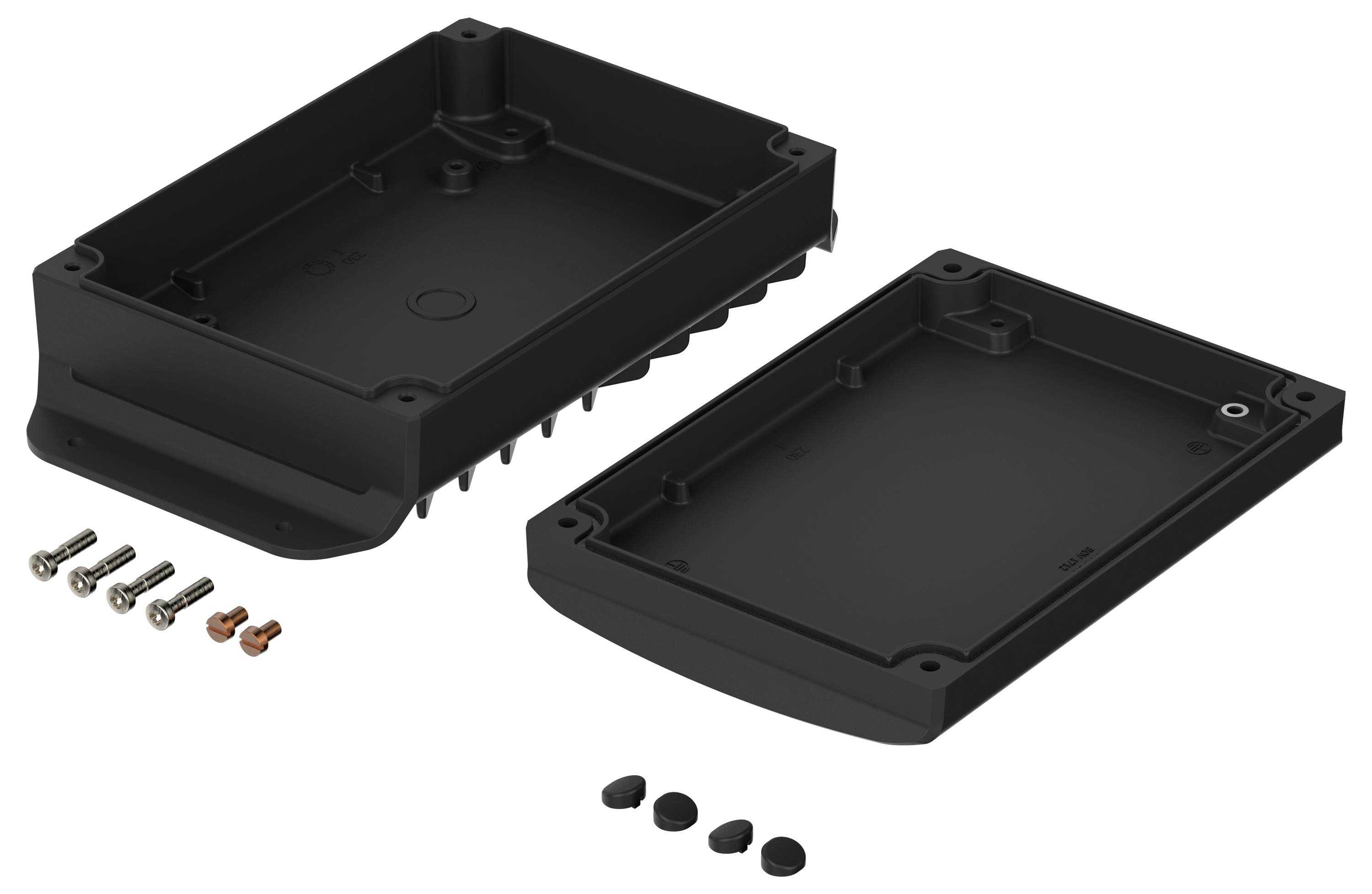

A two-part black plastic casing for electronic components, featuring screw holes and an open interior. Includes screws and rubber stoppers.

1/2

Product type

Industrial-grade casing

Material

Aluminium

IP rating

IP66

IP68

Width

120 mm

Height

55.5 mm

Datasheet (PDF)

Fast track dispatch on Wed, 23 Sep

4 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 39.49 / piece)

€ 39.49

plus VAT.

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

BoVersa BOV-A KWL 171204-9005, set, 216 x 120 x 55.5mm, aluminum, black, similar RAL 9005

Protection class IP66 / 68 (1.2 m - 2 h)
Impact strength: IK08
Temperature resistance: -30°C to 100°C.
Colour similar to black. RAL 9005
Made from aluminum alloy
Upper part with foil surface, lower part with cooling ribs and wall brackets

Technical specifications

Product type: Industrial-grade casing

Features: with bracket
with cooling fins

Material: Aluminium

: IP66
IP68

Factory colour: Black

Type: Closed, with opaque cover

Length: 216 mm

Width: 120 mm

Height: 55.5 mm

Dimensions: Außenmaße nach DIN-Norm

Compatible with (details): Electronic components, terminal strips, control technology

Content: 1 pc(s)

Industrial packaging: Yes

Dim: (L x W x H) 216 x 120 x 55.5 mm

Weight: 340 g

Type: "BoVersa 48144305.HMT3"

Documents & Downloads

Datasheet

Datasheet 3720722 Bopla "BoVersa 48144305.HMT3" Industrial-grade casing (L x W x H) 216 x 120 x 55.5 mm Aluminium Black 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3720722 Bopla "BoVersa 48144305.HMT3" Industrial-grade casing (L x W x H) 216 x 120 x 55.5 mm Aluminium Black 1 pc(s)

Description

The completely new and advanced housing concept, with modern design, offers flexible and customer-specific design options including lighting concept and forward-looking cooling for the version with aluminum base. The casing can be used for applications in the hand, on the table, at the wall or at the mast. The housing provides optimum conditions for, among other things, Internet of Things or Embedded systems.

This text is machine translated.
