Buy Bopla CN 70 AK-SET DIN rail casing 70 x 75 x 109.5 Acrylonitrile butadiene styrene Grey-white (RAL 7035) 1 pc(s)

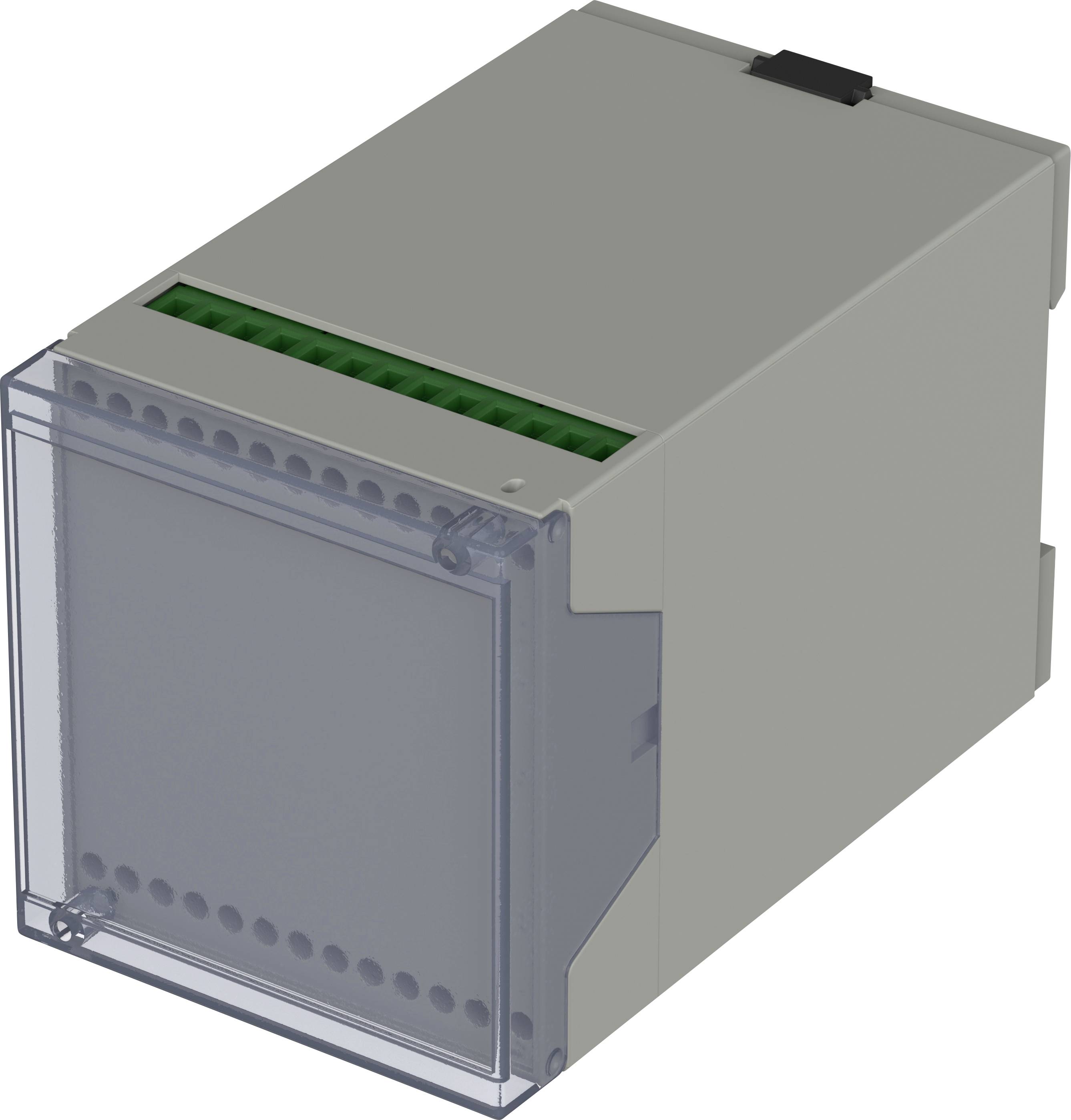

A grey, cuboid electronic device with a transparent plastic lid and a row of green connectors on top.

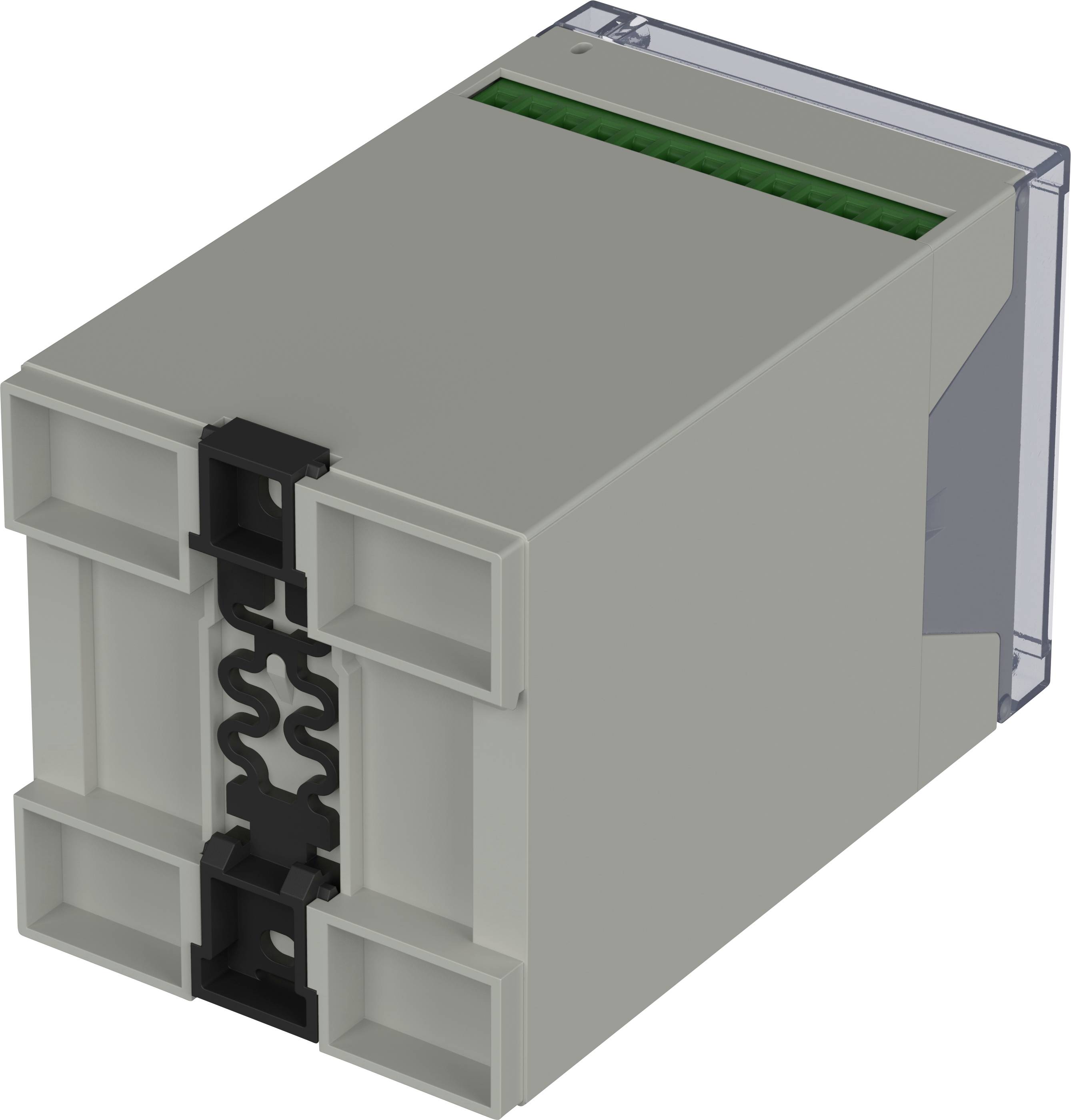

A grey plastic enclosure with multiple chambers and black mounting on the front; suitable for electronic components.

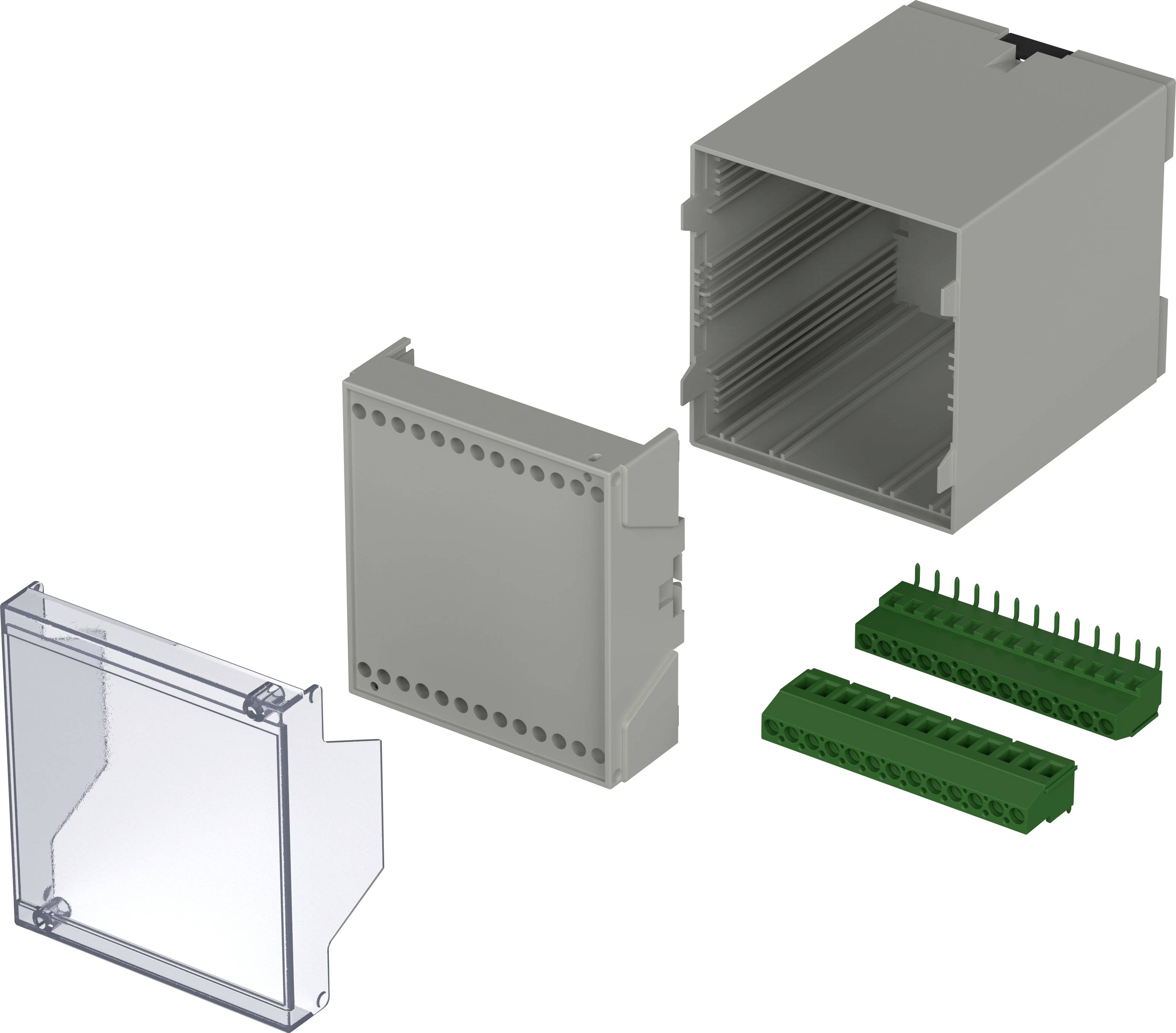

Electronic Enclosure Kit: grey main housing, transparent cover, two green plug-in modules.

1/3

Material

Acrylonitrile butadiene styrene

IP rating

IP40

Width

75 mm

Height

109.5 mm

Content

1 pc(s)

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 26.04 / piece)

€ 26.04

plus VAT.

Report legal concerns

Highlights & Details

This newly developed plastic small control case system can be used in numerous possible applications but the system is particularly suited for horizontal and vertical circuit board assembly using connection terminals which make good, quick and simple contacts.

Our service for you

Technical specifications

Material: Acrylonitrile butadiene styrene

: IP40

Factory colour: Grey-white (RAL 7035)

Length: 70 mm

Width: 75 mm

Height: 109.5 mm

Content: 1 pc(s)

Dim: (L x W x H) 70 x 75 x 109.5 mm

RoHS-compliant: Yes

Type: CN 70 AK-SET

Weight: 92 g

Product type: DIN rail casing

Documents & Downloads

Datasheet

Datasheet 2384355 Bopla CN 70 AK-SET DIN rail casing 70 x 75 x 109.5 Acrylonitrile butadiene styrene Grey-white (RAL 7035) 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2384355 Bopla CN 70 AK-SET DIN rail casing 70 x 75 x 109.5 Acrylonitrile butadiene styrene Grey-white (RAL 7035) 1 pc(s)

Download

Download 2384355 Bopla CN 70 AK-SET DIN rail casing 70 x 75 x 109.5 Acrylonitrile butadiene styrene Grey-white (RAL 7035) 1 pc(s)

Description

Combinorm case 70 AK transparent cover incl. clamps

This text is machine translated.

Features

The upper and lower sections are attached using a clip-on fastening. There are no screw connections whatsoever (Bopla environmental concept) because all parts are snapped in. The housing can be mounted on the wall with the help of a new snap-on base on a TS 35 top-hat rail or directly without visible screws. (When fitting on a wall, simply turn the snap foot). There is also a recess on the upper case section for attaching membrane keypads.
The connection terminals are for horizontally inserted circuit boards

Scope of delivery

1 x housing, lower part with drive rail (mounted), 1 x cover hood, 2 x connection clamps 13-pin

Hints

Maximum load when mounted on the mounting rail, no vibrations 400Ncm
