Buy Bopla COMBINORM CN 22 AK Combo standard casing Cover (clear) 22.5 x 75 x 109.5 Acrylonitrile butadiene styrene Grey-whit

A white enclosure with a transparent plastic lid, suitable for mounting on a DIN rail in electrical installations.

Image similar

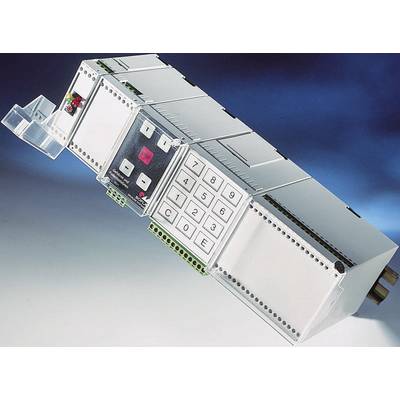

An electronic device with a keypad and digital displays, mounted on a DIN rail, against a blue background.

1/2

Image similar

Material

Acrylonitrile butadiene styrene

Width

22.5 mm

Height

75 mm

Content

1 pc(s)

Product type

Combo standard casing

Datasheet (PDF)

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 10.92 / piece)

€

Report legal concerns

Technical specifications

Features: Cover (clear)

Material: Acrylonitrile butadiene styrene

Factory colour: Grey-white (RAL 7035)

Type: Safety cap: Polycarbonate, snap-on, crystal clear

Width: 22.5 mm

Height: 75 mm

Compatible with (details): 2 x 4 screw clamps

Content: 1 pc(s)

Dim: (W x H x D) 22.5 x 75 x 109.5 mm

RoHS-compliant: Yes

Depth: 109.5 mm

Type: COMBINORM CN 22 AK

Material (details): ABS

Product type: Combo standard casing

Documents & Downloads

Datasheet

Datasheet 541230 Bopla COMBINORM CN 22 AK Combo standard casing Cover (clear) 22.5 x 75 x 109.5 Acrylonitrile butadiene styrene Grey-whit

User & Safety Instructions

User & Safety Instructions 541230 Bopla COMBINORM CN 22 AK Combo standard casing Cover (clear) 22.5 x 75 x 109.5 Acrylonitrile butadiene styrene Grey-whit

Download

Download 541230 Bopla COMBINORM CN 22 AK Combo standard casing Cover (clear) 22.5 x 75 x 109.5 Acrylonitrile butadiene styrene Grey-whit

Description

This new plastic small control case system can be used in a variety of applications but the system is particularly suited for horizontal and vertical circuit board assembly using connection terminals which make good, quick and simple contacts.

Features

The upper and lower sections are attached using a clip-on fastening. There are no screw connections whatsoever (Bopla environmental concept) because all parts are snapped in. The case can be fitted to a top hat rail TS 35 (accessory part no. 74 31 43-LA, 2 metres in length) with the help of a new kind of snap foot or can be fitted directly on the wall without any visible screws. (When fitting on a wall, simply turn the snap foot). There is also a recess on the upper case section for attaching membrane keypads.
