Buy Bopla Element E 406 05406000 Electronics casing 65 x 50 x 30 Polystyrene Grey-white (RAL 7035), Graphite grey (RAL 7024)

A grey and black rectangular block in a minimalist design.

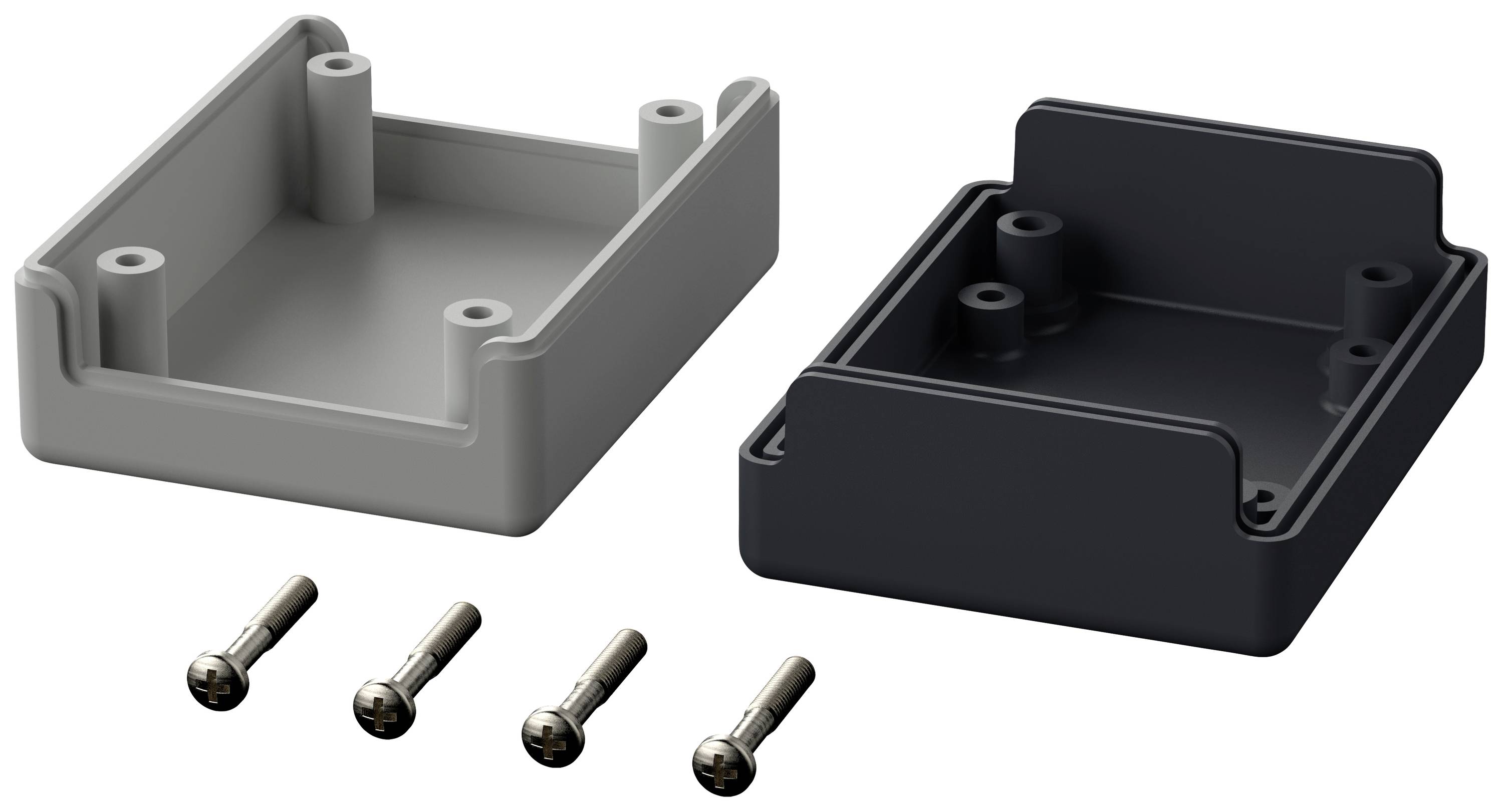

Two plastic housing parts, one grey and one black, arranged side by side. Four metal screws are placed in front of them.

Rectangular, dark plastic enclosure with rounded corners and silver-grey sides, suitable for electronic components.

1/3

Product type

Electronics casing

Material

Polystyrene

IP rating

IP40

Width

50 mm

Height

30 mm

Datasheet (PDF)

Fast track dispatch on Mon, 14 Sep

12 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 10.92 / piece)

€ 10.92

plus VAT.

Report legal concerns

Highlights & Details

Electronics case, which offers a comfortable installation in the interior thanks to its special geometry of the half shells

Our service for you

Technical specifications

Product type: Electronics casing

Material: Polystyrene

: IP40

Factory colour: Grey-white (RAL 7035)
Graphite grey (RAL 7024)

Length: 65 mm

Width: 50 mm

Height: 30 mm

Inside width: 44 mm

Inside height: 24 mm

Internal depth: 59 mm

Content: 1 pc(s)

Dim: (L x W x H) 65 x 50 x 30 mm

RoHS-compliant: Yes

Type: Element E 406

Wireless charging: Yes

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2796400 Bopla Element E 406 05406000 Electronics casing 65 x 50 x 30 Polystyrene Grey-white (RAL 7035), Graphite grey (RAL 7024)

User & Safety Instructions

User & Safety Instructions 2796400 Bopla Element E 406 05406000 Electronics casing 65 x 50 x 30 Polystyrene Grey-white (RAL 7035), Graphite grey (RAL 7024)

Download

Download 2796400 Bopla Element E 406 05406000 Electronics casing 65 x 50 x 30 Polystyrene Grey-white (RAL 7035), Graphite grey (RAL 7024)

Description

The case consists of two identical half shells which are simply locked with each other. By the screw connection from below no disturbing screws are visible in the application. The cover can be removed due to the front panel sprayed on the lower part of the housing without having to disassemble the electronics. Upper section similar to light gray RAL 7035, lower section graphite gray similar. RAL 7024 PROTECTION CLASS IP30 / DIN EN 60529.

This text is machine translated.
