Buy Bopla Element E 434 S 05434000 Electronics casing 188 x 110 x 40 Polystyrene Grey-white (RAL 7035), Graphite grey (RAL 7

Grey rectangular enclosure with rounded edges, suitable for electronic components.

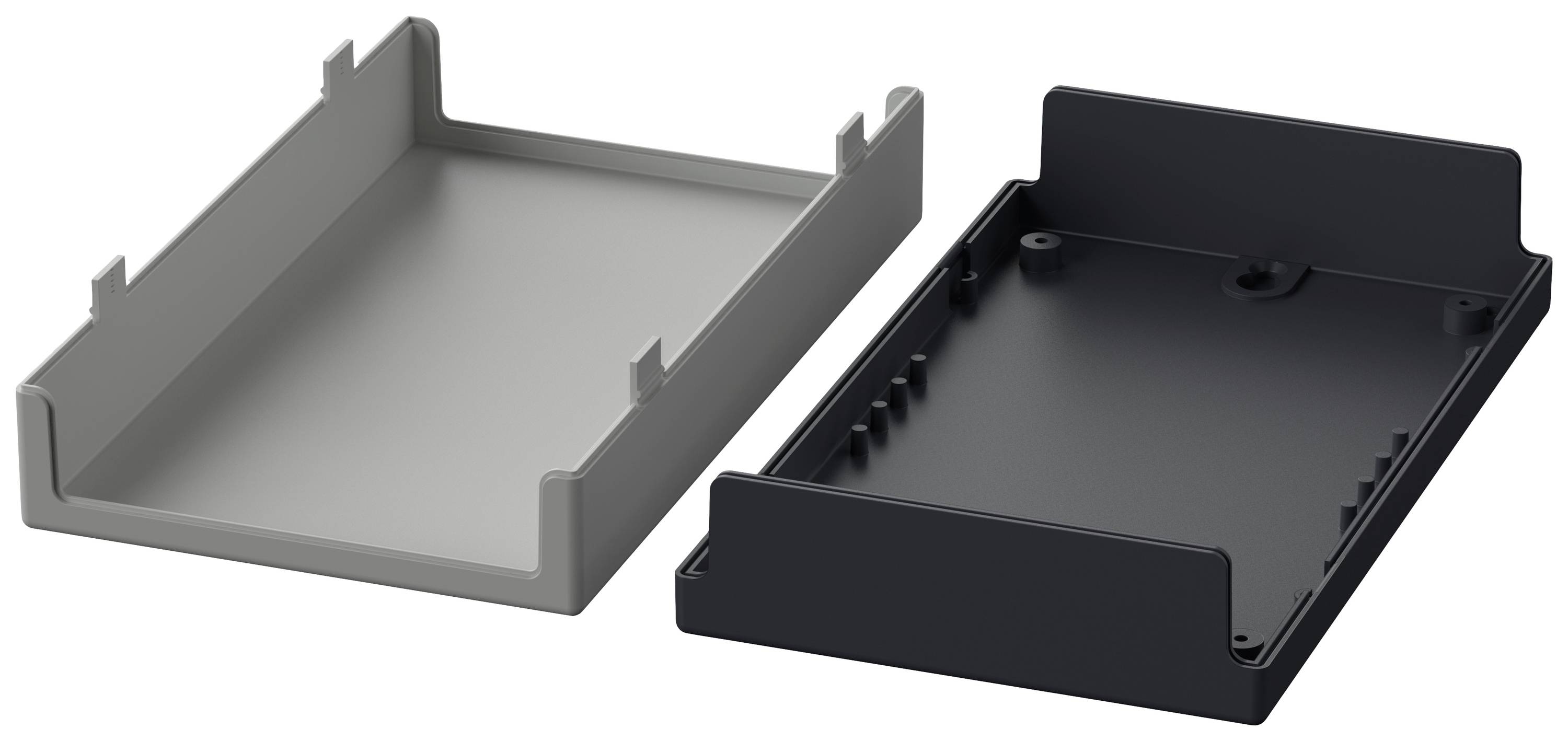

Two empty, rectangular plastic casings in grey and black, standing side by side, with raised edges on the sides.

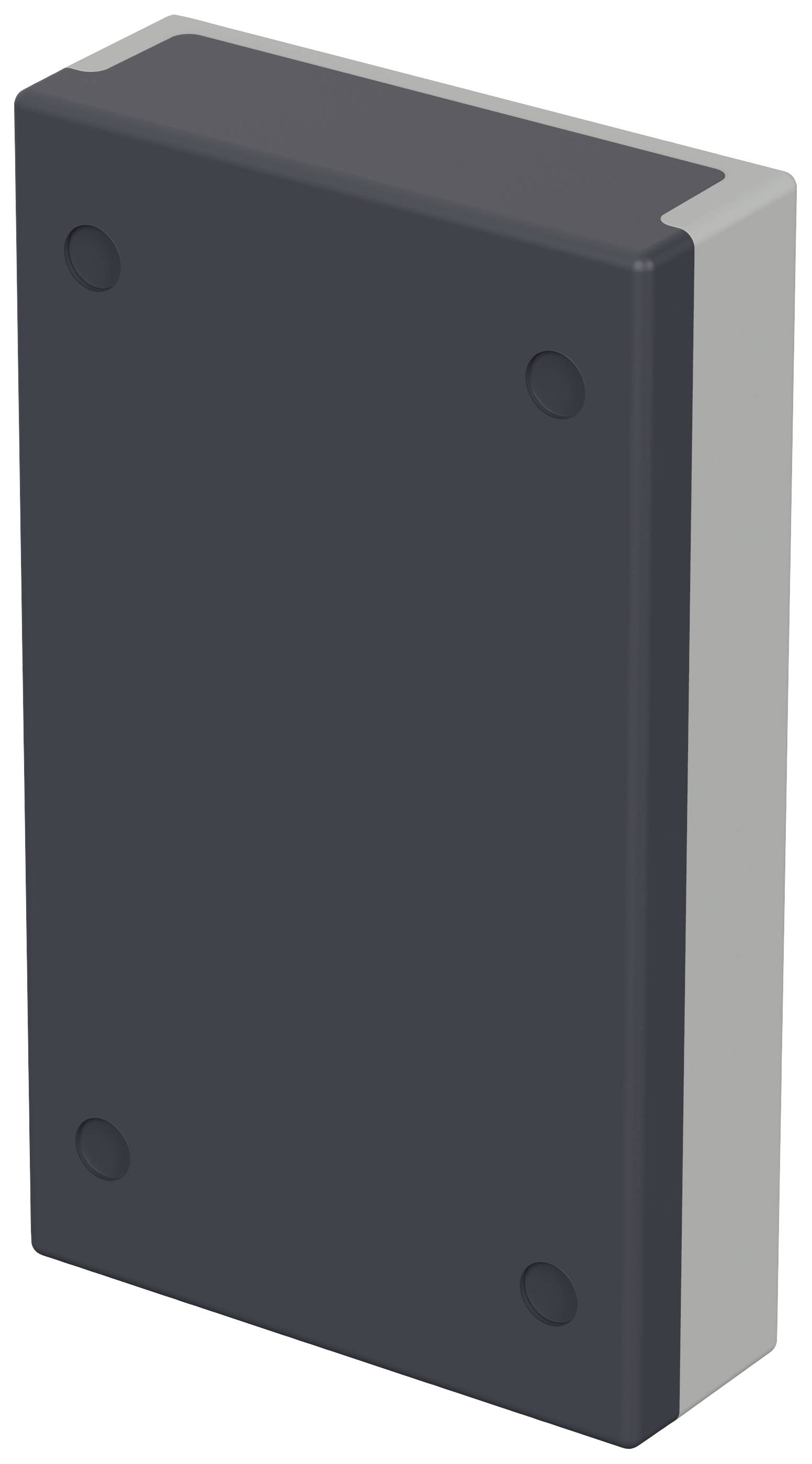

A rectangular, black device with rounded corners and four small round protrusions on the front.

1/3

Product type

Electronics casing

Material

Polystyrene

IP rating

IP40

Width

110 mm

Height

40 mm

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 21.00 / piece)

€ 21.00

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Temperature resistance --10°C to +65°C.

Product type: Electronics casing

Material: Polystyrene

: IP40

Factory colour: Grey-white (RAL 7035)
Graphite grey (RAL 7024)

Length: 188 mm

Width: 110 mm

Height: 40 mm

Inside width: 104 mm

Inside height: 34 mm

Internal depth: 182 mm

Content: 1 pc(s)

Dim: (L x W x H) 188 x 110 x 40 mm

Type: Element E 434 S

Wireless charging: Yes

Documents & Downloads

Datasheet

Datasheet 2995321 Bopla Element E 434 S 05434000 Electronics casing 188 x 110 x 40 Polystyrene Grey-white (RAL 7035), Graphite grey (RAL 7

User & Safety Instructions

User & Safety Instructions 2995321 Bopla Element E 434 S 05434000 Electronics casing 188 x 110 x 40 Polystyrene Grey-white (RAL 7035), Graphite grey (RAL 7

Download

Download 2995321 Bopla Element E 434 S 05434000 Electronics casing 188 x 110 x 40 Polystyrene Grey-white (RAL 7035), Graphite grey (RAL 7

Description

Features

Electronics case made of durable polystyrene in light gray/graphite gray
The cases are locked using the molded snap-on fasteners
The cover can be removed using the molded front panel on the lower part without having to disassemble the electronics
Temperature resistance: -10°C to 65°C.
This text is machine translated.
