Bopla EUROMAS A 102 01102000 Industrial-grade casing 98 x 64 x 34 Aluminium Silver-grey (RAL 7001) 1 pc(s)
EAN:
Part number:
Item no:
Product type
Industrial-grade casing
Material
Aluminium
IP rating
IP66
IK09
Width
64 mm
Height
34 mm
Datasheet (PDF)
37 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 21.00
3
4% = € 0.92
€ 20.08
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 21.00 / piece)
€
Highlights & Details
Bopla EUROMAS A 102 01102000 Industrial-grade casing 98 x 64 x 34 Aluminium Silver-grey (RAL 7001) 1 pc(s)
- Aluminium enclosure
- IP66, IK09 protection
- Silver-grey (RAL 7001)
- 98 x 64 x 34 mm external dimensions
Technical specifications
- Temperature resistance -40°C to 90°C.
- Product type
Industrial-grade casing
- Material
Aluminium
IP66
IK09
- Factory colour
Silver-grey (RAL 7001)
- Length
98 mm
- Width
64 mm
- Height
34 mm
- Inside width
56.8 mm
- Inside height
28.5 mm
- Internal depth
74 mm
- Content
1 pc(s)
- Dim
(L x W x H) 98 x 64 x 34 mm
- RoHS-compliant
Yes
- Type
EUROMAS A 102
- Material (details)
Aluminium
Documents & Downloads
Datasheet
Datasheet 543683 Bopla EUROMAS A 102 01102000 Industrial-grade casing 98 x 64 x 34 Aluminium Silver-grey (RAL 7001) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 543683 Bopla EUROMAS A 102 01102000 Industrial-grade casing 98 x 64 x 34 Aluminium Silver-grey (RAL 7001) 1 pc(s)
Download
Download 543683 Bopla EUROMAS A 102 01102000 Industrial-grade casing 98 x 64 x 34 Aluminium Silver-grey (RAL 7001) 1 pc(s)
Download 543683 Bopla EUROMAS A 102 01102000 Industrial-grade casing 98 x 64 x 34 Aluminium Silver-grey (RAL 7001) 1 pc(s)
Description

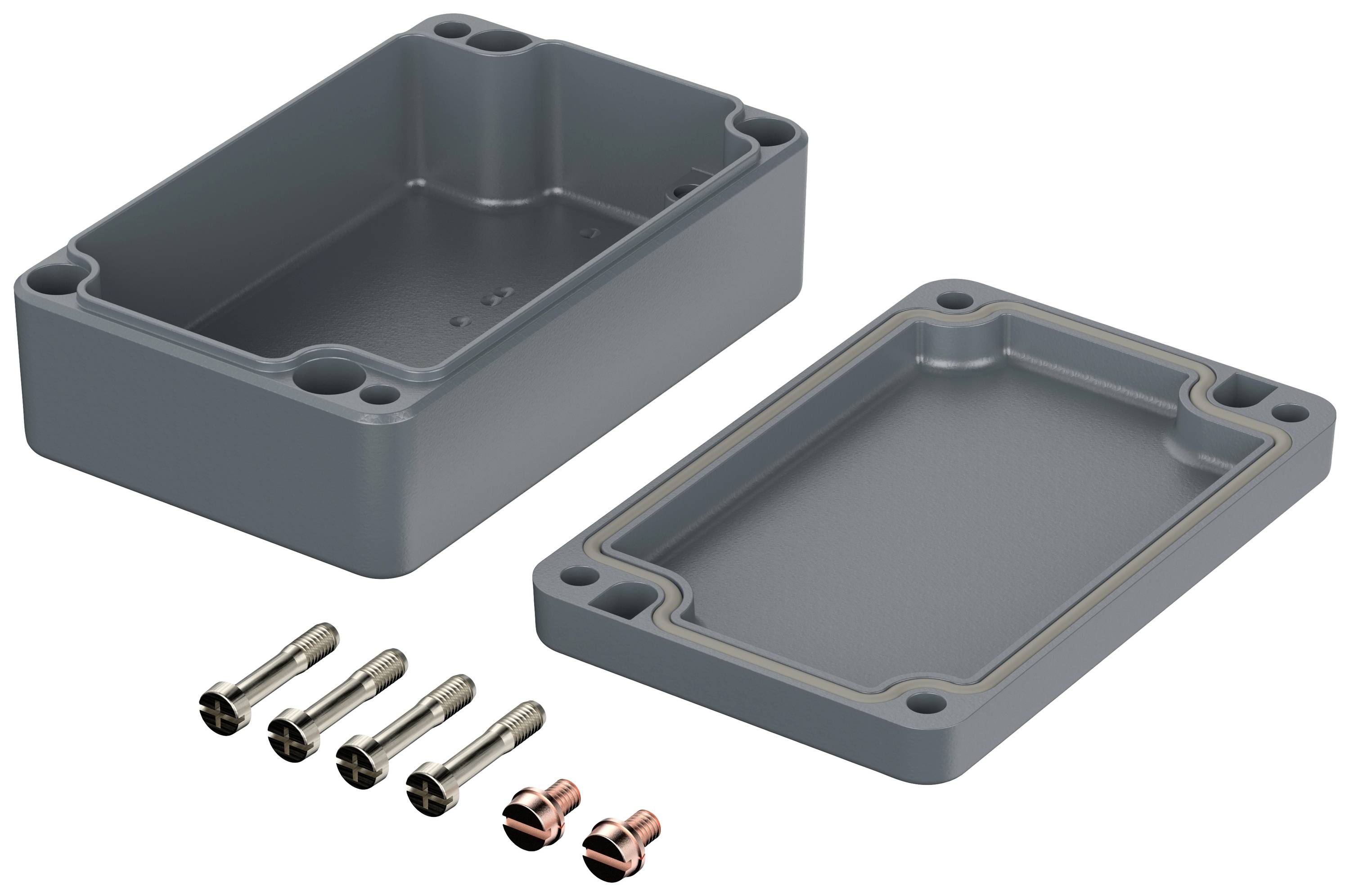

Splash-protected case with screwed in cover seal and captive screws.
Scope of delivery
- Supplied without terminal block.
Hints
Also suitable for wall mounting.
