Bopla Euromas X, XT 111106 7035 07511116 Electronics casing 105 x 105 x 60.10 Acrylonitrile butadiene styrene Grey-white
EAN:
Part number:
Item no:
Product type
Electronics casing
Material
Acrylonitrile butadiene styrene
IP rating
IP66
IP68
IK07
Width
105 mm
Height
60.10 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 17.64
3
5% = € 0.88
€ 16.76
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 17.64 / piece)
€ 17.64
plus VAT.
Only 1 Piece(s) available
Highlights & Details
New industrial housing made of ABS with/without custom-sized wall brackets
Our service for you
Technical specifications
- Temperature resistance --25°C to +70°C.
- Product type
Electronics casing
- Material
Acrylonitrile butadiene styrene
IP66
IP68
IK07
- Factory colour
Grey-white (RAL 7035)
- Length
105 mm
- Width
105 mm
- Height
60.10 mm
- Inside width
96.8 mm
- Inside height
53 mm
- Internal depth
75.8 mm
- Content
1 pc(s)
- Dim
(L x W x H) 105 x 105 x 60.10 mm
- RoHS-compliant
Yes
- Type
Euromas X, XT 111106 7035
Documents & Downloads
Datasheet
Datasheet 2796353 Bopla Euromas X, XT 111106 7035 07511116 Electronics casing 105 x 105 x 60.10 Acrylonitrile butadiene styrene Grey-white
User & Safety Instructions
User & Safety Instructions 2796353 Bopla Euromas X, XT 111106 7035 07511116 Electronics casing 105 x 105 x 60.10 Acrylonitrile butadiene styrene Grey-white
Download
Download 2796353 Bopla Euromas X, XT 111106 7035 07511116 Electronics casing 105 x 105 x 60.10 Acrylonitrile butadiene styrene Grey-white
Download 2796353 Bopla Euromas X, XT 111106 7035 07511116 Electronics casing 105 x 105 x 60.10 Acrylonitrile butadiene styrene Grey-white
Description

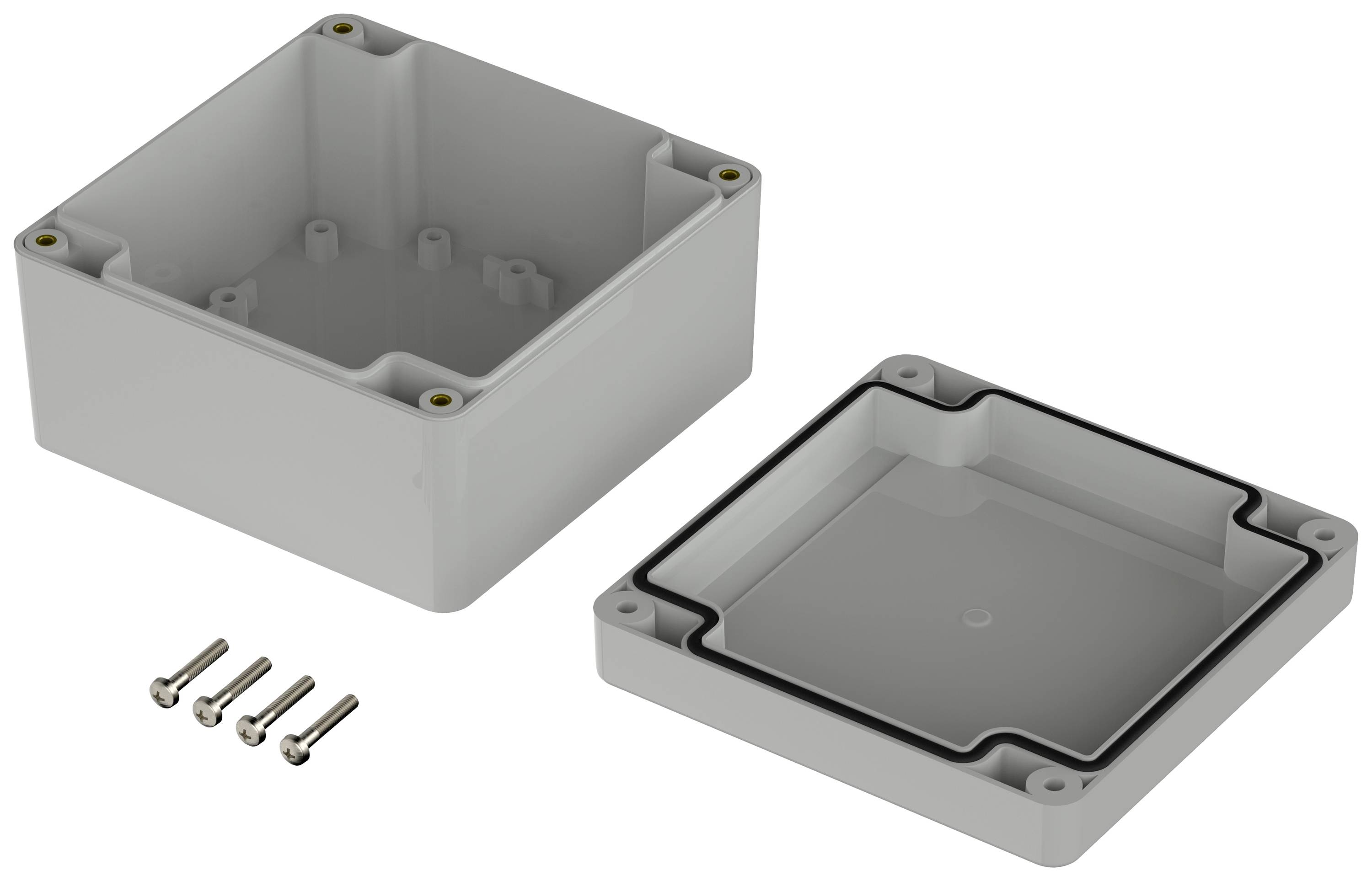

The ABS housing features a foamed gasket and degree of protection IP66/IP68. EUROMAS X casing have a recessed surface for mounting membrane keypads or display windows. The cover screws secured against falling out are screwed into high-quality threaded sockets. Circuit boards can be securely fastened in the base using screw domes. Hue light gray similar RAL 7035 Impact strength IK 07 according to IEC 62262.
This text is machine translated.
This text is machine translated.
Features
- ABS casing materialFoamed in sealing
Scope of delivery
- Upper and lower section, cover screws
