Bopla Euromas X, XT 111108 7035 07511118 Electronics casing 104.80 x 104.80 x 74.70 Acrylonitrile butadiene styrene Grey
EAN:
Part number:
Item no:
Product type
Electronics casing
Material
Acrylonitrile butadiene styrene
IP rating
IP66
IP68
IK07
Width
104.80 mm
Height
74.70 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 18.48
3
5% = € 0.92
€ 17.56
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 18.48 / piece)
€ 18.48
plus VAT.
Highlights & Details
New industrial housing made of ABS with/without custom-sized wall brackets
Our service for you
Technical specifications
- Temperature resistance --25°C to +70°C.
- Product type
Electronics casing
- Material
Acrylonitrile butadiene styrene
IP66
IP68
IK07
- Factory colour
Grey-white (RAL 7035)
- Length
104.80 mm
- Width
104.80 mm
- Height
74.70 mm
- Inside width
95.4 mm
- Inside height
67.6 mm
- Internal depth
74.6 mm
- Content
1 pc(s)
- Dim
(L x W x H) 104.80 x 104.80 x 74.70 mm
- RoHS-compliant
Yes
- Type
Euromas X, XT 111108 7035
Documents & Downloads
Datasheet
Datasheet 2796354 Bopla Euromas X, XT 111108 7035 07511118 Electronics casing 104.80 x 104.80 x 74.70 Acrylonitrile butadiene styrene Grey
User & Safety Instructions
User & Safety Instructions 2796354 Bopla Euromas X, XT 111108 7035 07511118 Electronics casing 104.80 x 104.80 x 74.70 Acrylonitrile butadiene styrene Grey
Download
Download 2796354 Bopla Euromas X, XT 111108 7035 07511118 Electronics casing 104.80 x 104.80 x 74.70 Acrylonitrile butadiene styrene Grey
Download 2796354 Bopla Euromas X, XT 111108 7035 07511118 Electronics casing 104.80 x 104.80 x 74.70 Acrylonitrile butadiene styrene Grey
Description

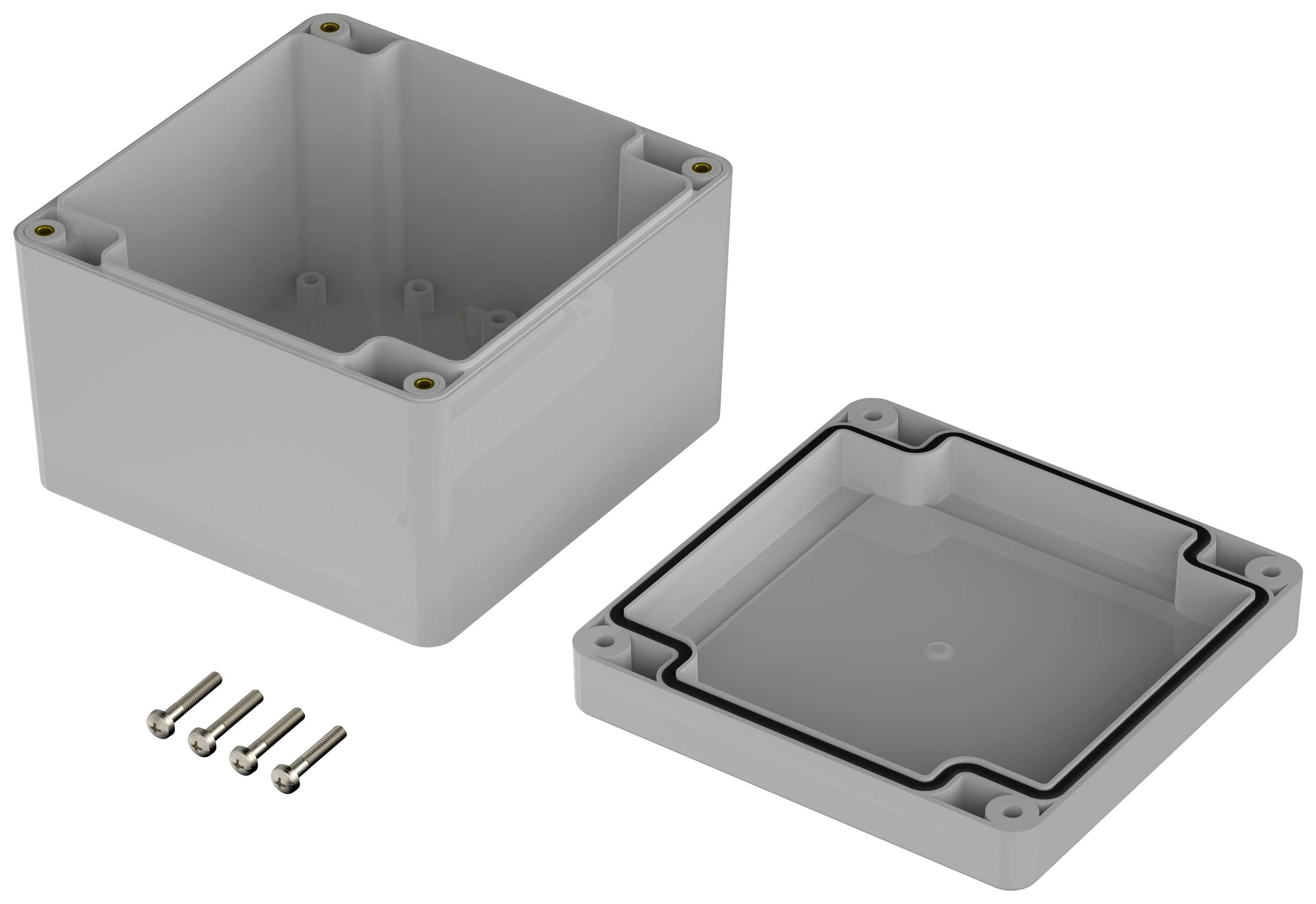

The ABS housing features a foamed gasket and degree of protection IP66/IP68. EUROMAS X casing have a recessed surface for mounting membrane keypads or display windows. The cover screws secured against falling out are screwed into high-quality threaded sockets. Circuit boards can be securely fastened in the base using screw domes. Hue light gray similar RAL 7035 Impact strength IK 07 according to IEC 62262.
This text is machine translated.
This text is machine translated.
Features
- ABS casing materialFoamed in sealing
Scope of delivery
- Upper and lower section, cover screws
