Bopla Euromas X, XT 120805 WL 7035 07812085 Flanged box 120 x 80 x 45.20 Acrylonitrile butadiene styrene Grey-white (RAL
EAN:
Part number:
Item no:
Product type
Flanged box
Material
Acrylonitrile butadiene styrene
IP rating
IP66
IP68
IK07
Width
80 mm
Height
45.20 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 14.28
3
6% = € 0.79
€ 13.49
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 14.28 / piece)
€ 14.28
plus VAT.
Only 8 Piece(s) available
Highlights & Details
New industrial housing made of ABS with/without custom-sized wall brackets
Our service for you
Technical specifications
- Temperature resistance --25°C to +70°C.
- Product type
Flanged box
- Features
Mounting flange
- Material
Acrylonitrile butadiene styrene
IP66
IP68
IK07
- Factory colour
Grey-white (RAL 7035)
- Length
120 mm
- Width
80 mm
- Height
45.20 mm
- Inside width
72.6 mm
- Inside height
38 mm
- Internal depth
92.2 mm
- Content
1 pc(s)
- Dim
(L x W x H) 120 x 80 x 45.20 mm
- RoHS-compliant
Yes
- Type
Euromas X, XT 120805 WL 7035
Documents & Downloads
Datasheet
Datasheet 2796368 Bopla Euromas X, XT 120805 WL 7035 07812085 Flanged box 120 x 80 x 45.20 Acrylonitrile butadiene styrene Grey-white (RAL
User & Safety Instructions
User & Safety Instructions 2796368 Bopla Euromas X, XT 120805 WL 7035 07812085 Flanged box 120 x 80 x 45.20 Acrylonitrile butadiene styrene Grey-white (RAL
Download
Download 2796368 Bopla Euromas X, XT 120805 WL 7035 07812085 Flanged box 120 x 80 x 45.20 Acrylonitrile butadiene styrene Grey-white (RAL
Download 2796368 Bopla Euromas X, XT 120805 WL 7035 07812085 Flanged box 120 x 80 x 45.20 Acrylonitrile butadiene styrene Grey-white (RAL
Description

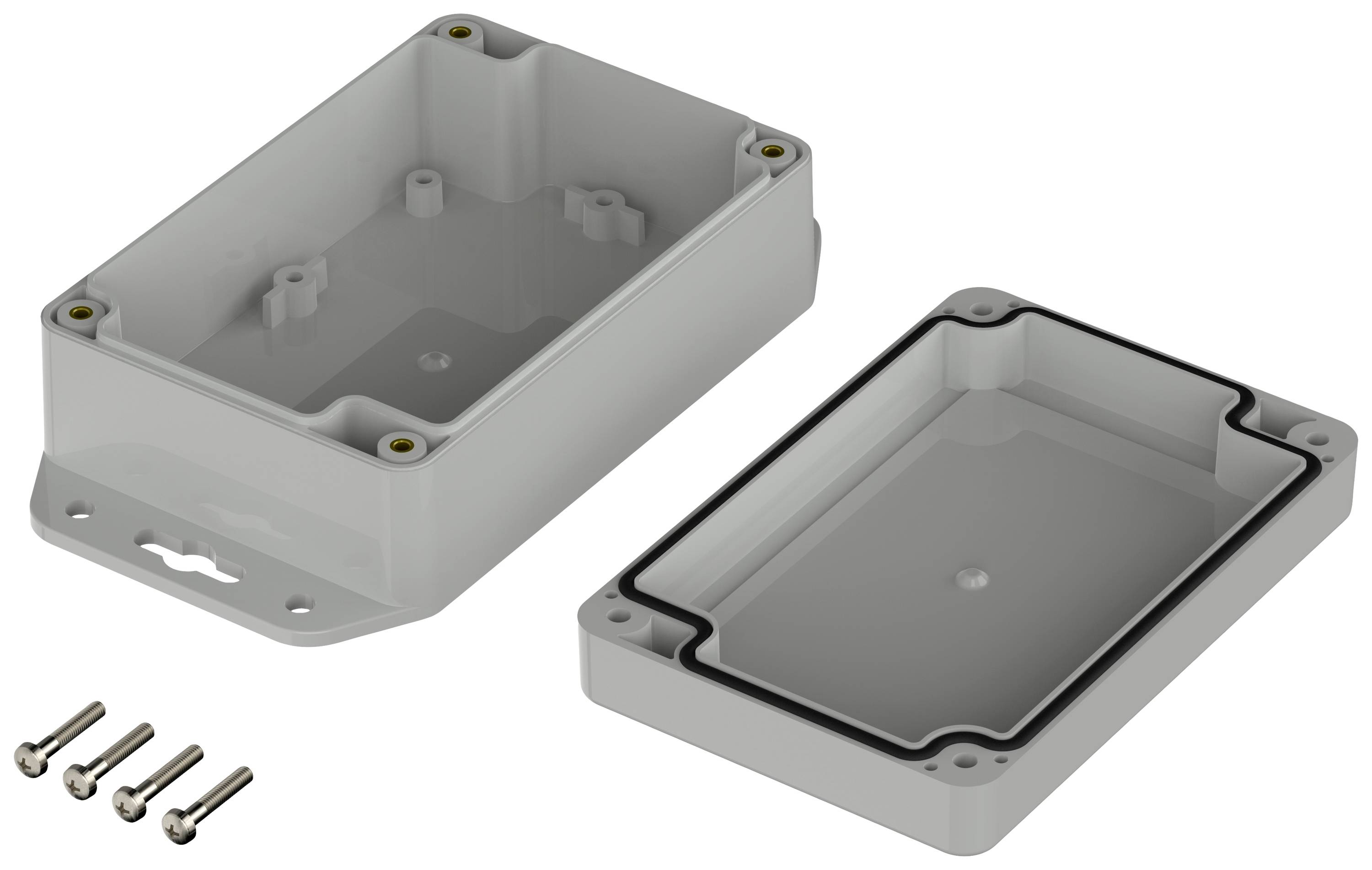

The ABS housing features a foamed gasket and degree of protection IP66/IP68. EUROMAS X casing have a recessed surface for mounting membrane keypads or display windows. The cover screws secured against falling out are screwed into high-quality threaded sockets. Circuit boards can be securely fastened in the base using screw domes. Hue light gray similar RAL 7035 Impact strength IK 07 according to IEC 62262.
This text is machine translated.
This text is machine translated.
Features
- ABS casing materialFoamed in sealing
Scope of delivery
- Upper and lower section, cover screws
