1/2
Bopla Euromas X, XT 211406 7035 07521146 Electronics casing 209.70 x 139.80 x 60 Acrylonitrile butadiene styrene Grey-wh
EAN:
Part number:
Item no:
Product type
Electronics casing
Material
Acrylonitrile butadiene styrene
IP rating
IP66
IP68
IK07
Width
139.80 mm
Height
60 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 26.04
3
4% = € 1.13
€ 24.91
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 26.04 / piece)
€ 26.04
plus VAT.
Only 6 Piece(s) available
Highlights & Details
New industrial housing made of ABS with/without custom-sized wall brackets
Our service for you
Technical specifications
- Temperature resistance --25°C to +70°C.
- Product type
Electronics casing
- Material
Acrylonitrile butadiene styrene
IP66
IP68
IK07
- Factory colour
Grey-white (RAL 7035)
- Length
209.70 mm
- Width
139.80 mm
- Height
60 mm
- Inside width
131.6 mm
- Inside height
52.9 mm
- Internal depth
180.6 mm
- Content
1 pc(s)
- Dim
(L x W x H) 209.70 x 139.80 x 60 mm
- RoHS-compliant
Yes
- Type
Euromas X, XT 211406 7035
Documents & Downloads
Datasheet
Datasheet 2796362 Bopla Euromas X, XT 211406 7035 07521146 Electronics casing 209.70 x 139.80 x 60 Acrylonitrile butadiene styrene Grey-wh
User & Safety Instructions
User & Safety Instructions 2796362 Bopla Euromas X, XT 211406 7035 07521146 Electronics casing 209.70 x 139.80 x 60 Acrylonitrile butadiene styrene Grey-wh
Download
Download 2796362 Bopla Euromas X, XT 211406 7035 07521146 Electronics casing 209.70 x 139.80 x 60 Acrylonitrile butadiene styrene Grey-wh
Download 2796362 Bopla Euromas X, XT 211406 7035 07521146 Electronics casing 209.70 x 139.80 x 60 Acrylonitrile butadiene styrene Grey-wh
Description

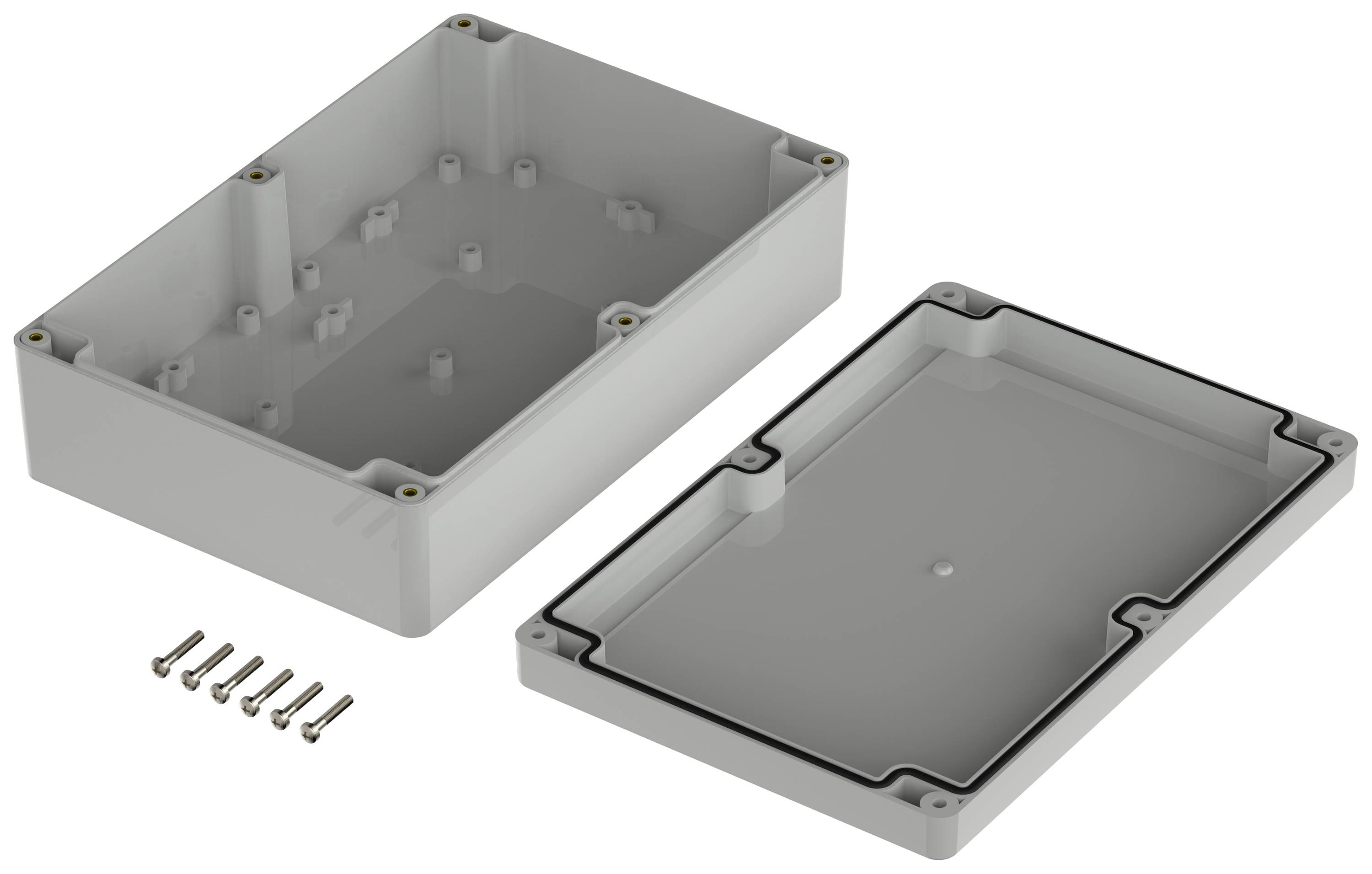

The ABS housing features a foamed gasket and degree of protection IP66/IP68. EUROMAS X casing have a recessed surface for mounting membrane keypads or display windows. The cover screws secured against falling out are screwed into high-quality threaded sockets. Circuit boards can be securely fastened in the base using screw domes. Hue light gray similar RAL 7035 Impact strength IK 07 according to IEC 62262.
This text is machine translated.
This text is machine translated.
Features
- ABS casing materialFoamed in sealing
Scope of delivery
- Upper and lower section, cover screws
