Bopla NGS 9410 UNINORM-EINSCHUBGEH. Console-mounted casing 96 x 48 x 109.5 x 102.5 Plastic Black (RAL 9005) 1 pc(s) Piec
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Console-mounted casing
Material
Plastic
IP rating
IP40
Width
48 mm
Datasheet (PDF)
Total (€ 16.80 / piece)
€ 25.20
-33 %
€ 16.80
plus VAT.
14-day return policy included
Highlights & Details
Our service for you
Technical specifications
- Packaging type
Piece
- Product type
Console-mounted casing
- Material
Plastic
IP40
- Factory colour
Black (RAL 9005)
- Length
96 mm
- Width
48 mm
- Height
109.5 mm
- Dimensions
96 x 48 x 102.5 mm
- Weight
93 g
- Content
1 pc(s)
- Type
NGS 9410 UNINORM-EINSCHUBGEH.
- Dim
(L x W x H) 96 x 48 x 109.5 mm
- RoHS-compliant
Yes
- Manufacturer part #
17941001.MT2
- Depth
102.5 mm
- Internal depth
86.2 mm
- Inside height
103 mm
- Inside width
38.8 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2384303 Bopla NGS 9410 UNINORM-EINSCHUBGEH. Console-mounted casing 96 x 48 x 109.5 x 102.5 Plastic Black (RAL 9005) 1 pc(s) Piec
User & Safety Instructions
User & Safety Instructions 2384303 Bopla NGS 9410 UNINORM-EINSCHUBGEH. Console-mounted casing 96 x 48 x 109.5 x 102.5 Plastic Black (RAL 9005) 1 pc(s) Piec
Download
Download 2384303 Bopla NGS 9410 UNINORM-EINSCHUBGEH. Console-mounted casing 96 x 48 x 109.5 x 102.5 Plastic Black (RAL 9005) 1 pc(s) Piec
Download 2384303 Bopla NGS 9410 UNINORM-EINSCHUBGEH. Console-mounted casing 96 x 48 x 109.5 x 102.5 Plastic Black (RAL 9005) 1 pc(s) Piec
Description
Control panel installation housing according to DIN IEC 61555
This text is machine translated.
This text is machine translated.

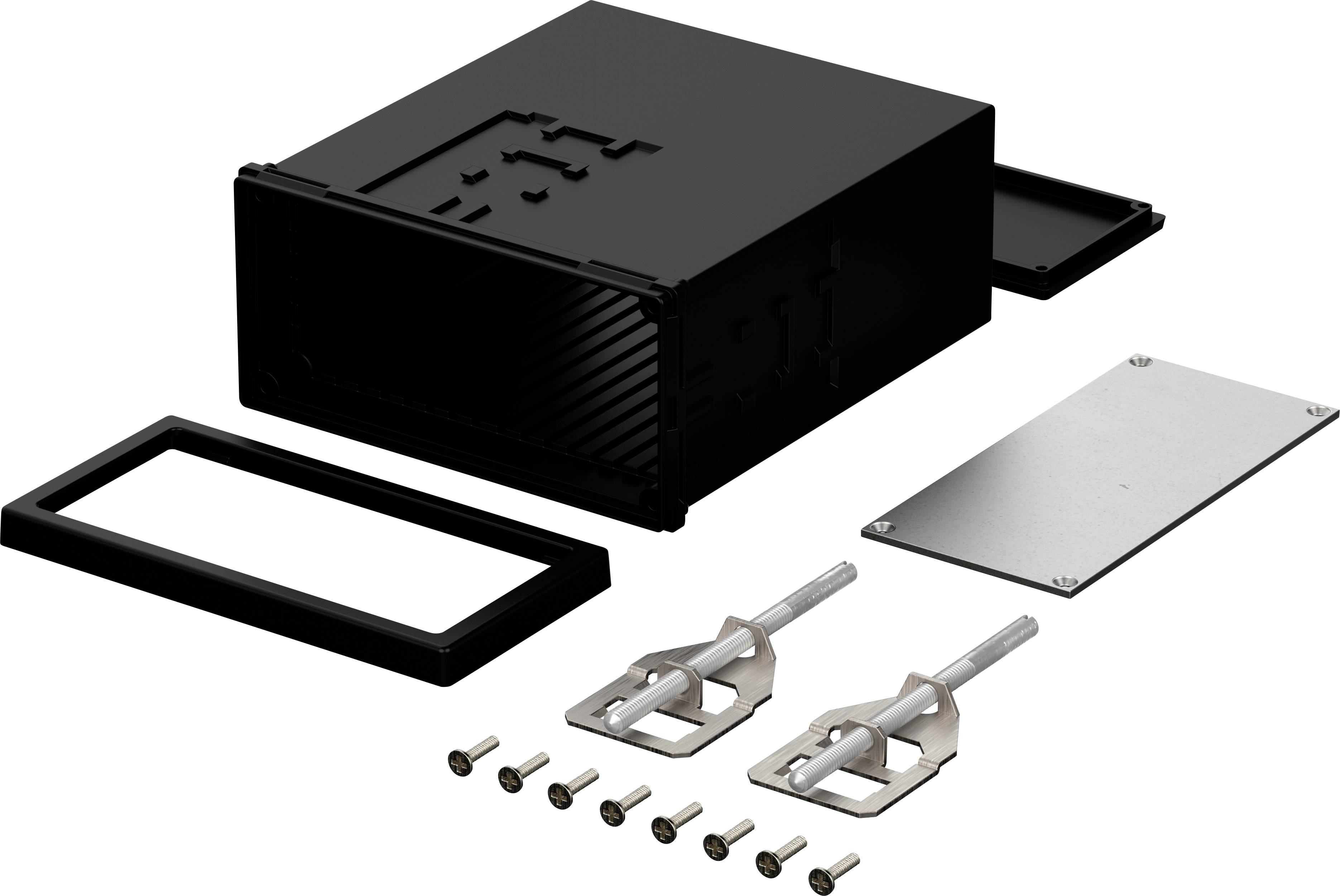

Scope of delivery
- 1 x housing, 1 aluminum front plate, 2 x screw-type lambers
Hints
The screw clamp is placed on the housing from the rear of the control panel. The housing is then firmly pressed against the control panel wall by means of the integrated screw.
