Buy Bopla REGLOCARD RCP 350 F Wall-mount enclosure 296 x 281 x 137.5 Acrylonitrile butadiene styrene Light grey 1 pc(s)

A grey electrical enclosure with multiple openings on the front and a raised area on the top surface.

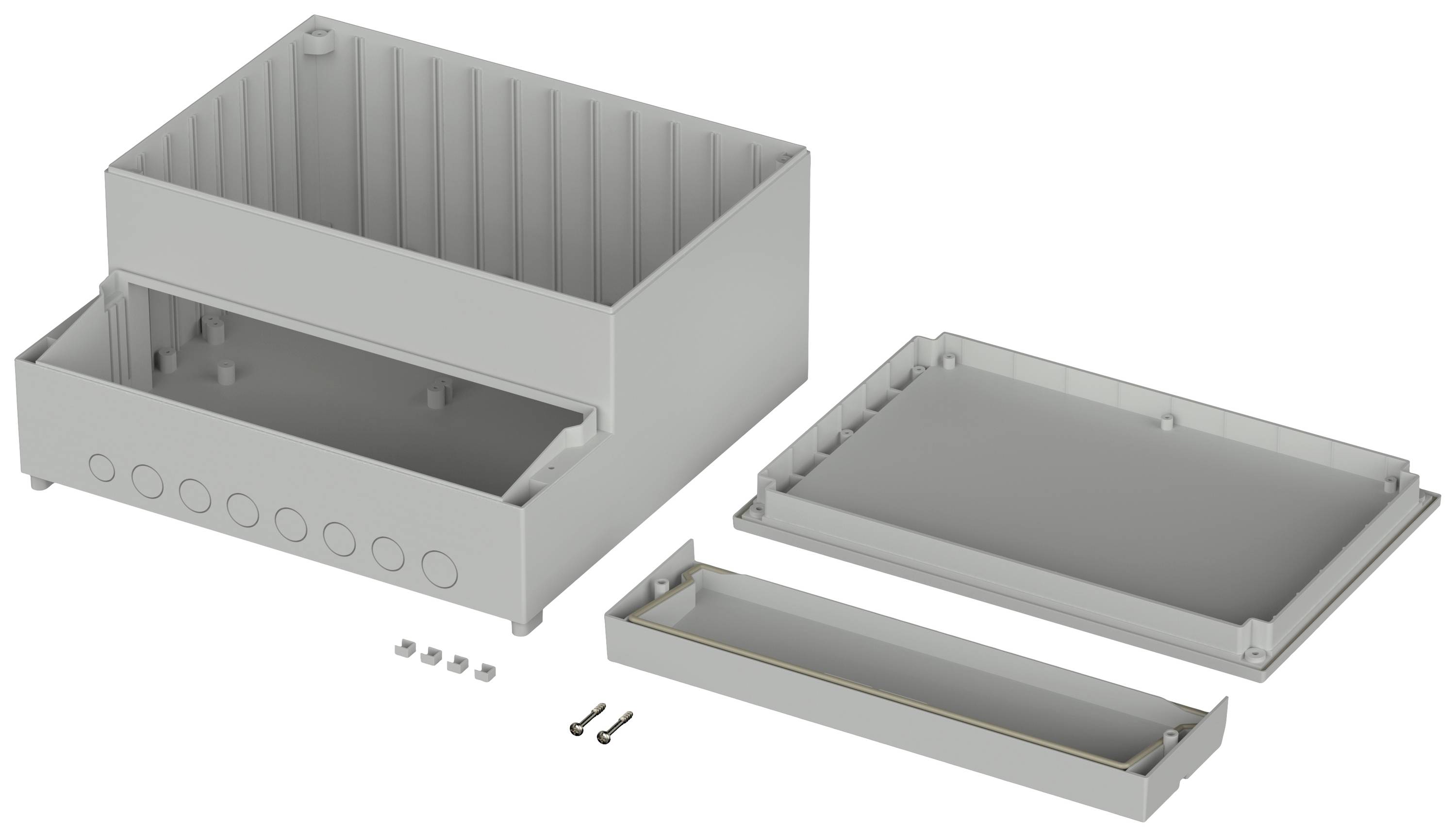

Housing assembly kit consisting of a main housing, removable lid, and small box, illustrated with screws.

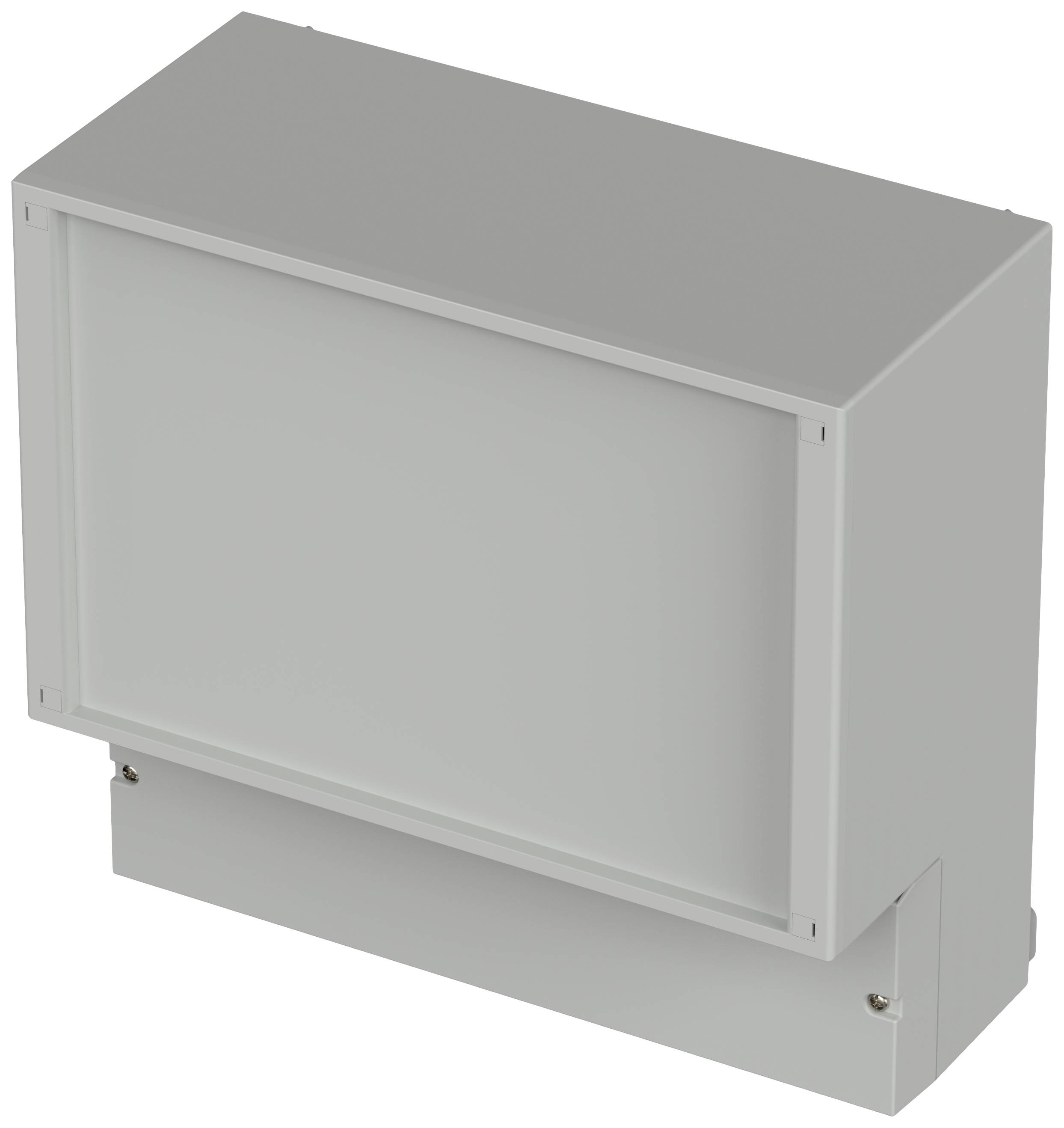

A rectangular, grey electronics enclosure with a removable lid, suitable for wall mounting, demonstrates a robust construction for various applications.

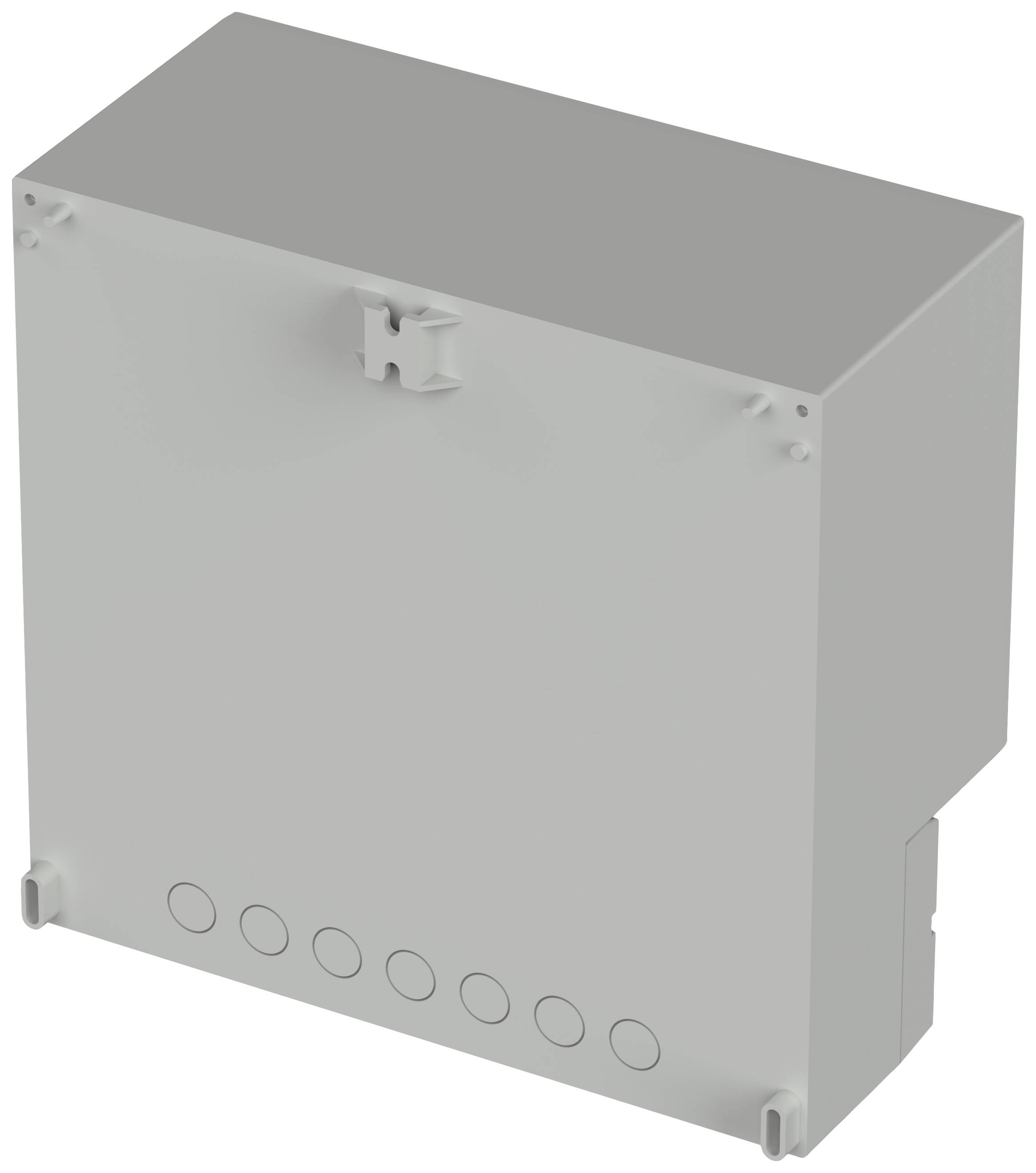

Grey, rectangular enclosure with multiple openings on the underside, used for electrical installations.

1/4

Product type

Wall-mount enclosure

Material

Acrylonitrile butadiene styrene

IP rating

IP54

Width

296 mm

Height

281 mm

Datasheet (PDF)

Fast track dispatch on Wed, 5 Aug

4 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 70.58 / piece)

€ 70.58

plus VAT.

Only 4 Piece(s) available

Report legal concerns

Highlights & Details

Bopla REGLOCARD RCP 350 F Wall-mount enclosure 296 x 281 x 137.5 Acrylonitrile butadiene styrene Light grey 1 pc(s)

Our service for you

Technical specifications

Product type: Wall-mount enclosure

Material: Acrylonitrile butadiene styrene

: IP54

Factory colour: Light grey

Type: Without lid

Width: 296 mm

Height: 281 mm

Content: 1 pc(s)

Type: REGLOCARD RCP 350 F

Dim: (W x H x D) 296 x 281 x 137.5 mm

RoHS-compliant: Yes

Manufacturer part #: 41350609

Depth: 137.5 mm

Material (details): Polystyrene

Type: RCP 350F

Documents & Downloads

Datasheet

Datasheet 535101 Bopla REGLOCARD RCP 350 F Wall-mount enclosure 296 x 281 x 137.5 Acrylonitrile butadiene styrene Light grey 1 pc(s)

User & Safety Instructions

User & Safety Instructions 535101 Bopla REGLOCARD RCP 350 F Wall-mount enclosure 296 x 281 x 137.5 Acrylonitrile butadiene styrene Light grey 1 pc(s)

Download

Download 535101 Bopla REGLOCARD RCP 350 F Wall-mount enclosure 296 x 281 x 137.5 Acrylonitrile butadiene styrene Light grey 1 pc(s)

Description

The case has die-cast grooves for sliding in cards vertically and horizontally, installation lobes and in the clamping area, screw-on points for the mounting rails. Attachment for wall mounting (clamping area either facing downwards or upwards) outside the sealing chamber. Predetermined breaking points breaks for PG cable entries in the terminal area. Lead-sealable
