Bopla UM 32018 L SET Desktop case (L x W x H) 157.50 x 198.90 x 108 mm Acrylonitrile butadiene styrene Grey-white (RAL 7
EAN:
Part number:
Item no:
Material
Acrylonitrile butadiene styrene
IP rating
IP30
Width
198.90 mm
Height
108 mm
Content
1 Set
Datasheet (PDF)
Number
Total (€ 68.90 / piece)
€ 68.90
plus VAT.
Highlights & Details
UM 32018 L ULTRAMAS SET
- Base set for vertical or horizontal useFront plates, 2 mm, aluminum, anodized and natural colorsHue enclosure light gray similar RAL 7035, flap and feet agate gray similar. RAL 7038PROTECTION CLASS IP30 / DIN EN 60529
Our service for you
Technical specifications
- Internal dimensions (LxWxH) 129.5 x 187.3 x 92.2 mm
- Material
Acrylonitrile butadiene styrene
IP30
- Factory colour
Grey-white (RAL 7035)
- Front panel size
2 mm
- Length
157.50 mm
- Width
198.90 mm
- Height
108 mm
- Content
1 Set
- Dim
(L x W x H) 157.50 x 198.90 x 108 mm
- RoHS-compliant
Yes
- Type
UM 32018 L SET
- Product type
Desktop case
Documents & Downloads
Datasheet
Datasheet 2634518 Bopla UM 32018 L SET Desktop case (L x W x H) 157.50 x 198.90 x 108 mm Acrylonitrile butadiene styrene Grey-white (RAL 7
User & Safety Instructions
User & Safety Instructions 2634518 Bopla UM 32018 L SET Desktop case (L x W x H) 157.50 x 198.90 x 108 mm Acrylonitrile butadiene styrene Grey-white (RAL 7
Download
Download 2634518 Bopla UM 32018 L SET Desktop case (L x W x H) 157.50 x 198.90 x 108 mm Acrylonitrile butadiene styrene Grey-white (RAL 7
Download 2634518 Bopla UM 32018 L SET Desktop case (L x W x H) 157.50 x 198.90 x 108 mm Acrylonitrile butadiene styrene Grey-white (RAL 7
Description

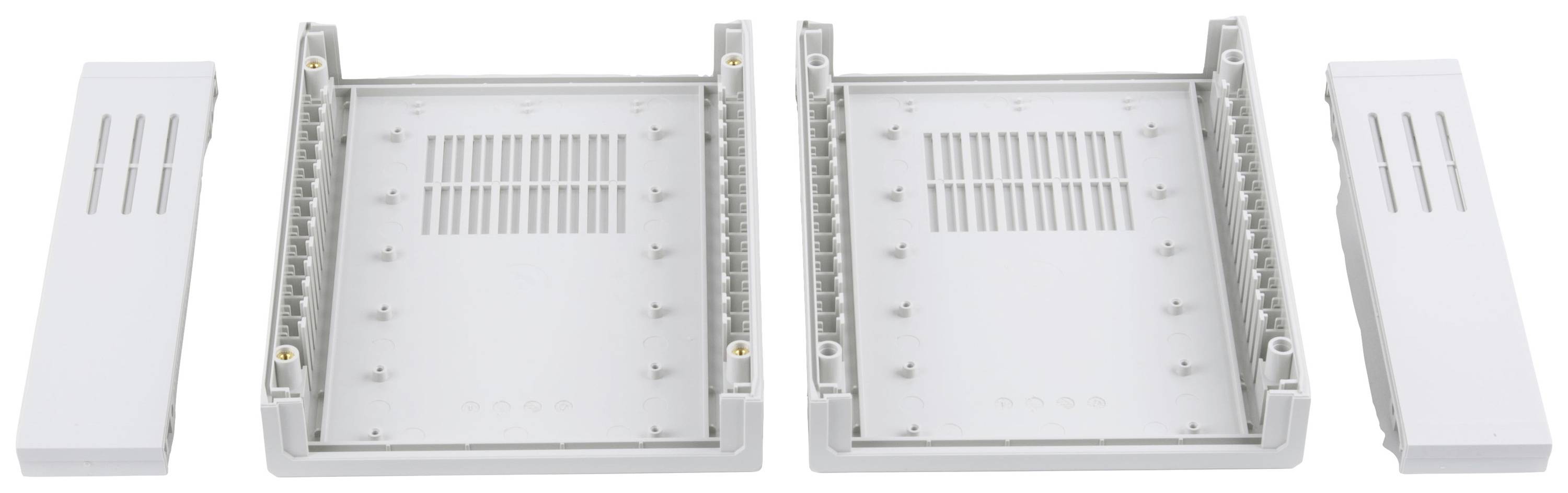

The classical table case system is made from two plastic half-shells made from ABS and front plates made from aluminum. All housing parts are screwed together with high-quality brass threaded inserts. Permanently reliable opening and closing is ensured. In the interior there are versatile recordings for conducting boards (horizontal and vertical).
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x housing
- 1 x body set
- 2 x aluminum front plates
- 1 set of mounting feet
