Bosch 7739618575 CS7400i AW 5 ORM Airt to water heat pump Energy efficiency rating (calc) A++ (A+++ - D)
EAN:
Part number:
Item no:
Highlights & Details
CS7400i AW 5 ORM, external, compact module
- Air/water heat pump crimp
Technical specifications
- Type formula: CS7400iAW 5 ORM-S
- Class for the seasonal average of room heating energy efficiency (55°C inlet temperature): A++
- Energy efficiency classes: A+++ -> D.
- Seasonal room heating energy efficiency under average climatic conditions (55°C flow temperature): 133 %
- Rated heat output under average climatic conditions (55°C flow temperature): 4 kW
- Sound power level outdoors: 50 dB (A)
- Class for the water heating energy efficiency: A.
- Energy efficiency class range A+ -> F
- Warm water heating energy efficiency at average. Climate: 100%
- Load profile: L
- Environmental note: Contains fluorinated greenhouse gases
- Coolant type: R410A
- Global warming potential of refrigerant (GWP): 2088 kgCO2-EQ
- Refrigerant capacity 1.75 kg
- CO2 equivalent of refrigerant capacity: 3.654 toCO2-EQ
- Cold loop design: Hermetically closed
- Heating power +7/35°C according to EN 14511: 2.8 kW
- COP +7/35°C ACCORDING TO EN 14511: 5 -
- Heating power +2 /35 °C according to EN 14511: 2.5 kW
- COP +2/35°C ACCORDING TO EN 14511: 4.3 -
- Heating power -7/35°C according to EN 14511: 4.2 kW
- COP -7/35°C ACCORDING TO EN 14511: 3 -
- Cooling performance in case of A35/W7 according to EN 14511: 4.44 kW
- EER at A35/W7 according to EN 14511: 2.4 -
- Air volume flow nom.: 3400 m³/h.
- Min. Outdoor air temperature -20°C
- Outdoor air temperature max. 35 °C
- Electrical connection 230 V.
- Electrical frequency 50 Hz
- 16 A fuse
- R410A refrigerant quantity: 1.75 kg
- Product type
Airt to water heat pump
- Operating voltage
230 V
- Width
940 mm
- Height
1380 mm
- Depth
600 mm
- Weight
248.12 kg
A+++ (A+++ - D)
A++ (A+++ - D)
4 kWh/year
5 kWh/year
- Sound pressure level (outdoors)
50 dBa
- Sound pressure level (indoors)
25 dBa
A++ (A+++ - D)
- Factory colour
White
- Coolant type
R410A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2996664 Bosch 7739618575 CS7400i AW 5 ORM Airt to water heat pump Energy efficiency rating (calc) A++ (A+++ - D)
User & Safety Instructions
User & Safety Instructions 2996664 Bosch 7739618575 CS7400i AW 5 ORM Airt to water heat pump Energy efficiency rating (calc) A++ (A+++ - D)
Description

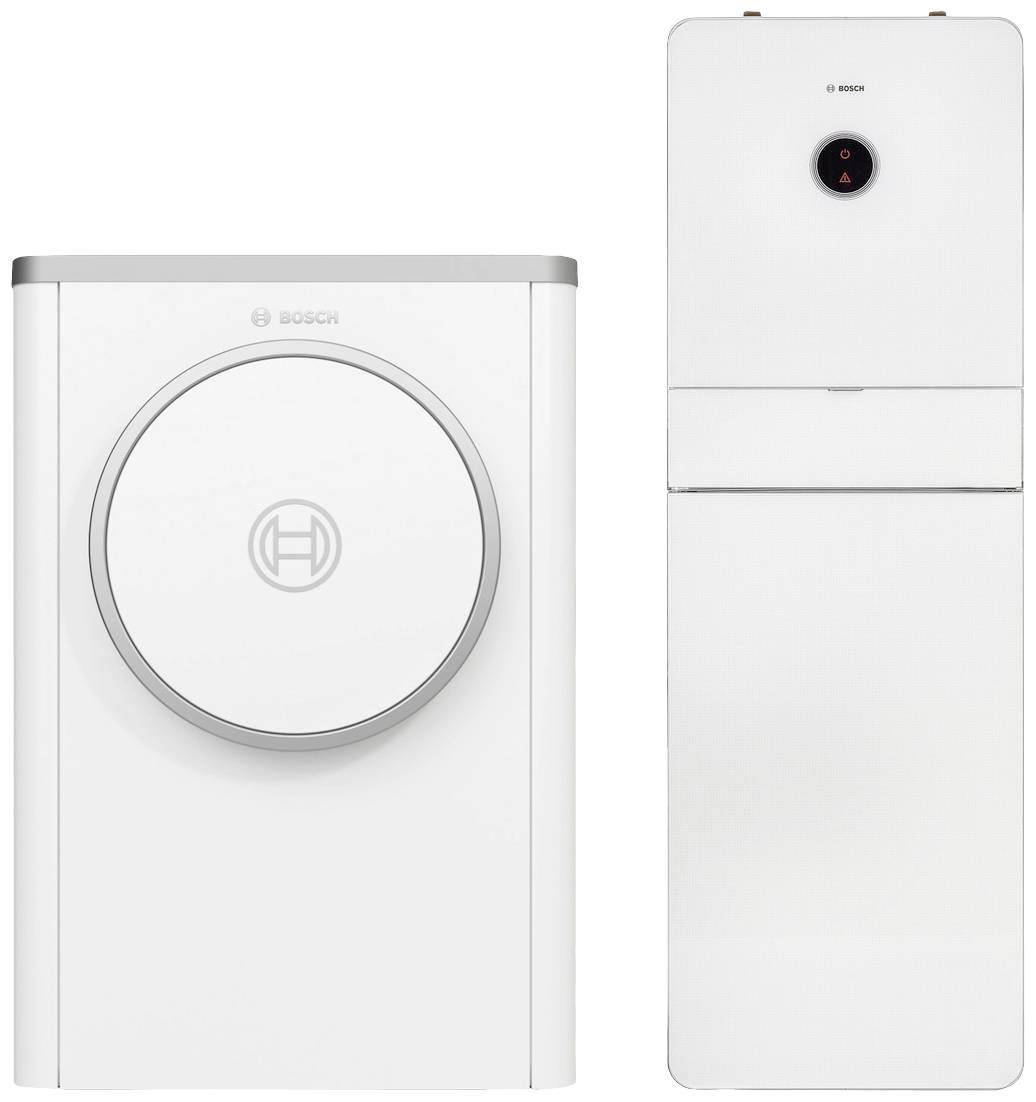

Air-to-water heat pump COMPRESS 7400i AW consisting of externally mounted heat pump unit and internal unit
Optimized for monoenergetic operation
This text is machine translated.
Optimized for monoenergetic operation
This text is machine translated.
Features
- Extremely quiet thanks to active noise deflection of the integrated sound diffuser
- Whisper-mode possible
- Fast, simple and space-saving installation
- Easy access to the components makes it especially service friendly
- Connections at the rear
- Thermal disinfection
- Flow temperature controlled
- Energetically optimized defrosting process
- Heat pump unit consisting of: Inverter operated double roller piston compressor, large-area coated evaporator with protective grille, housing made of EPP, 2 electronic expansion valves
- Internal unit AWM consists of: Operating unit HPC 400, hot water storage, electric additional heater, expansion tank, circulation pump, Safety valve and bypass
Scope of delivery
- Air/water heat pump Compression - CS7400i AW 5 ORM, external, compact module
- Warm water tank 190 l
- Electric additional heater: 9 kW
- Expansion tank 10 l
