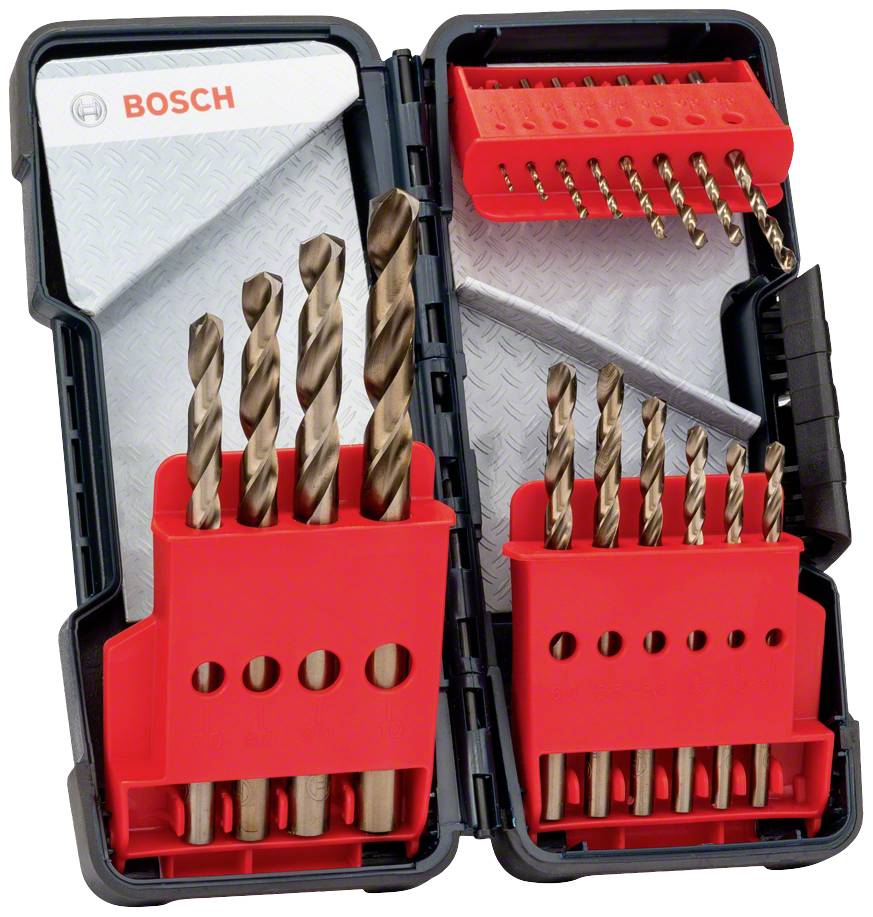

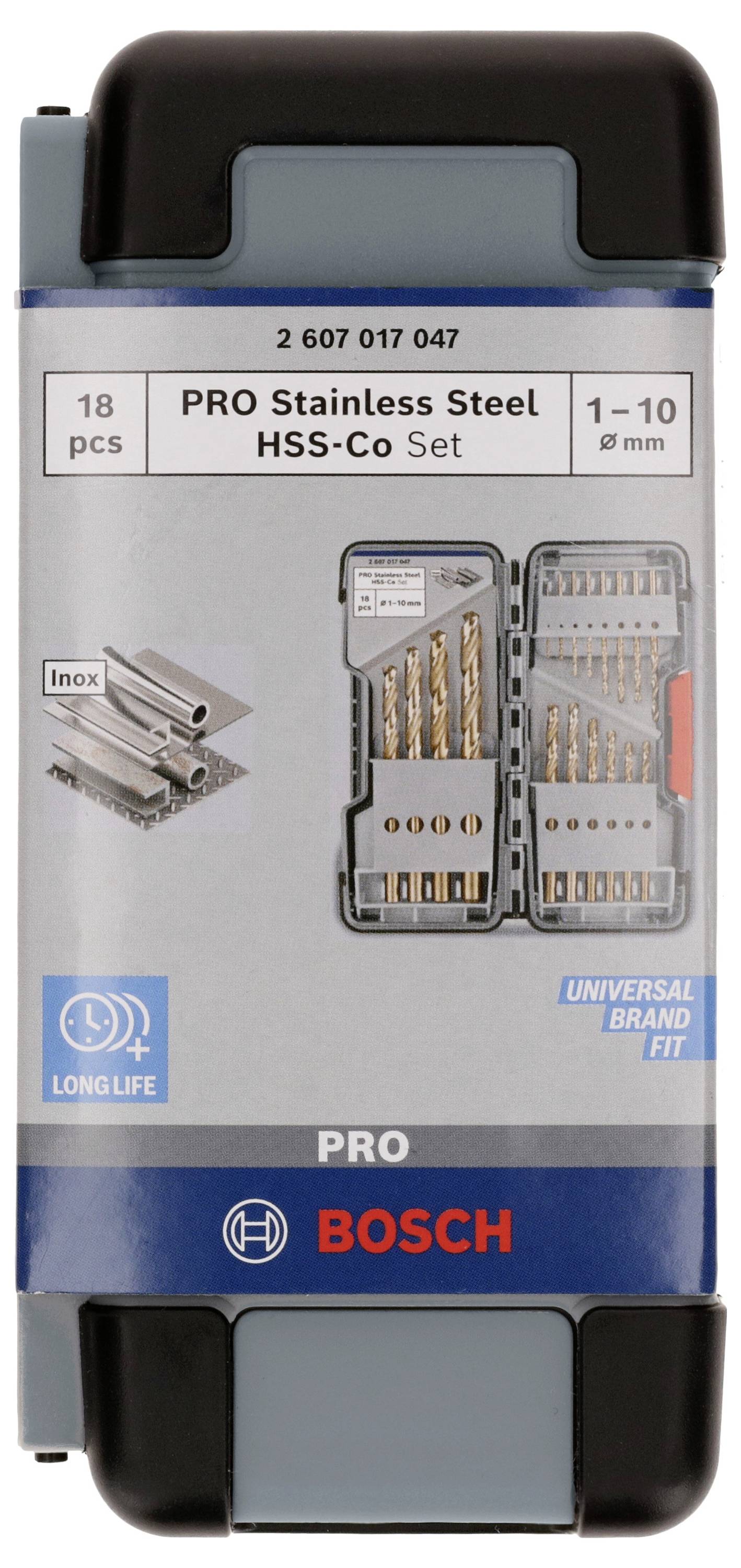

Bosch Accessories 2607017047 HSS-Co Metal twist drill bit set 18-piece 1 mm, 1.5 mm, 2 mm, 2.5 mm, 3 mm, 3.5 mm, 4 mm, 4
EAN:
Part number:
Item no:
Product type
Metal twist drill bit set
Drill hole Ø
1 mm
1.5 mm
2 mm
2.5 mm
3 mm
3.5 mm
4 mm
4.5 mm
5 mm
5.5 mm
6 mm
7 mm
8 mm
9 mm
10 mm
Content
1 Set
Material
HSS-Co
Material suitability
Metal
Highlights & Details
HSS-co metal drill sets DIN338
- Long life when drilling stainless steel
- Long life when drilling stainless steel
- Cobalt alloy and made of fully polished HSS steel for wear resistance and heat resistance
- Two cutting edges / spiral grooves remove chips quickly, therefore an additional longer life
- Manufactured in accordance with DIN 338, drill type N (small side chip angle) with peak angle 135 degrees and diameter tolerance h8
Technical specifications

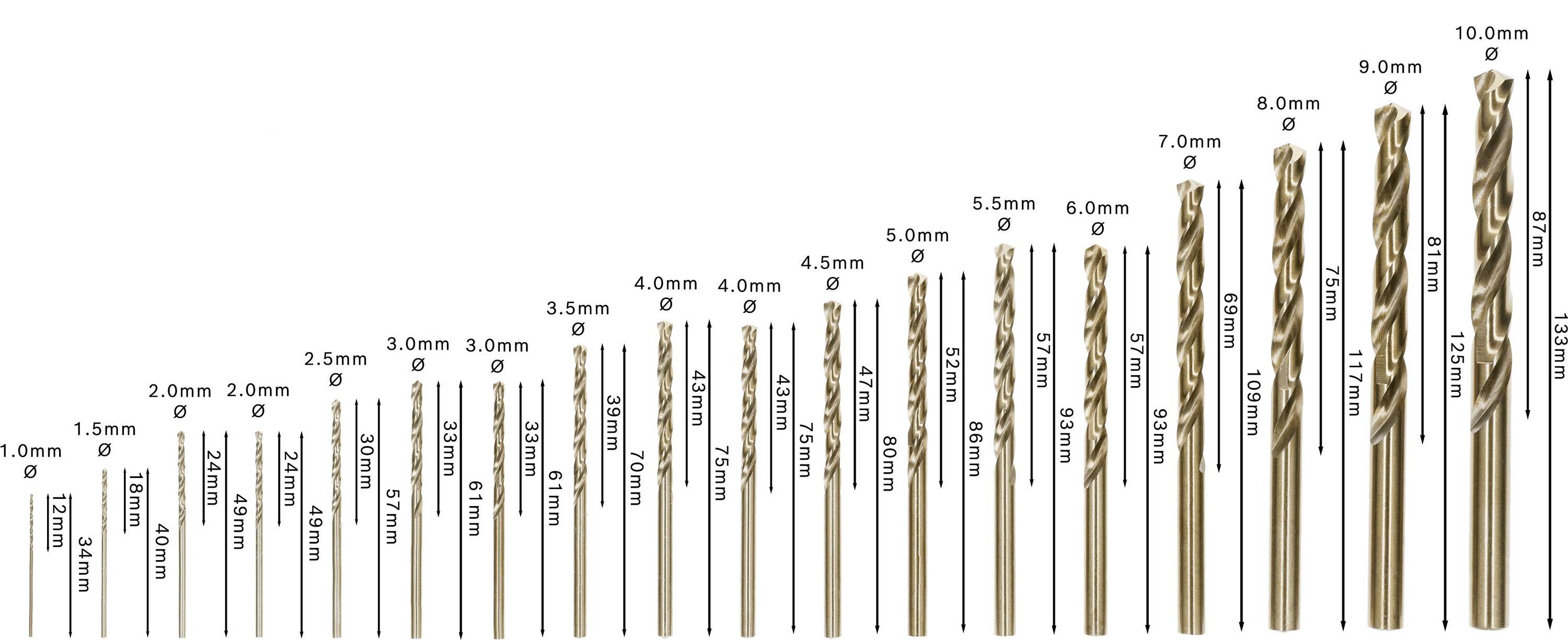

- Working length mm:12; 18; 24; 24; 30; 33; 33; 39; 43; 43; 47; 52; 57; 57; 69; 75; 81; 87
- Total length mm:34; 40; 49; 49; 57; 61; 61; 70; 75; 75; 80; 86; 93; 93; 109; 117; 125; 133
- Product type
Metal twist drill bit set
- DIN standard
DIN 338
- Drill hole Ø
1 mm
1.5 mm
2 mm
2.5 mm
3 mm
3.5 mm
4 mm
4.5 mm
5 mm
5.5 mm
Show more
- Tip angle
135°
- Content
1 Set
- Material
HSS-Co
- Material suitability
Metal
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2998482 Bosch Accessories 2607017047 HSS-Co Metal twist drill bit set 18-piece 1 mm, 1.5 mm, 2 mm, 2.5 mm, 3 mm, 3.5 mm, 4 mm, 4
Description
Long life - the HSS-Co spiral drill has a long life when drilling stainless steel. This extended life is provided by the metal alloy with 5% cobalt content and the fully polished HSS steel with excellent surface quality, wear resistance and heat protection. The two cutting edges and two spiral grooves remove the material quickly and extend the life. This drill bits alloyed and unalloyed steel, stainless steel, cast iron, cast steel and acid and heat-resistant steel. This drill bits alloyed and unalloyed steel, stainless steel, cast iron, cast steel and acid and heat-resistant steel. The shaft is cylindrical (the shaft diameter corresponds to the drill diameter). It is used with drill stands and drill screwdrivers. The set offers good overview, secure storage and transport in a practical ProBox. Cylindrical shaft is suitable for the drill chuck with the toothed rim chuck.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x 1 mm
- 1x 1.5 mm
- 2x 2 mm
- 1x 2.5 mm
- 2x 3 mm
- 1x 3.5 mm
- 2x 4 mm
- 1x 4.5 mm
- 1x 5 mm
- 1x 5.5 mm
- 1x 6 mm
- 1x 7 mm
- 1x 8 mm
- 1x 9 mm
- 1x 10 mm
System requirements
- Cylindrical shaft
